EE-SX301 by omron electronics
Image is representational - see mfr. specs
DATA SHEET

EE-SX301

Omron Electronics

Photointerrupter Transmissive 3.4mm Photologic, Open Collector 5-Pin

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Omron Electronics
Part No:
EE-SX301
RoHS:
Yes
HTS:
8541408000
COO:
JP
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
200
Dimension:
11 x 8 x 9.7 mm
Peak Wavelength:
N/A
Supplier Temperature Grade:
N/A
Maximum Current Transfer Ratio:
N/A
Maximum Rise Time:
N/A
Maximum Collector Current:
16 mA
Number of Channels per Chip:
1
Operating Temperature:
-40 to 75 °C
Pin Count:
5
Maximum Power Dissipation:
250 mW
Maximum Reverse Voltage:
4 V
Packaging:
N/A
Mounting:
Through Hole
Gap Width:
3.4 mm
Slit Width:
0.5 mm
Maximum Collector Emitter Voltage:
N/A
Family:
EE-SX301
Maximum Fall Time:
N/A
Pin_Count:
5
Maximum Forward Current:
50 mA
Supplier_Package:
N/A
Maximum Collector-Emitter Voltage:
N/A
Output Device:
Photologic, Open Collector10299
Type:
Transmissive10309
Supplier Package:
N/A
Life Cycle:
Discontinued & Replaced
The EE-SX398 transmissive photomicrosensor incorporates an IC chip with a built-in detector element and amplifier. Operating temperature range is from -40°C to 75°C.
Search Keywords:
EESX301
  This product is not in stock and cannot be back-ordered
MOQ for out of Stock Qty:
50

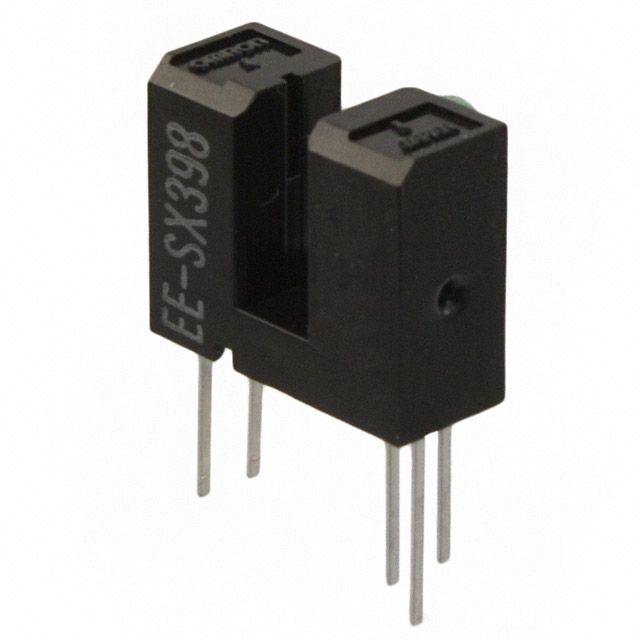

RECOMMENDED REPLACEMENT
EE-SX398
EE-SX398
VIEW PRODUCT
