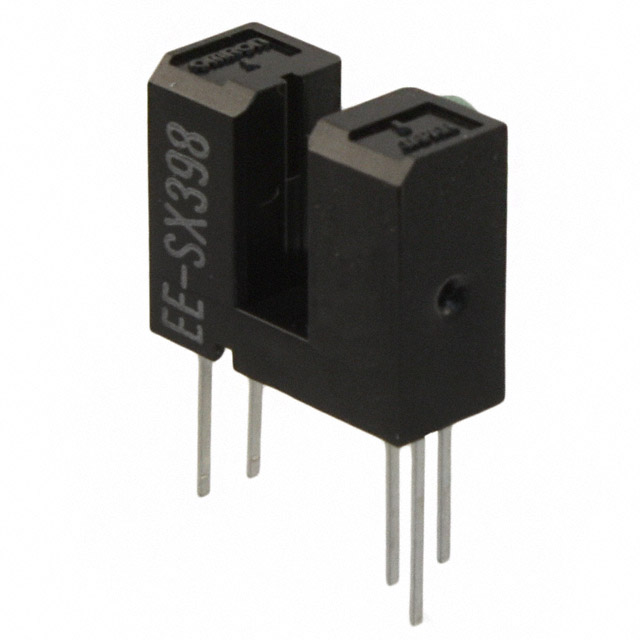

EE-SX398 by omron electronics
Image is representational - see mfr. specs
DATA SHEET

EE-SX398

Omron Electronics

Optical Sensor - 0.118" (3mm) Distance - Through-Beam - NPN Open Collector/Dark-ON Output Configuration - 3.2mA, 4.5V to 16V Supply - PCB Mount.

RoHS Compliant
Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Omron Electronics
Part No:
EE-SX398
RoHS:
Yes
HTS:
8541498000
COO:
JP
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
500
Maximum Fall Time:
N/A
Dimension:
12.2 x 5 x 10 mm
Mounting:
Through Hole
Gap Width:
3 mm
Number of Channels per Chip:
1
Maximum Reverse Voltage:
4 V
Maximum Rise Time:
N/A
Packaging:
N/A
Operating Temperature:
-40 to 75 °C
Maximum Collector Emitter Voltage:
N/A
Output Device:
Photologic, Open Collector
Supplier Temperature Grade:
N/A
Maximum Forward Current:
15 mA
Supplier Package:
N/A
Slit Width:
0.5 mm
Type:
Transmissive
Maximum Power Dissipation:
250 mW
Maximum Collector Current:
16 mA
Maximum Current Transfer Ratio:
N/A
Peak Wavelength:
N/A
Family:
EE-SX398
Pin Count:
5
The EE-SX398 transmissive photomicrosensor incorporates an IC chip with a built-in detector element and amplifier. Operating temperature range is from -40°C to 75°C.
Search Keywords:
EESX398
IN STOCK: 0
Minimum Order Quantity:
10
Factory Lead-Time
26 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
10
$2.126
$21.260
100
$1.428
$142.800
250
$1.412
$353.000
500
$1.405
$702.500
1,000
$1.371
$1,371.000
2,500
$1.337
$3,342.500
5,000
$1.330
$6,650.000
7,500 +
$1.323
$9,922.500
Suppliers Standard Package
