GS120A24-R7B by mean well
Image is representational - see mfr. specs
DATA SHEET

GS120A24-R7B

Mean Well

AC/DC Adapter - Desktop - 120 Watts: 24V @ 5A - IEC 320-C14 Inlet - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Mean Well
Part No:
GS120A24-R7B
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Input Connector Type:
IEC 320-C14
Line Regulation:
1.00 %
Typical Inrush Current:
35/70A at 115/230Vac
AC Input Voltage:
90 to 264
Output Connector Polarity:
Not App
Short Circuit Protection:
No
Output Cord Length:
1.2m (47.3in)
Minimum AC Input Voltage:
85
AC Input Current - Typical:
Not Spec'd
Minimum DC Input Voltage:
120
AC Input Current - Maximum:
0.58A
Overload Protection:
Yes
Input Voltage:
90 to 264Vac | 120 to 370Vdc
Output Current:
5.0 A
Family:
GS120A
Dimensions LxWxH:
6.58 x 2.64 x 1.38 in
Efficiency:
90(Typ) %
Thermal Protection:
Yes
Supplier Package:
N/A
DC Input Voltage:
120 to 370
Minimum Isolation Voltage:
3000 VAC
Power Rating:
120 W
PFC:
>0.97(Min)
Maximum Input Current:
Not Spec'd
Maximum Input Voltage:
264Vac | 370Vdc
Output Connector Diameters:
Not App
Dimensions L x W x H(in):
6.58 x 2.64 x 1.38 in
Adapter Color:
Black
Output Connector Type:
DIN - Cyl - 4-Pin
Over Voltage Protection:
Yes
Load Regulation:
3.00 %
Type:
Regulated-Switching
CoC Tier:
No
Package Type:
Desktop
Operating Temperature:
-30 to 70 °C
Maximum Output Power:
120 W
Safety Class:
I
Protection:
Overload,Over Temperature,Over Voltage
Output Connector Angle:
Straight
Style:
Desktop Adapter
DOE Efficiency Level:
V
Input Frequency:
47 to 63 Hz
Grade:
Commercial
Pin Count:
N/A
Output Voltage:
24 VDC
Ripple & Noise:
180 mV
MOPP:
Not App
Number of Outputs:
1
Mounting Style:
External
Output Type:
Fixed
Dimension:
167 x 67 x 35 mm
Mounting:
External
Maximum AC Input Voltage:
264
Typical Hold-Up Time:
20 ms
Safety Approvals:
CB, CE, cUL, GS, PSE, TUV, UL
Input/Output Type:
AC/DC
Maximum DC Input Voltage:
370
Maximum Output Current:
5.0 A
Minimum Input Voltage:
90Vac | 120Vdc
Dimensions L x W x H:
167.0 x 67.0 x 35.0 mm
Packaging:
N/A
Minimum Load (Amps):
0
Power:
120 W
Power Indicator:
Yes
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 120 Watts: 24V @ 5A - IEC 320-C14 Inlet - Lvl V
Search Keywords:
GS120A24R7B
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments
RECOMMENDED REPLACEMENT

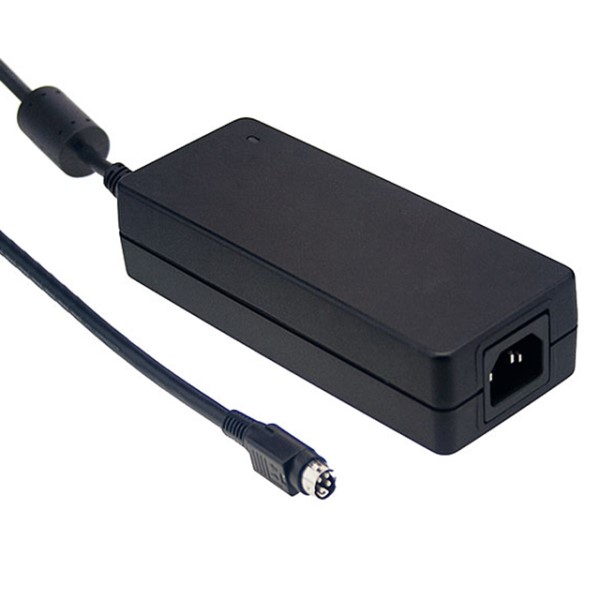

GST120A24-R7B
GST120A24-R7B
