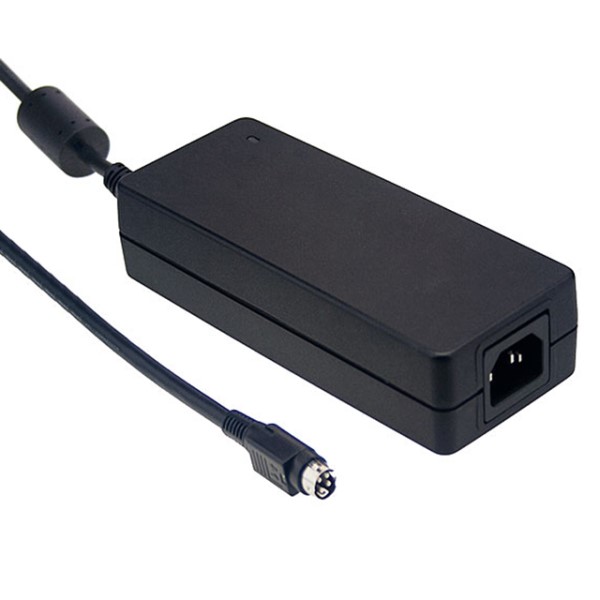

GST120A24-R7B by mean well
Image is representational - see mfr. specs
DATA SHEET

GST120A24-R7B

Mean Well

AC/DC Adapter - Desktop - 120 Watts: 24V @ 5A - IEC C320-C14 Inlet. .. see full description

RoHS Compliant
Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Mean Well
Part No:
GST120A24-R7B
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Output Connector Polarity:
Not App
AC Input Voltage:
85 to 264
Short Circuit Protection:
No
Type:
Regulated-Switching
Thermal Protection:
Yes
Over Voltage Protection:
Yes
Output Cord Length:
1.2m (47.3in)
Power:
120 W
Line Regulation:
1.00 %
Minimum AC Input Voltage:
85
Typical Hold-Up Time:
20 ms
AC Input Current - Maximum:
0.58A
Package Type:
Desktop
Minimum Load (Amps):
0
Minimum DC Input Voltage:
120
Power Indicator:
Yes
Mounting:
External
Family:
GST120A
AC Input Current - Typical:
Not Spec'd
Output Voltage:
24 VDC
Supplier Package:
N/A
Minimum Input Voltage:
90Vac | 120Vdc
Output Type:
Fixed
DC Input Voltage:
120 to 370
Safety Approvals:
BSMI, CB, CCC, CE, cUL, EAC, GS, PSE, RCM, TUV, UL
Maximum DC Input Voltage:
370
MOPP:
Not App
Maximum Input Current:
Not Spec'd
Typical Inrush Current:
70A(Max) at 230Vac
Overload Protection:
Yes
Style:
Desktop Adapter
Dimensions L x W x H:
167.0 x 67.0 x 35.0 mm
Operating Temperature:
-30 to 70 °C
Output Connector Angle:
Straight
Safety Class:
None
Pin Count:
N/A
Output Connector Type:
DIN - Cyl - 4-Pin
DOE Efficiency Level:
VI
Mounting Style:
External
Input/Output Type:
AC/DC
PFC:
>0.93(Min)
Efficiency:
90.5(Typ) %
Adapter Color:
Black
Output Current:
5.0 A
Packaging:
N/A
Load Regulation:
3.00 %
Dimension:
167 x 67 x 35 mm
Maximum Output Power:
120 W
CoC Tier:
No
Grade:
Commercial
Output Connector Diameters:
Not App
Maximum Output Current:
5.0 A
Number of Outputs:
1
Maximum AC Input Voltage:
264
Protection:
Overload,Over Temperature,Over Voltage
Minimum Isolation Voltage:
3000 VAC
Dimensions LxWxH:
6.58 x 2.64 x 1.38 in
Input Frequency:
47 to 63 Hz
Input Voltage:
85 to 264Vac | 120 to 370Vdc
Power Rating:
120 W
Maximum Input Voltage:
264Vac | 370Vdc
Ripple & Noise:
200 mV
Dimensions L x W x H(in):
6.58 x 2.64 x 1.38 in
Input Connector Type:
IEC 320-C14
Use electrical sub-system energy to power your electronic devices using a regulated GST120A24-R7B portable external plug-in adapter from Mean-Well USA, Inc.. This part's single output can handle a current up to 5 A. This part has an input voltage of 85 to 264 V. It has a fixed output that has a voltage of 24 V and maximum output power of 120 W. This part has a temperature range of -30 °C to 70 °C.
Search Keywords:
GST120A24R7B
IN STOCK: 0
Factory Lead-Time
16 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
1
$42.90
$42.90
5
$40.90
$204.50
10
$39.10
$391.00
20 +
$38.00
$760.00
