Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
Mean Well
Part No:
GS120A12-R7B
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack
1
Power Rating:
102 W
Dimensions LxWxH:
6.58 x 2.64 x 1.38 in
Family:
GS120A
Output Type:
Fixed
Power:
102 W
Maximum Input Current:
Not Spec'd
Maximum AC Input Voltage:
264
CoC Tier:
No
Safety Class:
I
AC Input Voltage:
90 to 264
Pin Count:
N/A
Style:
Desktop Adapter
Output Connector Type:
DIN - Cyl - 4-Pin
Typical Inrush Current:
70A(Max) at 230Vac
Protection:
Overload,Over Temperature,Over Voltage
Output Connector Angle:
Straight
Maximum Input Voltage:
264Vac | 370Vdc
Supplier Package:
N/A
Ripple & Noise:
80 mV
Output Current:
8.5 A
DOE Efficiency Level:
V
Number of Outputs:
1
Input Voltage:
90 to 264Vac | 120 to 370Vdc
Minimum Isolation Voltage:
3000 VAC
DC Input Voltage:
120 to 370
Grade:
Commercial
Minimum AC Input Voltage:
85
Power Indicator:
Yes
Input/Output Type:
AC/DC
Operating Temperature:
-30 to 70 °C
Dimensions L x W x H:
167.0 x 67.0 x 35.0 mm
Mounting:
External
Package Type:
Desktop
Dimension:
167 x 67 x 35 mm
Mounting Style:
External
Safety Approvals:
CB, CE, cUL, GS, PSE, TUV, UL
Minimum Input Voltage:
90Vac | 120Vdc
Efficiency:
87.5(Typ) %
Dimensions L x W x H(in):
6.58 x 2.64 x 1.38 in
Short Circuit Protection:
No
Minimum Load (Amps):
0
AC Input Current - Typical:
Not Spec'd
Thermal Protection:
Yes
Line Regulation:
1.00 %
Maximum Output Power:
102 W
Input Frequency:
47 to 63 Hz
Output Connector Polarity:
Not App
Output Cord Length:
1.2m (47.3in)
Minimum DC Input Voltage:
120
Load Regulation:
5.00 %
Output Connector Diameters:
Not App
Over Voltage Protection:
Yes
Overload Protection:
Yes
AC Input Current - Maximum:
0.58A
PFC:
>0.97(Min)
MOPP:
Not App
Typical Hold-Up Time:
20 ms
Packaging:
N/A
Input Connector Type:
IEC 320-C14
Maximum Output Current:
8.5 A
Type:
Regulated-Switching
Output Voltage:
12 VDC
Adapter Color:
Black
Maximum DC Input Voltage:
370
Life Cycle:
Discontinued & Replaced

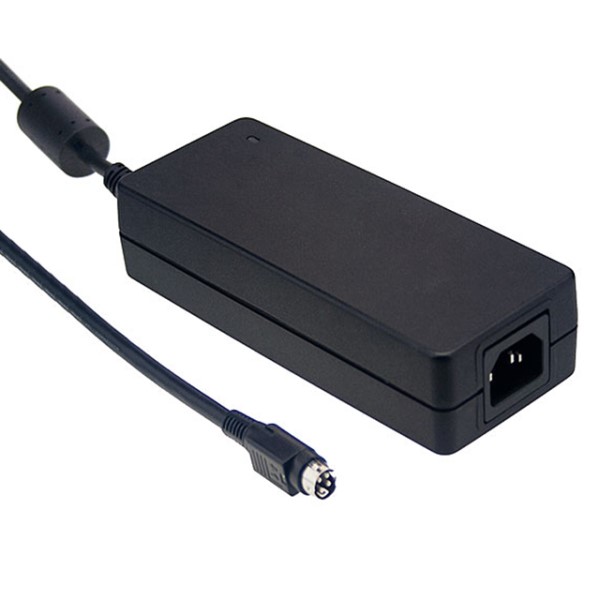

AC/DC Adapter - Desktop - 102 Watts: 12V @ 8.5A - IEC 320-C14 Inlet - Lvl V
Search Keywords:
GS120A12R7B
This product is not in stock and cannot be back-ordered
Please Note:
Tariffs may apply for U.S. shipments
Product Guides
Datasheet
