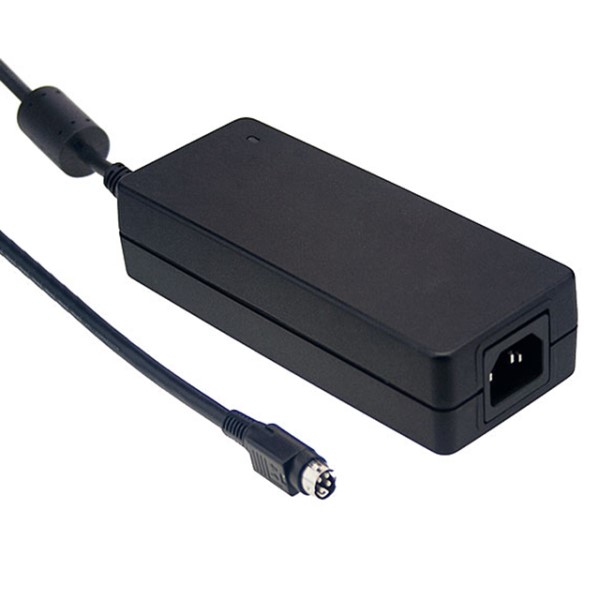

GST120A12-R7B by mean well
Image is representational - see mfr. specs
DATA SHEET

GST120A12-R7B

Mean Well

AC/DC Adapter - Desktop - 102 Watts: 12V @ 8.5A - IEC C320-C14 Inlet. .. see full description

RoHS Compliant
Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
Mean Well
Part No:
GST120A12-R7B
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Output Connector Type:
DIN - Cyl - 4-Pin
Dimension:
167 x 67 x 35 mm
Package Type:
Desktop
Style:
Desktop Adapter
Mounting:
External
Minimum Input Voltage:
90Vac | 120Vdc
Output Voltage:
12 VDC
Power Rating:
102 W
Maximum DC Input Voltage:
370
Dimensions LxWxH:
6.58 x 2.64 x 1.38 in
Dimensions L x W x H:
167.0 x 67.0 x 35.0 mm
Maximum AC Input Voltage:
264
Protection:
Overload,Over Temperature,Over Voltage
Maximum Output Current:
8.5 A
Efficiency:
88.5(Typ) %
Load Regulation:
5.00 %
Family:
GST120A
Number of Outputs:
1
Output Cord Length:
1.0m (39.4in)
Packaging:
N/A
Input Connector Type:
IEC 320-C14
Typical Inrush Current:
70A(Max) at 230Vac
Short Circuit Protection:
No
Typical Hold-Up Time:
20 ms
AC Input Current - Typical:
Not Spec'd
Safety Approvals:
BSMI, CB, CCC, CE, cUL, EAC, GS, PSE, RCM, TUV, UL
Dimensions L x W x H(in):
6.58 x 2.64 x 1.38 in
Input/Output Type:
AC/DC
Input Voltage:
85 to 264Vac | 120 to 370Vdc
Maximum Input Current:
Not Spec'd
DC Input Voltage:
120 to 370
Grade:
Commercial
Supplier Package:
N/A
MOPP:
Not App
Output Current:
8.5 A
Output Connector Diameters:
Not App
Mounting Style:
External
Minimum Isolation Voltage:
3000 VAC
Power Indicator:
Yes
Output Connector Angle:
Straight
CoC Tier:
No
Line Regulation:
1.00 %
Pin Count:
N/A
Maximum Output Power:
102 W
Input Frequency:
47 to 63 Hz
DOE Efficiency Level:
VI
Safety Class:
None
Type:
Regulated-Switching
Minimum AC Input Voltage:
85
AC Input Current - Maximum:
0.58A
Adapter Color:
Black
Thermal Protection:
Yes
AC Input Voltage:
85 to 264
Overload Protection:
Yes
PFC:
>0.93(Min)
Ripple & Noise:
120 mV
Output Type:
Fixed
Power:
102 W
Minimum Load (Amps):
0
Over Voltage Protection:
Yes
Output Connector Polarity:
Not App
Operating Temperature:
-30 to 70 °C
Maximum Input Voltage:
264Vac | 370Vdc
Minimum DC Input Voltage:
120
Use electrical sub-system energy to power your electronic devices using a regulated GST120A12-R7B portable external plug-in adapter from Mean-Well USA, Inc.. This part's single output can handle a current up to 8.5 A. This part has an input voltage of 85 to 264 V. It has a fixed output that has a voltage of 12 V and maximum output power of 102 W. This part has a minimum operating temperature of -30 °C and a maximum of 70 °C.
Search Keywords:
GST120A12R7B
IN STOCK: 0
Factory Lead-Time
16 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
1
$42.90
$42.90
5
$40.90
$204.50
10
$39.10
$391.00
20 +
$38.00
$760.00
