ETSA480083UC-P5P-SZ by cui inc.
Image is representational - see mfr. specs

ETSA480083UC-P5P-SZ

CUI Inc.

AC/DC Adapter - Desktop - 40 Watts: 48V @ 0.83A - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETSA480083UC-P5P-SZ
RoHS:
Yes
HTS:
8504409520
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Minimum Load (Amps):
0
Output Connector Diameters:
2.1 x 5.5 mm
Output Type:
Fixed
Minimum Input Voltage:
90Vac
Minimum AC Input Voltage:
90
Ripple & Noise:
240 mV
Maximum Input Current:
Not Spec'd
Family:
ETSA-40W-U
Output Connector Type:
Barrel - Female
Over Voltage Protection:
Yes
Safety Class:
None
Input Connector Type:
IEC 320-C14
Maximum DC Input Voltage:
Not App
Short Circuit Protection:
Yes
Thermal Protection:
No
Minimum Isolation Voltage:
1500Vac
Line Regulation:
1.00 %
Style:
Desktop Adapter
Dimensions LxWxH:
3.18 x 1.97 x 1.22 in
Power:
40 W
Efficiency:
Not Spec'd
Number of Outputs:
1
Load Regulation:
5.00 %
Typical Inrush Current:
1.0A(Max)
Power Indicator:
No
Maximum AC Input Voltage:
264
Adapter Color:
Black
Grade:
Commercial
Input Frequency:
47 to 63 Hz
Maximum Input Voltage:
264Vac
CoC Tier:
No
Dimension:
80.6 x 50 x 31 mm
DC Input Voltage:
Not App
Minimum DC Input Voltage:
Not App
AC Input Current - Maximum:
Not Spec'd
AC Input Current - Typical:
Not Spec'd
Package Type:
Desktop
Power Rating:
40 W
PFC:
No
Operating Temperature:
0 to 40 °C
Safety Approvals:
CE, cUL, GS, PSE, TUV, UL
DOE Efficiency Level:
V
Maximum Output Power:
40 W
Typical Hold-Up Time:
Not Spec'd
Dimensions L x W x H(in):
3.18 x 1.97 x 1.22 in
Dimensions L x W x H:
80.6 x 50.0 x 31.0 mm
Input Voltage:
90 to 264Vac
Output Cord Length:
1.53m (60.3in)
Type:
Regulated-Switching
Output Connector Angle:
Straight
Output Current:
0.83 A
Overload Protection:
No
AC Input Voltage:
90 to 264
MOPP:
Not App
Mounting:
External
Input/Output Type:
AC/DC
Output Voltage:
48 VDC
Output Connector Polarity:
Center Positive
Mounting Style:
External
Maximum Output Current:
0.83 A
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 40 Watts: 48V @ 0.83A - Lvl V
Search Keywords:
ETSA480083UCP5PSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

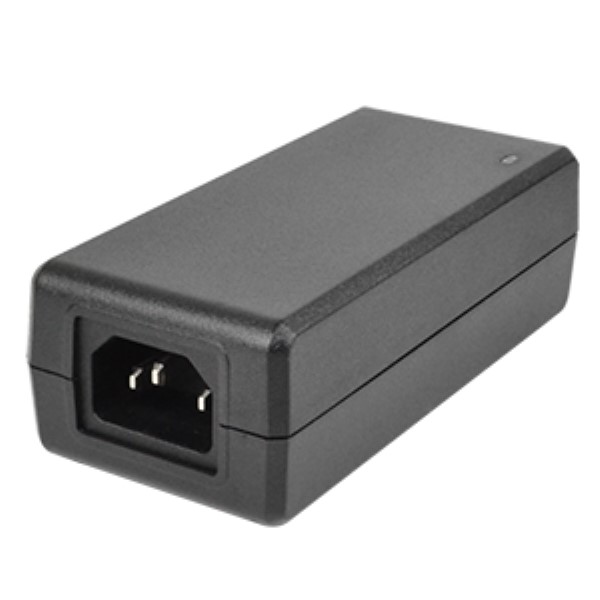

RECOMMENDED REPLACEMENT
SDI50-48-UC-P5
