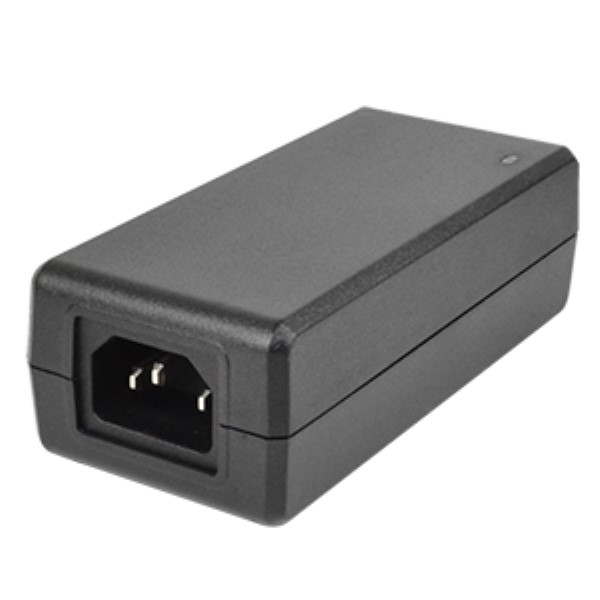

SDI50-48-UC-P5 by cui inc.
Image is representational - see mfr. specs
DATA SHEET

SDI50-48-UC-P5

CUI Inc.

AC/DC Adapter - Desktop - 50 Watts: 48V @ 1.05A - C14 Input - Lvl VI/T2

RoHS Compliant
Box Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
SDI50-48-UC-P5
RoHS:
Yes
HTS:
8504409520
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
30
Package Type:
Box
Output Type:
Fixed
Output Connector Type:
Barrel - Female
MOPP:
Not App
Output Connector Diameters:
2.1 x 5.5 mm
AC Input Current - Typical:
Not Spec'd
Over Voltage Protection:
Yes
Dimension:
115 x 53 x 38 mm
Input Voltage:
90 to 264Vac
Output Connector Polarity:
Center Positive
Maximum Output Current:
1.05 A
Thermal Protection:
No
Mounting Style:
External
Maximum Output Power:
50 W
Operating Temperature:
0 to 40 °C
Output Cord Length:
1.5m (59.1in)
AC Input Voltage:
90 to 264
PFC:
No
Input Connector Type:
IEC 320-C14
Power:
50 W
Typical Inrush Current:
70A(Max) at 230Vac
Ripple & Noise:
480 mV
Special Features:
CoC Tier 2 Compliant, DoE Level VI Efficiency
Typical Hold-Up Time:
Not Spec'd
Maximum DC Input Voltage:
Not App
Minimum Load (Amps):
0
Maximum Input Current:
Not Spec'd
Line Regulation:
5.00 %
AC Input Current - Maximum:
1.2A
Efficiency:
Not Spec'd
Overload Protection:
Yes
DOE Efficiency Level:
VI
Number of Outputs:
1
Minimum Isolation Voltage:
3000Vac
Input/Output Type:
AC/DC
Power Indicator:
Yes
Input Frequency:
47 to 63 Hz
Family:
SDO50-U
Maximum AC Input Voltage:
264
Output Connector Angle:
Straight
Type:
Regulated-Switching
Safety Class:
None
Short Circuit Protection:
Yes
DC Input Voltage:
Not App
Output Current:
1.05 A
Style:
Desktop Adapter
Minimum AC Input Voltage:
90
Grade:
Commercial
Maximum Input Voltage:
264Vac
CoC Tier:
2
Safety Approvals:
CE, cUL, GS, TUV, UL
Adapter Color:
Black
Dimensions L x W x H(in):
4.53 x 2.09 x 1.50 in
Dimensions LxWxH:
4.528 x 2.087 x 1.496 in
Mounting:
External
Output Voltage:
48 VDC
Package Type:
Desktop
Dimensions L x W x H:
115.0 x 53.0 x 38.0 mm
Minimum Input Voltage:
90Vac
Load Regulation:
5.00 %
Power Rating:
50 W
Minimum DC Input Voltage:
Not App
AC/DC Adapter - Desktop - 50 Watts: 48V @ 1.05A - C14 Input - Lvl VI/T2
Search Keywords:
SDI5048UCP5
IN STOCK: 0
MOQ for out of Stock Qty:
128
Factory Lead-Time
21 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
128
$74.00
$9,472.00
255
$37.94
$9,674.70
383
$25.79
$9,877.57
510 +
$25.28
$12,892.80
Please Note: Tariffs may apply for U.S. shipments
Product Guides
PDF 3D Model
PDF Datasheet
