ETSA240270U-P5P-SZ by cui inc.
Image is representational - see mfr. specs

ETSA240270U-P5P-SZ

CUI Inc.

AC/DC Adapter - Desktop - 60 Watts: 24V @ 2.7A - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETSA240270U-P5P-SZ
RoHS:
Yes
HTS:
8504409520
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Dimensions LxWxH:
4.49 x 1.85 x 1.28 in
Adapter Color:
Black
Maximum Input Current:
Not Spec'd
Output Connector Angle:
Straight
Maximum Output Current:
2.7 A
Typical Inrush Current:
1.5A(Max)
Line Regulation:
1.00 %
Safety Class:
None
Minimum DC Input Voltage:
Not App
Minimum Isolation Voltage:
1500Vac
Thermal Protection:
No
Mounting:
External
Output Cord Length:
1.53m (60.3in)
AC Input Voltage:
90 to 264
PFC:
No
Power Rating:
60 W
Efficiency:
Not Spec'd
Dimensions L x W x H:
114.0 x 47.0 x 32.4 mm
Style:
Desktop Adapter
Load Regulation:
5.00 %
DC Input Voltage:
Not App
Input Connector Type:
IEC 320-C14
Minimum AC Input Voltage:
90
Dimension:
114 x 47 x 32.4 mm
Package Type:
Desktop
Input Frequency:
47 to 63 Hz
Grade:
Commercial
Mounting Style:
External
CoC Tier:
No
Output Type:
Fixed
Output Connector Polarity:
Center Positive
Typical Hold-Up Time:
Not Spec'd
Special Features:
Low Leakage Current
Output Connector Type:
Barrel - Female
Input/Output Type:
AC/DC
Safety Approvals:
CE, cUL, GS, PSE, TUV, UL
Power Indicator:
Yes
Type:
Regulated-Switching
Operating Temperature:
0 to 40 °C
Maximum Input Voltage:
264Vac
Output Current:
2.7 A
Dimensions L x W x H(in):
4.49 x 1.85 x 1.28 in
Minimum Input Voltage:
90Vac
Overload Protection:
No
Maximum AC Input Voltage:
264
Minimum Load (Amps):
0
Maximum DC Input Voltage:
Not App
Over Voltage Protection:
Yes
Family:
ETSA-60W-U
DOE Efficiency Level:
V
Ripple & Noise:
240 mV
AC Input Current - Maximum:
1.5A
Maximum Output Power:
60 W
MOPP:
Not App
Input Voltage:
90 to 264Vac
Output Connector Diameters:
2.1 x 5.5 mm
AC Input Current - Typical:
Not Spec'd
Output Voltage:
24 VDC
Number of Outputs:
1
Power:
60 W
Short Circuit Protection:
Yes
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 60 Watts: 24V @ 2.7A - Lvl V
Search Keywords:
ETSA240270UP5PSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

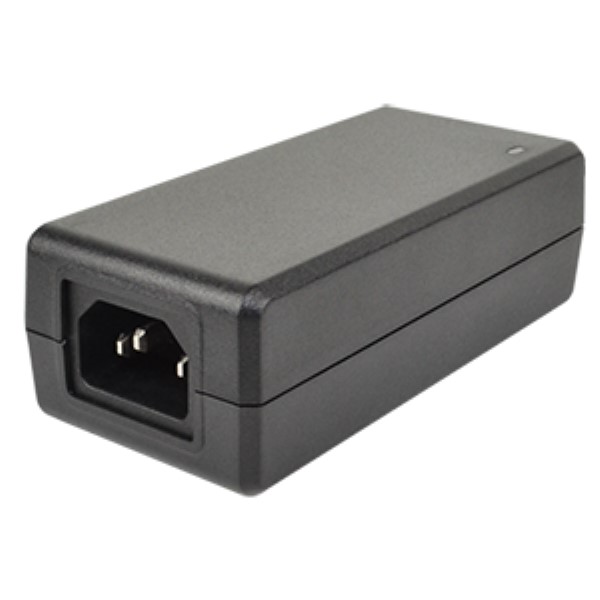

RECOMMENDED REPLACEMENT
SDI65-24-U-P5
SDI65-24-U-P5
VIEW PRODUCT
