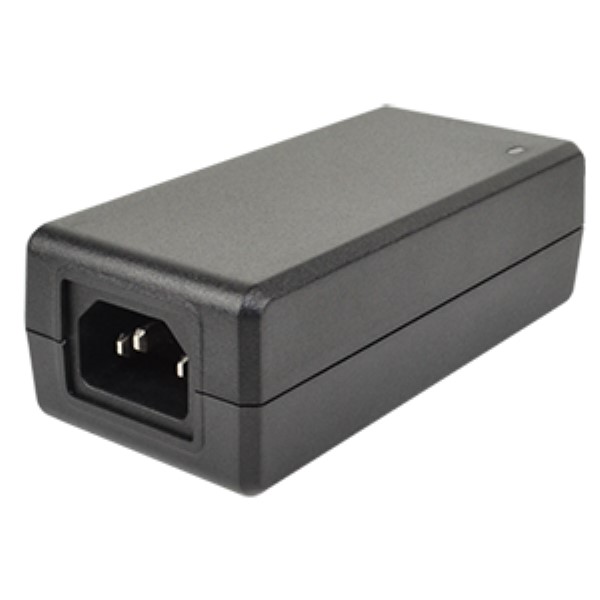

SDI65-24-U-P5 by cui inc.
Image is representational - see mfr. specs
DATA SHEET

SDI65-24-U-P5

CUI Inc.

AC/DC Adapter - Desktop - 65 Watts: 24V @ 2.71A - C14 Input - Lvl VI/T2 .. see full description

RoHS Compliant
Box Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
SDI65-24-U-P5
RoHS:
Yes
HTS:
8504409520
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
40
Package Type:
Box
Over Voltage Protection:
Yes
AC Input Current - Typical:
Not Spec'd
PFC:
No
Output Connector Type:
Barrel - Female
Minimum AC Input Voltage:
90
Input Connector Type:
IEC 320-C14
MOPP:
Not App
Maximum Output Power:
65 W
Output Type:
Fixed
Output Cord Length:
1.5m (59.1in)
Dimensions L x W x H:
115.0 x 53.0 x 38.0 mm
Thermal Protection:
No
Special Features:
CoC Tier 2 Compliant, DoE Level VI Efficiency
Maximum Output Current:
2.71 A
Typical Inrush Current:
80A(Max) at 240Vac
Dimensions L x W x H(in):
4.53 x 2.09 x 1.50 in
Dimension:
115 x 53 x 38 mm
Adapter Color:
Black
AC Input Voltage:
90 to 264
Maximum Input Current:
Not Spec'd
Package Type:
Desktop
Short Circuit Protection:
Yes
Power Indicator:
Yes
Safety Approvals:
CE, cUL, GS, NEMKO, PSE, TUV, UL
Type:
Regulated-Switching
Input Frequency:
47 to 63 Hz
Overload Protection:
Yes
Output Current:
2.71 A
Minimum Isolation Voltage:
3000Vac
Minimum Load (Amps):
0
Output Voltage:
24 VDC
Safety Class:
None
Minimum DC Input Voltage:
Not App
Minimum Input Voltage:
90Vac
Line Regulation:
5.00 %
CoC Tier:
2
Operating Temperature:
0 to 40 °C
Typical Hold-Up Time:
Not Spec'd
Maximum DC Input Voltage:
Not App
Power:
65 W
Style:
Desktop Adapter
Load Regulation:
5.00 %
AC Input Current - Maximum:
1.0A
Dimensions LxWxH:
4.528 x 2.087 x 1.496 in
Maximum Input Voltage:
264Vac
Output Connector Angle:
Straight
Grade:
Commercial
Output Connector Polarity:
Center Positive
Mounting:
External
Mounting Style:
External
Output Connector Diameters:
2.1 x 5.5 mm
Input Voltage:
90 to 264Vac
Number of Outputs:
1
Efficiency:
Not Spec'd
DOE Efficiency Level:
VI
DC Input Voltage:
Not App
Power Rating:
65 W
Input/Output Type:
AC/DC
Family:
SDI65-U
Ripple & Noise:
240 mV
Maximum AC Input Voltage:
264
The SDI65-24-U-P5 from CUI Inc is a high-quality AC/DC adapter designed for use in desktop applications. With its compact and durable design, this adapter delivers a power output of 65 Watts, providing a reliable and efficient power source for various electronic devices. It operates at an output voltage of 24V with a current rating of 2.71A, offering ample power for demanding applications. Featuring a C14 input plug, it can easily be connected to standard AC power sources. Additionally, this adapter complies with Level VI efficiency standards and T2 temperature ratings, ensuring energy efficiency and safe operation.
Search Keywords:
SDI6524UP5
IN STOCK: 0
Factory Lead-Time
21 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
1
$28.13
$28.13
10
$24.52
$245.20
40
$21.83
$873.20
80
$21.72
$1,737.60
120
$21.38
$2,565.60
280
$20.68
$5,790.40
520 +
$20.58
$10,701.60
Suppliers Standard Package
Please Note: Tariffs may apply for U.S. shipments
Product Guides
PDF 3D Model
PDF Datasheet
