ETSA240270UD-P5P-SZ by cui inc.
Image is representational - see mfr. specs

ETSA240270UD-P5P-SZ

CUI Inc.

AC/DC Adapter - Desktop - 60 Watts: 24V @ 2.7A - C8 Input - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETSA240270UD-P5P-SZ
RoHS:
Yes
HTS:
8504409520
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
DC Input Voltage:
Not App
Input/Output Type:
AC/DC
Maximum Input Voltage:
264Vac
Load Regulation:
5.00 %
DOE Efficiency Level:
V
Safety Approvals:
CE, cUL, GS, PSE, TUV, UL
Output Current:
2.7 A
Overload Protection:
No
Efficiency:
Not Spec'd
Type:
Regulated-Switching
Safety Class:
None
Short Circuit Protection:
Yes
MOPP:
Not App
Line Regulation:
1.00 %
Dimensions L x W x H(in):
4.49 x 1.85 x 1.28 in
Maximum DC Input Voltage:
Not App
Package Type:
Desktop
Minimum Isolation Voltage:
1500Vac
AC Input Current - Typical:
Not Spec'd
Mounting Style:
External
Output Cord Length:
1.53m (60.3in)
AC Input Voltage:
90 to 264
Ripple & Noise:
240 mV
Minimum AC Input Voltage:
90
Style:
Desktop Adapter
Maximum Input Current:
Not Spec'd
Family:
ETSA-60W-U
PFC:
No
CoC Tier:
No
Output Connector Angle:
Straight
Input Connector Type:
IEC 320-C8
Output Type:
Fixed
Dimensions L x W x H:
114.0 x 47.0 x 32.4 mm
Operating Temperature:
0 to 40 °C
Number of Outputs:
1
Minimum Load (Amps):
0
AC Input Current - Maximum:
Not Spec'd
Dimensions LxWxH:
4.49 x 1.85 x 1.28 in
Adapter Color:
Black
Maximum Output Current:
2.7 A
Typical Hold-Up Time:
Not Spec'd
Power Indicator:
Yes
Maximum AC Input Voltage:
264
Minimum Input Voltage:
90Vac
Input Frequency:
47 to 63 Hz
Special Features:
Low Leakage Current
Typical Inrush Current:
1.5A(Max)
Maximum Output Power:
60 W
Output Connector Diameters:
2.1 x 5.5 mm
Grade:
Commercial
Minimum DC Input Voltage:
Not App
Output Connector Polarity:
Center Positive
Thermal Protection:
No
Output Connector Type:
Barrel - Female
Input Voltage:
90 to 264Vac
Dimension:
114 x 47 x 32.4 mm
Power:
60 W
Power Rating:
60 W
Output Voltage:
24 VDC
Mounting:
External
Over Voltage Protection:
Yes
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 60 Watts: 24V @ 2.7A - C8 Input - Lvl V
Search Keywords:
ETSA240270UDP5PSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

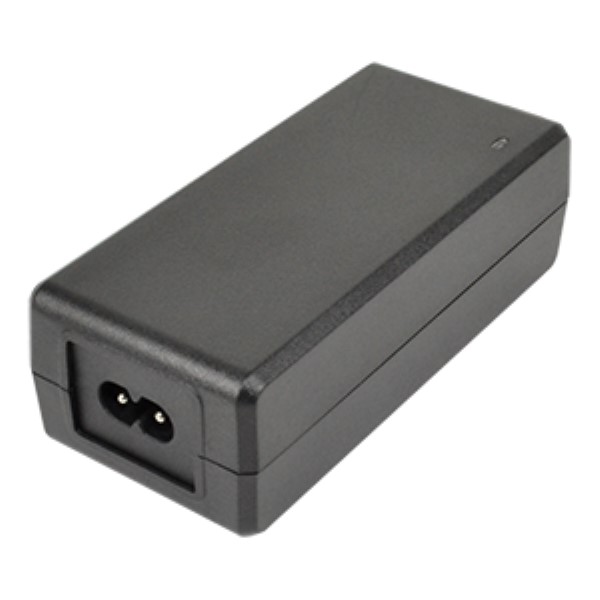

RECOMMENDED REPLACEMENT
SDI65-24-UD-P5
SDI65-24-UD-P5
VIEW PRODUCT
