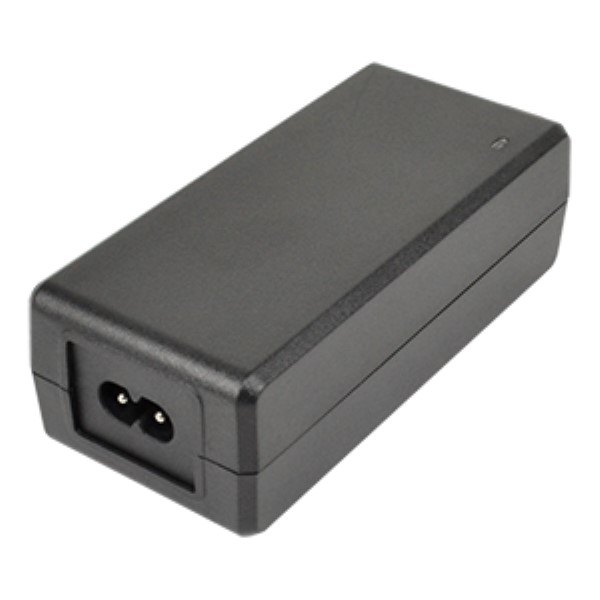

Image is representational - see mfr. specs

DATA SHEET

SDI65-24-UD-P5

CUI Inc.

AC/DC Adapter - Desktop - 65 Watts: 24V @ 2.71A - C14 Input - Lvl VI/T2

RoHS Compliant

Box Packaging

Accessories

Certificate of Compliance Guarantee

SPECS
FULL DESCRIPTION

Product Attribute

Attribute Value Select Attribute

Products found: 0Show Similar

Supplier:

CUI Inc.

Part No:

SDI65-24-UD-P5

RoHS:

Yes

HTS:

8504409520

COO:

ECCN:

EAR99

Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

Package Type:

Box

Mounting:

External

Style:

Desktop Adapter

Efficiency:

Not Spec'd

Maximum AC Input Voltage:

264

Number of Outputs:

AC Input Current - Maximum:

1.0A

Power:

65 W

Package Type:

Desktop

CoC Tier:

Power Rating:

65 W

DC Input Voltage:

Not App

Load Regulation:

5.00 %

Maximum Output Current:

2.71 A

Family:

SDI65-U

PFC:

Output Voltage:

24 VDC

Output Cord Length:

1.5m (59.1in)

Output Connector Polarity:

Center Positive

Minimum Load (Amps):

Maximum Input Current:

Not Spec'd

Safety Approvals:

CE, cUL, GS, NEMKO, PSE, TUV, UL

Ripple & Noise:

240 mV

Thermal Protection:

Dimension:

115 x 53 x 38 mm

Grade:

Commercial

Mounting Style:

External

Short Circuit Protection:

Yes

Power Indicator:

Yes

Operating Temperature:

0 to 40 °C

Over Voltage Protection:

Yes

Output Type:

Fixed

Output Current:

2.71 A

Maximum Input Voltage:

264Vac

Input Frequency:

47 to 63 Hz

Typical Hold-Up Time:

Not Spec'd

AC Input Current - Typical:

Not Spec'd

Minimum Isolation Voltage:

3000Vac

Input/Output Type:

AC/DC

DOE Efficiency Level:

Dimensions LxWxH:

4.528 x 2.087 x 1.496 in

Line Regulation:

5.00 %

Input Connector Type:

IEC 320-C14

Adapter Color:

Black

Minimum AC Input Voltage:

Typical Inrush Current:

80A(Max) at 240Vac

Special Features:

CoC Tier 2 Compliant, DoE Level VI Efficiency

Maximum DC Input Voltage:

Not App

Output Connector Diameters:

2.1 x 5.5 mm

MOPP:

Not App

Output Connector Angle:

Straight

Input Voltage:

90 to 264Vac

Overload Protection:

Yes

Dimensions L x W x H:

115.0 x 53.0 x 38.0 mm

AC Input Voltage:

90 to 264

Maximum Output Power:

65 W

Minimum DC Input Voltage:

Not App

Minimum Input Voltage:

90Vac

Output Connector Type:

Barrel - Female

Dimensions L x W x H(in):

4.53 x 2.09 x 1.50 in

Safety Class:

None

Type:

Regulated-Switching

AC/DC Adapter - Desktop - 65 Watts: 24V @ 2.71A - C14 Input - Lvl VI/T2
