ETSA240167U-P5P-SZ by cui inc.
Image is representational - see mfr. specs

ETSA240167U-P5P-SZ

CUI Inc.

AC/DC Adapter - Desktop - 40 Watts: 24V @ 1.67A - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETSA240167U-P5P-SZ
RoHS:
Yes
HTS:
8504409520
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Minimum Load (Amps):
0
AC Input Current - Typical:
Not Spec'd
Power Rating:
40 W
Over Voltage Protection:
Yes
Input Connector Type:
IEC 320-C14
Dimensions LxWxH:
3.18 x 1.97 x 1.22 in
Output Connector Type:
Barrel - Female
Output Connector Polarity:
Center Positive
Maximum Output Current:
1.67 A
Ripple & Noise:
240 mV
Minimum Input Voltage:
90Vac
Output Type:
Fixed
Output Voltage:
24 VDC
Output Connector Diameters:
2.1 x 5.5 mm
Type:
Regulated-Switching
Operating Temperature:
0 to 40 °C
Typical Hold-Up Time:
Not Spec'd
Maximum Input Voltage:
264Vac
Minimum AC Input Voltage:
90
Line Regulation:
1.00 %
Dimensions L x W x H:
80.6 x 50.0 x 31.0 mm
Typical Inrush Current:
1.0A(Max)
Mounting Style:
External
Family:
ETSA-40W-U
Maximum AC Input Voltage:
264
Power Indicator:
No
Number of Outputs:
1
Output Connector Angle:
Straight
Thermal Protection:
No
DOE Efficiency Level:
V
Efficiency:
Not Spec'd
Load Regulation:
5.00 %
AC Input Voltage:
90 to 264
Short Circuit Protection:
Yes
Safety Class:
None
Output Current:
1.67 A
Grade:
Commercial
Input/Output Type:
AC/DC
DC Input Voltage:
Not App
MOPP:
Not App
PFC:
No
Minimum Isolation Voltage:
1500Vac
Adapter Color:
Black
AC Input Current - Maximum:
Not Spec'd
Dimension:
80.6 x 50 x 31 mm
Safety Approvals:
CE, cUL, GS, PSE, TUV, UL
Output Cord Length:
1.53m (60.3in)
Maximum Input Current:
Not Spec'd
Package Type:
Desktop
Mounting:
External
Input Frequency:
47 to 63 Hz
Power:
40 W
Maximum DC Input Voltage:
Not App
Dimensions L x W x H(in):
3.18 x 1.97 x 1.22 in
CoC Tier:
No
Style:
Desktop Adapter
Minimum DC Input Voltage:
Not App
Maximum Output Power:
40 W
Input Voltage:
90 to 264Vac
Overload Protection:
No
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 40 Watts: 24V @ 1.67A - Lvl V
Search Keywords:
ETSA240167UP5PSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

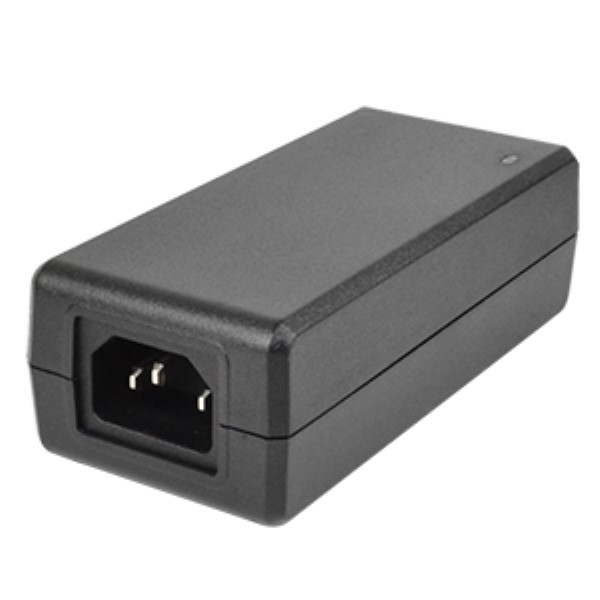

RECOMMENDED REPLACEMENT
SDI50-24-U-P5
SDI50-24-U-P5
VIEW PRODUCT
