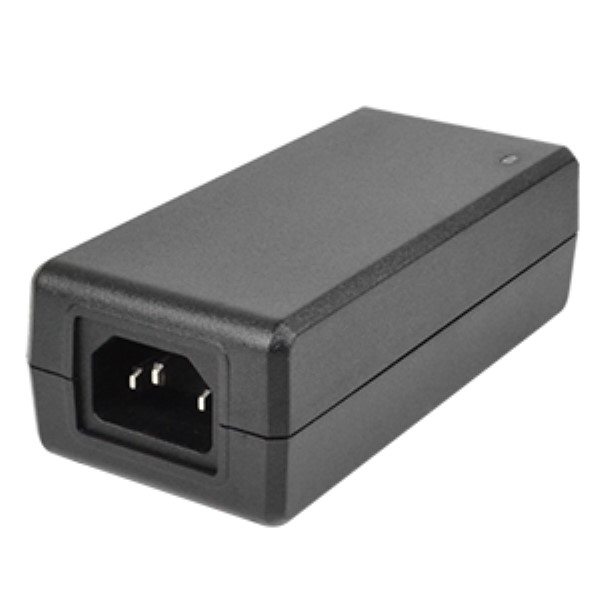

SDI50-24-U-P5 by cui inc.
Image is representational - see mfr. specs
DATA SHEET

SDI50-24-U-P5

CUI Inc.

AC/DC Adapter - Desktop - 50 Watts: 24V @ 2.1A - C14 Input - Lvl VI/T2 .. see full description

RoHS Compliant
Box Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
SDI50-24-U-P5
RoHS:
Yes
HTS:
8504409520
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
40
Package Type:
Box
Dimension:
115 x 53 x 38 mm
Overload Protection:
Yes
Typical Hold-Up Time:
Not Spec'd
Output Voltage:
24 VDC
Maximum Output Power:
50 W
Maximum Input Current:
Not Spec'd
Input Voltage:
90 to 264Vac
Adapter Color:
Black
Minimum Input Voltage:
90Vac
Mounting:
External
DOE Efficiency Level:
VI
Minimum Load (Amps):
0
Output Connector Diameters:
2.1 x 5.5 mm
Operating Temperature:
0 to 40 °C
Package Type:
Desktop
Over Voltage Protection:
Yes
CoC Tier:
2
Safety Class:
None
Output Connector Type:
Barrel - Female
Output Type:
Fixed
Mounting Style:
External
Line Regulation:
5.00 %
Dimensions L x W x H(in):
4.53 x 2.09 x 1.50 in
Maximum DC Input Voltage:
Not App
Dimensions L x W x H:
115.0 x 53.0 x 38.0 mm
Minimum DC Input Voltage:
Not App
Dimensions LxWxH:
4.528 x 2.087 x 1.496 in
Thermal Protection:
No
Input Frequency:
47 to 63 Hz
Power Rating:
50 W
Output Current:
2.1 A
Power Indicator:
Yes
Output Cord Length:
1.5m (59.1in)
Family:
SDO50-U
Minimum AC Input Voltage:
90
Special Features:
CoC Tier 2 Compliant, DoE Level VI Efficiency
Type:
Regulated-Switching
Minimum Isolation Voltage:
3000Vac
Safety Approvals:
CE, cUL, GS, PSE, TUV, UL
Input/Output Type:
AC/DC
AC Input Current - Maximum:
1.2A
Maximum AC Input Voltage:
264
Power:
50 W
Typical Inrush Current:
70A(Max) at 230Vac
Number of Outputs:
1
Output Connector Polarity:
Center Positive
DC Input Voltage:
Not App
AC Input Current - Typical:
Not Spec'd
PFC:
No
Maximum Output Current:
2.1 A
Maximum Input Voltage:
264Vac
Output Connector Angle:
Straight
Short Circuit Protection:
Yes
Efficiency:
Not Spec'd
Load Regulation:
5.00 %
Ripple & Noise:
240 mV
Grade:
Commercial
Input Connector Type:
IEC 320-C14
Style:
Desktop Adapter
AC Input Voltage:
90 to 264
MOPP:
Not App
The SDI50-24-U-P5 is a versatile and high-performance AC/DC Adapter designed for desktop use. With a power output of 50 Watts, it provides a reliable and efficient power source for your electronic devices. The adapter offers a constant 24V supply with a maximum current of 2.1A, ensuring optimum performance and stability. Featuring a C14 input, this adapter can be easily connected to various power sources. It also complies with Level VI and T2 energy efficiency standards, making it a sustainable and environmentally-friendly choice. Choose the SDI50-24-U-P5 for a reliable, powerful, and eco-conscious AC/DC adapter solution.
Search Keywords:
SDI5024UP5
IN STOCK: 0
Factory Lead-Time
21 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
1
$27.40
$27.40
10
$21.67
$216.70
40
$19.38
$775.20
80
$19.28
$1,542.40
120
$19.02
$2,282.40
280
$18.63
$5,216.40
520 +
$18.54
$9,640.80
Suppliers Standard Package
Please Note: Tariffs may apply for U.S. shipments
Product Guides
PDF 3D Model
PDF Datasheet
