ETSA190342U-P5P-SZ by cui inc.
Image is representational - see mfr. specs

ETSA190342U-P5P-SZ

CUI Inc.

AC/DC Adapter - Desktop - 60 Watts: 19V @ 3.42A - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETSA190342U-P5P-SZ
RoHS:
Yes
HTS:
8504409520
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Over Voltage Protection:
Yes
Type:
Regulated-Switching
Dimension:
114 x 47 x 32.4 mm
Family:
ETSA-60W-U
Operating Temperature:
0 to 40 °C
Input Frequency:
47 to 63 Hz
Output Connector Diameters:
2.1 x 5.5 mm
Output Connector Type:
Barrel - Female
Thermal Protection:
No
AC Input Current - Typical:
Not Spec'd
Output Connector Polarity:
Center Positive
Special Features:
Low Leakage Current
Maximum Output Power:
60 W
Output Type:
Fixed
Maximum Output Current:
3.42 A
Overload Protection:
No
Ripple & Noise:
240 mV
Minimum Load (Amps):
0
Dimensions L x W x H(in):
4.49 x 1.85 x 1.28 in
Safety Class:
None
Maximum AC Input Voltage:
264
Style:
Desktop Adapter
Mounting Style:
External
DOE Efficiency Level:
V
Typical Hold-Up Time:
Not Spec'd
Number of Outputs:
1
Input Voltage:
90 to 264Vac
Line Regulation:
1.00 %
Maximum Input Current:
Not Spec'd
Short Circuit Protection:
Yes
Load Regulation:
5.00 %
Adapter Color:
Black
Dimensions L x W x H:
114.0 x 47.0 x 32.4 mm
Efficiency:
Not Spec'd
Typical Inrush Current:
1.5A(Max)
Minimum DC Input Voltage:
Not App
Power:
60 W
Output Connector Angle:
Straight
Grade:
Commercial
CoC Tier:
No
Dimensions LxWxH:
4.49 x 1.85 x 1.28 in
PFC:
No
Maximum Input Voltage:
264Vac
Power Rating:
60 W
Power Indicator:
Yes
Input/Output Type:
AC/DC
Minimum Input Voltage:
90Vac
AC Input Current - Maximum:
1.5A
Output Voltage:
19 VDC
AC Input Voltage:
90 to 264
Mounting:
External
Output Current:
3.42 A
DC Input Voltage:
Not App
Package Type:
Desktop
Output Cord Length:
1.53m (60.3in)
Input Connector Type:
IEC 320-C14
Maximum DC Input Voltage:
Not App
Minimum AC Input Voltage:
90
Minimum Isolation Voltage:
1500Vac
Safety Approvals:
CE, cUL, GS, PSE, TUV, UL
MOPP:
Not App
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 60 Watts: 19V @ 3.42A - Lvl V
Search Keywords:
ETSA190342UP5PSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

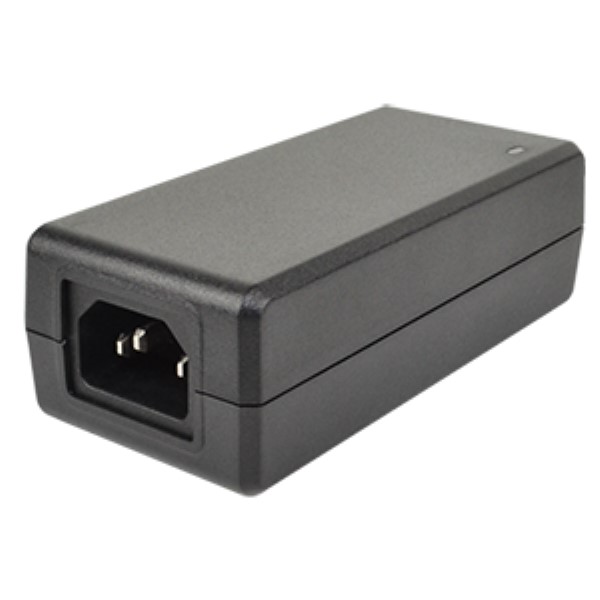

RECOMMENDED REPLACEMENT
SDI65-19-U-P5
SDI65-19-U-P5
VIEW PRODUCT
