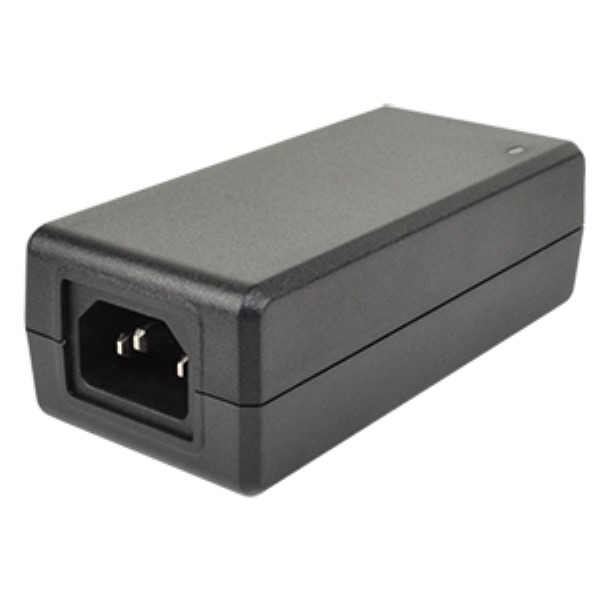

SDI65-19-U-P5 by cui inc.
Image is representational - see mfr. specs
DATA SHEET

SDI65-19-U-P5

CUI Inc.

AC/DC Adapter - Desktop - 65 Watts: 19V @ 3.43A - C14 Input - Lvl VI/T2

RoHS Compliant
Box Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
SDI65-19-U-P5
RoHS:
Yes
HTS:
8504409520
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
40
Package Type:
Box
Minimum Input Voltage:
90Vac
Dimensions LxWxH:
4.528 x 2.087 x 1.496 in
Minimum AC Input Voltage:
90
Maximum Output Power:
65 W
Maximum DC Input Voltage:
Not App
Maximum Input Current:
Not Spec'd
DOE Efficiency Level:
VI
Operating Temperature:
0 to 40 °C
Line Regulation:
5.00 %
Input Connector Type:
IEC 320-C14
CoC Tier:
2
Number of Outputs:
1
Short Circuit Protection:
Yes
Typical Inrush Current:
80A(Max) at 240Vac
Safety Class:
None
Typical Hold-Up Time:
Not Spec'd
Maximum AC Input Voltage:
264
Adapter Color:
Black
Mounting Style:
External
Output Connector Angle:
Straight
Output Voltage:
19 VDC
Overload Protection:
Yes
Type:
Regulated-Switching
Output Connector Polarity:
Center Positive
Safety Approvals:
CE, cUL, GS, NEMKO, PSE, TUV, UL
Load Regulation:
5.00 %
Efficiency:
Not Spec'd
Output Current:
3.43 A
Style:
Desktop Adapter
Ripple & Noise:
190 mV
Grade:
Commercial
Power Rating:
65 W
AC Input Current - Typical:
Not Spec'd
Dimensions L x W x H(in):
4.53 x 2.09 x 1.50 in
Maximum Output Current:
3.43 A
Dimension:
115 x 53 x 38 mm
Power Indicator:
Yes
Output Connector Diameters:
2.1 x 5.5 mm
Input/Output Type:
AC/DC
MOPP:
Not App
Output Type:
Fixed
Thermal Protection:
No
AC Input Current - Maximum:
1.0A
Family:
SDI65-U
Minimum Load (Amps):
0
Mounting:
External
Over Voltage Protection:
Yes
Minimum Isolation Voltage:
3000Vac
DC Input Voltage:
Not App
Special Features:
CoC Tier 2 Compliant, DoE Level VI Efficiency
PFC:
No
Package Type:
Desktop
Output Connector Type:
Barrel - Female
Input Voltage:
90 to 264Vac
Output Cord Length:
1.5m (59.1in)
Minimum DC Input Voltage:
Not App
Input Frequency:
47 to 63 Hz
Power:
65 W
AC Input Voltage:
90 to 264
Dimensions L x W x H:
115.0 x 53.0 x 38.0 mm
Maximum Input Voltage:
264Vac
AC/DC Adapter - Desktop - 65 Watts: 19V @ 3.43A - C14 Input - Lvl VI/T2
Search Keywords:
SDI6519UP5
IN STOCK: 0
MOQ for out of Stock Qty:
130
Factory Lead-Time
21 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
130
$56.59
$7,356.70
260
$29.87
$7,766.20
390
$20.54
$8,010.60
520 +
$20.13
$10,467.60
Please Note: Tariffs may apply for U.S. shipments
Product Guides
PDF 3D Model
PDF Datasheet
