ETSA120500UDC-P5RP-SZ by cui inc.
Image is representational - see mfr. specs

ETSA120500UDC-P5RP-SZ

CUI Inc.

AC/DC Adapter - Desktop - 60 Watts : 12V @ 5A - C8 Input - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETSA120500UDC-P5RP-SZ
RoHS:
Yes
HTS:
8504409520
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
AC Input Current - Typical:
Not Spec'd
MOPP:
Not App
Family:
ETSA-60W-U
Typical Inrush Current:
1.4A(Max)
Special Features:
Low Leakage Current
Ripple & Noise:
200 mV
PFC:
No
DOE Efficiency Level:
V
Input Frequency:
47 to 63 Hz
Maximum Output Power:
60 W
Maximum Output Current:
5.0 A
Operating Temperature:
0 to 40 °C
Typical Hold-Up Time:
Not Spec'd
Output Connector Diameters:
2.1 x 5.5 mm
Output Connector Polarity:
Center Positive
Input Voltage:
90 to 264Vac
Overload Protection:
No
Maximum AC Input Voltage:
264
Dimensions L x W x H:
114.0 x 47.0 x 32.4 mm
Over Voltage Protection:
Yes
Type:
Regulated-Switching
Input/Output Type:
AC/DC
Minimum AC Input Voltage:
90
DC Input Voltage:
Not App
Mounting Style:
External
Dimension:
114 x 47 x 32.4 mm
Output Connector Type:
Barrel - Female
Minimum Load (Amps):
0
Number of Outputs:
1
Maximum Input Current:
Not Spec'd
Line Regulation:
1.00 %
Output Connector Angle:
Right Angle
Thermal Protection:
No
Dimensions L x W x H(in):
4.49 x 1.85 x 1.28 in
Output Voltage:
12 VDC
Grade:
Commercial
Input Connector Type:
IEC 320-C8
Efficiency:
Not Spec'd
Short Circuit Protection:
Yes
Output Type:
Fixed
Maximum Input Voltage:
264Vac
Safety Class:
None
Package Type:
Desktop
Output Current:
5.0 A
Maximum DC Input Voltage:
Not App
AC Input Current - Maximum:
Not Spec'd
Dimensions LxWxH:
4.49 x 1.85 x 1.28 in
AC Input Voltage:
90 to 264
CoC Tier:
No
Mounting:
External
Minimum Input Voltage:
90Vac
Adapter Color:
Black
Safety Approvals:
CE, cUL, GS, PSE, TUV, UL
Output Cord Length:
1.0m (39.4in)
Style:
Desktop Adapter
Power Rating:
60 W
Power:
60 W
Minimum Isolation Voltage:
1500Vac
Minimum DC Input Voltage:
Not App
Power Indicator:
Yes
Load Regulation:
5.00 %
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 60 Watts : 12V @ 5A - C8 Input - Lvl V
Search Keywords:
ETSA120500UDCP5RPSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

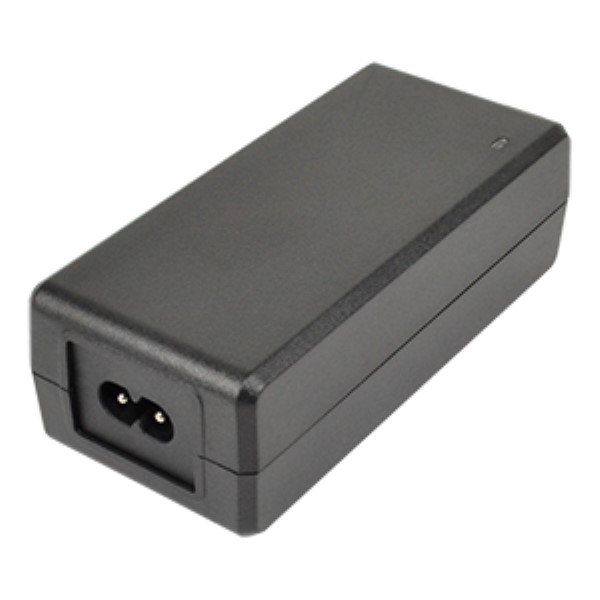

RECOMMENDED REPLACEMENT
SDI65-12-UDC-P5R
SDI65-12-UDC-P5R
