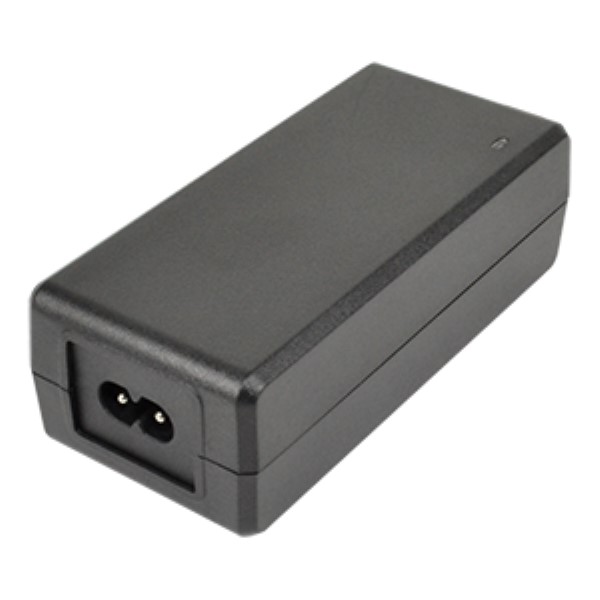

SDI65-12-UDC-P5R by cui inc.
Image is representational - see mfr. specs
DATA SHEET

SDI65-12-UDC-P5R

CUI Inc.

AC/DC Adapter - Desktop - 60 Watts: 12V @ 5 A - C14 Input - Lvl VI/T2

RoHS Compliant
Box Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
SDI65-12-UDC-P5R
RoHS:
Yes
HTS:
8504409520
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
30
Package Type:
Box
Line Regulation:
5.00 %
Power Rating:
60 W
Special Features:
CoC Tier 2 Compliant, DoE Level VI Efficiency
Output Current:
5.0 A
Power Indicator:
Yes
Overload Protection:
Yes
Typical Hold-Up Time:
Not Spec'd
Adapter Color:
Black
Maximum DC Input Voltage:
Not App
Minimum AC Input Voltage:
90
Safety Approvals:
CE, cUL, GS, NEMKO, PSE, TUV, UL
Maximum Input Current:
Not Spec'd
Typical Inrush Current:
80A(Max) at 240Vac
Minimum Input Voltage:
90Vac
Dimensions L x W x H:
115.0 x 53.0 x 38.0 mm
Operating Temperature:
0 to 40 °C
AC Input Voltage:
90 to 264
Type:
Regulated-Switching
Output Connector Diameters:
2.1 x 5.5 mm
Safety Class:
None
DOE Efficiency Level:
VI
Thermal Protection:
No
Output Connector Type:
Barrel - Female
CoC Tier:
2
Input Connector Type:
IEC 320-C14
Package Type:
Desktop
Dimension:
115 x 53 x 38 mm
Maximum Input Voltage:
264Vac
Number of Outputs:
1
PFC:
No
Efficiency:
Not Spec'd
Mounting Style:
External
Input Frequency:
47 to 63 Hz
AC Input Current - Maximum:
1.0A
Ripple & Noise:
120 mV
AC Input Current - Typical:
Not Spec'd
Minimum DC Input Voltage:
Not App
Output Cord Length:
1.5m (59.1in)
Output Type:
Fixed
Input Voltage:
90 to 264Vac
Dimensions L x W x H(in):
4.53 x 2.09 x 1.50 in
Power:
60 W
Style:
Desktop Adapter
Output Connector Polarity:
Center Positive
Over Voltage Protection:
Yes
Minimum Isolation Voltage:
3000Vac
Grade:
Commercial
Minimum Load (Amps):
0
MOPP:
Not App
Output Connector Angle:
Right Angle
Short Circuit Protection:
Yes
Family:
SDI65-U
Maximum Output Power:
60 W
Load Regulation:
5.00 %
DC Input Voltage:
Not App
Output Voltage:
12 VDC
Maximum Output Current:
5.0 A
Dimensions LxWxH:
4.528 x 2.087 x 1.496 in
Input/Output Type:
AC/DC
Maximum AC Input Voltage:
264
Mounting:
External
AC/DC Adapter - Desktop - 60 Watts: 12V @ 5 A - C14 Input - Lvl VI/T2
Search Keywords:
SDI6512UDCP5R
IN STOCK: 0
MOQ for out of Stock Qty:
128
Factory Lead-Time
21 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
128
$76.81
$9,831.68
255
$39.39
$10,044.45
383
$26.78
$10,256.74
510 +
$26.24
$13,382.40
