ETSA120150UD-P5P-SZ by cui inc.
Image is representational - see mfr. specs

ETSA120150UD-P5P-SZ

CUI Inc.

AC/DC Adapter - Desktop - 18 Watts: 12V @ 1.5A - C8 Input - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETSA120150UD-P5P-SZ
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Input/Output Type:
AC/DC
Output Voltage:
12 VDC
Style:
Desktop Adapter
Minimum DC Input Voltage:
Not App
Maximum Input Voltage:
264Vac
Ripple & Noise:
100 mV
Input Voltage:
90 to 264Vac
Maximum AC Input Voltage:
264
Efficiency:
Not Spec'd
Family:
ETSA-18W-U
CoC Tier:
No
Output Connector Diameters:
2.1 x 5.5 mm
Line Regulation:
1.00 %
Short Circuit Protection:
Yes
Output Cord Length:
1.53m (60.3in)
AC Input Current - Maximum:
0.5A
Input Frequency:
47 to 63 Hz
AC Input Voltage:
90 to 264
Grade:
Commercial
Minimum Isolation Voltage:
1500Vac
Maximum Output Current:
1.5 A
Output Connector Angle:
Straight
Minimum Input Voltage:
90Vac
Overload Protection:
No
Adapter Color:
Black
Maximum Output Power:
18 W
AC Input Current - Typical:
Not Spec'd
Package Type:
Desktop
Typical Inrush Current:
40/80A(Max) at 115/230Vac
DOE Efficiency Level:
V
Thermal Protection:
No
PFC:
No
Output Connector Polarity:
Center Positive
Operating Temperature:
0 to 40 °C
Dimensions LxWxH:
3.18 x 1.97 x 1.22 in
Power:
18 W
Dimension:
80.6 x 50 x 31 mm
Output Connector Type:
Barrel - Female
Mounting:
External
Typical Hold-Up Time:
Not Spec'd
Type:
Regulated-Switching
MOPP:
Not App
Power Indicator:
No
Dimensions L x W x H(in):
3.18 x 1.97 x 1.22 in
Over Voltage Protection:
Yes
Maximum DC Input Voltage:
Not App
Safety Approvals:
CE, cUL, GS, PSE, TUV, UL
Output Type:
Fixed
Input Connector Type:
IEC 320-C8
Safety Class:
None
Mounting Style:
External
Minimum Load (Amps):
0
Number of Outputs:
1
Maximum Input Current:
Not Spec'd
Minimum AC Input Voltage:
90
DC Input Voltage:
Not App
Dimensions L x W x H:
80.6 x 50.0 x 31.0 mm
Output Current:
1.5 A
Load Regulation:
5.00 %
Power Rating:
18 W
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 18 Watts: 12V @ 1.5A - C8 Input - Lvl V
Search Keywords:
ETSA120150UDP5PSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

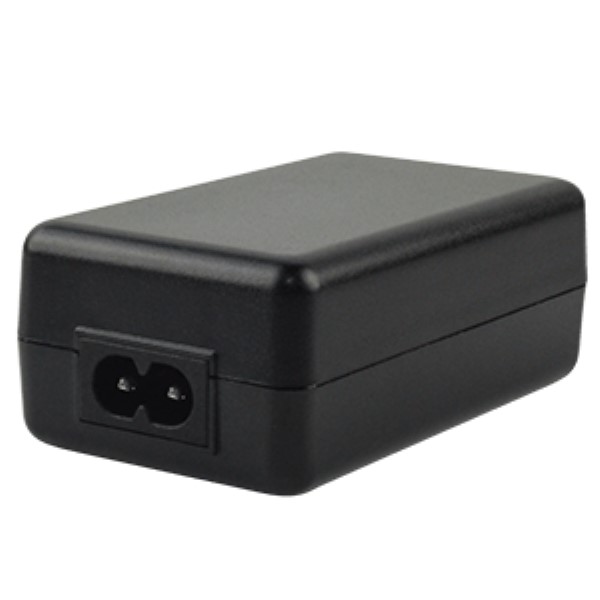

RECOMMENDED REPLACEMENT
SDI18-12-UD-P5
SDI18-12-UD-P5
VIEW PRODUCT
