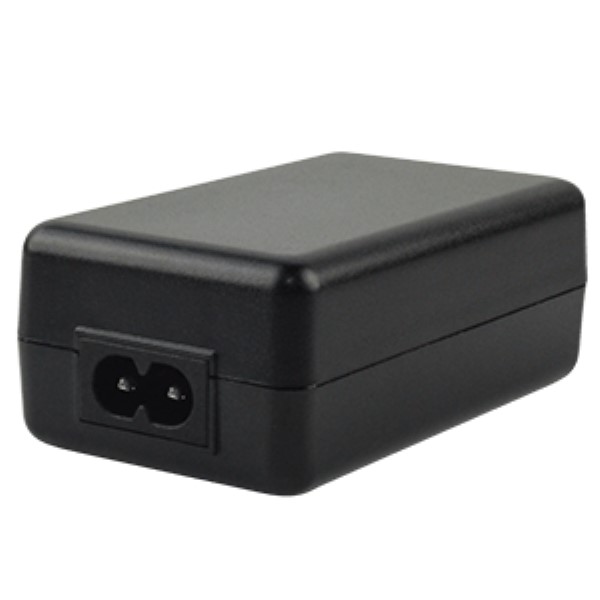

SDI18-12-UD-P5 by cui inc.
Image is representational - see mfr. specs
DATA SHEET

SDI18-12-UD-P5

CUI Inc.

AC/DC Adapter - Desktop - 19.2 Watts: 12V @ 1.6A - C14 Input - Lvl VI/T2

RoHS Compliant
Box Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
SDI18-12-UD-P5
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
60
Package Type:
Box
Safety Approvals:
CE, cUL, GS, PSE, TUV, UL
DC Input Voltage:
Not App
Minimum DC Input Voltage:
Not App
Input Frequency:
47 to 63 Hz
Input Voltage:
90 to 264Vac
Style:
Desktop Adapter
AC Input Voltage:
90 to 264
Grade:
Commercial
Output Voltage:
12 VDC
Maximum Input Voltage:
264Vac
Input/Output Type:
AC/DC
Operating Temperature:
0 to 40 °C
Ripple & Noise:
120 mV
Output Connector Type:
Barrel - Female
Mounting:
External
Load Regulation:
5.00 %
Power Rating:
19 W
Maximum Output Current:
1.6 A
Power Indicator:
No
Maximum Output Power:
19 W
Overload Protection:
Yes
Dimensions L x W x H:
100.0 x 50.0 x 33.0 mm
Family:
SDI18-U
Mounting Style:
External
Short Circuit Protection:
Yes
Power:
19 W
Line Regulation:
5.00 %
Dimensions L x W x H(in):
3.94 x 1.97 x 1.30 in
Dimension:
100 x 50 x 33 mm
Efficiency:
Not Spec'd
Thermal Protection:
No
Output Cord Length:
1.5m (59.1in)
Minimum Isolation Voltage:
3000Vac
AC Input Current - Maximum:
0.48A
Dimensions LxWxH:
3.94 x 1.97 x 1.3 in
Minimum Input Voltage:
90Vac
Typical Inrush Current:
50/60A(Max) at 100/230Vac
Package Type:
Desktop
Special Features:
CoC Tier 2 Compliant, DoE Level VI Efficiency
Maximum Input Current:
Not Spec'd
Minimum Load (Amps):
0
Input Connector Type:
IEC 320-C14
Minimum AC Input Voltage:
90
CoC Tier:
2
Number of Outputs:
1
AC Input Current - Typical:
Not Spec'd
Over Voltage Protection:
Yes
Output Current:
1.6 A
Output Connector Angle:
Straight
Safety Class:
None
Maximum DC Input Voltage:
Not App
Maximum AC Input Voltage:
264
Output Type:
Fixed
DOE Efficiency Level:
VI
Type:
Regulated-Switching
Adapter Color:
Black
MOPP:
Not App
Output Connector Polarity:
Center Positive
PFC:
No
Output Connector Diameters:
2.1 x 5.5 mm
Typical Hold-Up Time:
10ms(Min)
AC/DC Adapter - Desktop - 19.2 Watts: 12V @ 1.6A - C14 Input - Lvl VI/T2
Search Keywords:
SDI1812UDP5
IN STOCK: 0
MOQ for out of Stock Qty:
135
Factory Lead-Time
21 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
135
$31.04
$4,190.40
270
$16.43
$4,436.10
405
$11.56
$4,681.80
540 +
$11.33
$6,118.20
