ETSA120100UDC-P5RP-SZ by cui inc.
Image is representational - see mfr. specs

ETSA120100UDC-P5RP-SZ

CUI Inc.

AC/DC Adapter - Desktop - 12 Watts : 12V @ 1A - C8 Input - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETSA120100UDC-P5RP-SZ
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Thermal Protection:
No
Maximum Input Current:
Not Spec'd
Adapter Color:
Black
Input Frequency:
47 to 63 Hz
Maximum Output Power:
12 W
Over Voltage Protection:
Yes
Input Connector Type:
IEC 320-C8
Safety Class:
None
Maximum DC Input Voltage:
Not App
Dimensions LxWxH:
2.96 x 1.87 x 1.08 in
Power Indicator:
No
Maximum AC Input Voltage:
264
Minimum AC Input Voltage:
90
Output Voltage:
12 VDC
Number of Outputs:
1
Line Regulation:
5.00 %
Output Type:
Fixed
Output Connector Diameters:
2.1 x 5.5 mm
Minimum Isolation Voltage:
4242Vdc/3000Vac
DOE Efficiency Level:
V
Grade:
Commercial
Operating Temperature:
0 to 40 °C
Dimension:
75 x 47.5 x 27.3 mm
Maximum Input Voltage:
264Vac
AC Input Current - Maximum:
0.3A
Mounting:
External
Style:
Desktop Adapter
Output Connector Type:
Barrel - Female
Dimensions L x W x H:
75.0 x 47.5 x 27.3 mm
Input/Output Type:
AC/DC
MOPP:
Not App
Dimensions L x W x H(in):
2.96 x 1.87 x 1.08 in
Short Circuit Protection:
Yes
AC Input Current - Typical:
Not Spec'd
Overload Protection:
No
Output Connector Polarity:
Center Positive
Ripple & Noise:
150 mV
Family:
ETSA-12W-UD
Package Type:
Desktop
AC Input Voltage:
90 to 264
Minimum Load (Amps):
0
PFC:
No
Output Cord Length:
1.5m (59.1in)
DC Input Voltage:
Not App
Mounting Style:
External
Safety Approvals:
CE, cUL, GS, TUV, UL
Efficiency:
Not Spec'd
Output Connector Angle:
Right Angle
Power Rating:
12 W
Load Regulation:
5.00 %
Maximum Output Current:
1.0 A
CoC Tier:
No
Input Voltage:
90 to 264Vac
Type:
Regulated-Switching
Typical Inrush Current:
30/60A(Max) at 115/230Vac
Minimum DC Input Voltage:
Not App
Power:
12 W
Minimum Input Voltage:
90Vac
Typical Hold-Up Time:
Not Spec'd
Output Current:
1.0 A
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 12 Watts : 12V @ 1A - C8 Input - Lvl V
Search Keywords:
ETSA120100UDCP5RPSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

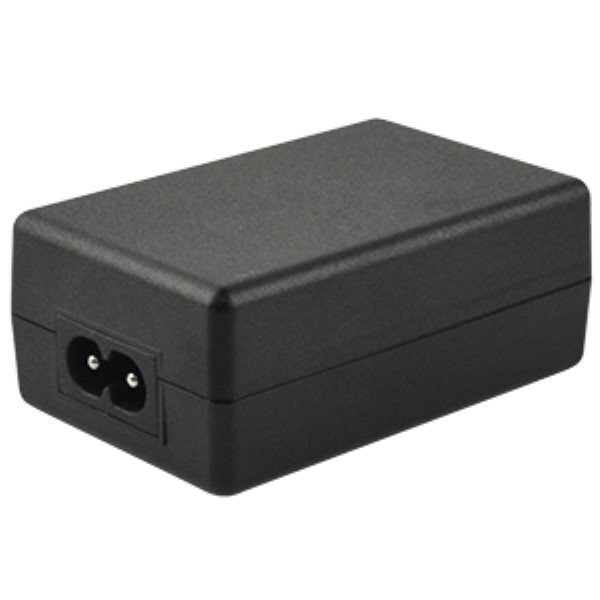

RECOMMENDED REPLACEMENT
SDI12-12-UDC-P5R
