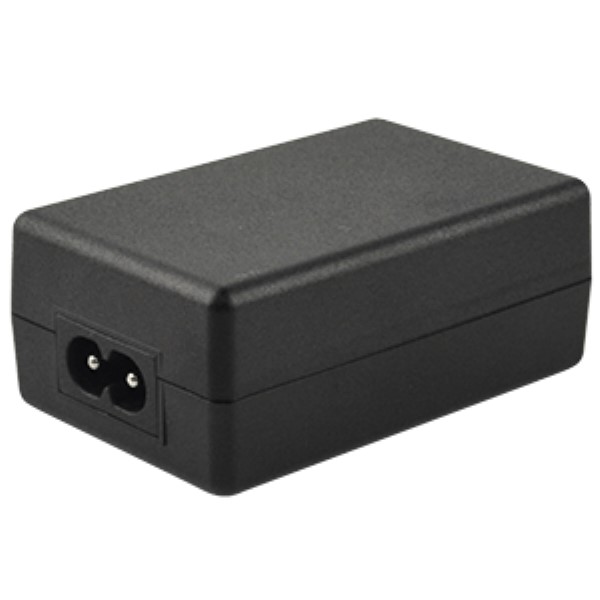

Image is representational - see mfr. specs

DATA SHEET

SDI12-12-UDC-P5R

CUI Inc.

AC/DC Adapter - Desktop - 12 Watts: 12V @ 1 A - C8 Input - Lvl VI/T2

RoHS Compliant

Box Packaging

Accessories

Certificate of Compliance Guarantee

SPECS
FULL DESCRIPTION

Product Attribute

Attribute Value Select Attribute

Products found: 0Show Similar

Supplier:

CUI Inc.

Part No:

SDI12-12-UDC-P5R

RoHS:

Yes

HTS:

8504409510

COO:

ECCN:

EAR99

Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

Package Type:

Box

Input Frequency:

47 to 63 Hz

Output Connector Angle:

Right Angle

Maximum Output Current:

1.0 A

Dimensions L x W x H:

75.0 x 48.0 x 30.0 mm

Dimensions L x W x H(in):

2.96 x 1.87 x 1.08 in

Grade:

Commercial

MOPP:

Not App

Maximum Input Voltage:

264Vac

Package Type:

Desktop

PFC:

CoC Tier:

Mounting:

External

Adapter Color:

Black

Minimum Input Voltage:

90Vac

Dimension:

75 x 48 x 30 mm

DC Input Voltage:

Not App

Family:

SDI12-UD

Maximum Output Power:

12 W

Short Circuit Protection:

Yes

Input/Output Type:

AC/DC

Minimum DC Input Voltage:

Not App

Efficiency:

Not Spec'd

Type:

Regulated-Switching

Load Regulation:

5.00 %

Output Connector Type:

Barrel - Female

Output Voltage:

12 VDC

Thermal Protection:

Minimum Isolation Voltage:

3000Vac

Output Cord Length:

1.5m (59.1in)

Overload Protection:

Yes

Operating Temperature:

0 to 40 °C

Power Indicator:

Minimum AC Input Voltage:

Power Rating:

12 W

Input Voltage:

90 to 264Vac

Output Connector Diameters:

2.1 x 5.5 mm

Ripple & Noise:

120 mV

Power:

12 W

DOE Efficiency Level:

AC Input Current - Typical:

Not Spec'd

Number of Outputs:

Maximum DC Input Voltage:

Not App

Typical Inrush Current:

60A(Max) at 240Vac

Typical Hold-Up Time:

Not Spec'd

Safety Class:

None

Maximum AC Input Voltage:

264

Maximum Input Current:

Not Spec'd

Line Regulation:

5.00 %

Input Connector Type:

IEC 320-C8

Dimensions LxWxH:

2.953 x 1.87 x 1.075 in

Output Type:

Fixed

AC Input Voltage:

90 to 264

AC Input Current - Maximum:

0.31A

Over Voltage Protection:

Yes

Minimum Load (Amps):

Style:

Desktop Adapter

Safety Approvals:

CE, cUL, GS, PSE, TUV, UL

Output Current:

1.0 A

Output Connector Polarity:

Center Positive

Special Features:

CoC Tier 2 Compliant, DoE Level VI Efficiency

Mounting Style:

External

AC/DC Adapter - Desktop - 12 Watts: 12V @ 1 A - C8 Input - Lvl VI/T2

Product Highlights:

Potential Applications:

Search Keywords:

SDI1212UDCP5R
