ETSA060300U-P5P-SZ by cui inc.
Image is representational - see mfr. specs

ETSA060300U-P5P-SZ

CUI Inc.

AC/DC Adapter - Desktop - 18 Watts: 6V @ 3A - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETSA060300U-P5P-SZ
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Dimension:
80.6 x 50 x 31 mm
Dimensions L x W x H(in):
3.18 x 1.97 x 1.22 in
Output Cord Length:
1.0m (39.4in)
Power Rating:
18 W
Overload Protection:
No
Dimensions L x W x H:
80.6 x 50.0 x 31.0 mm
Maximum Output Power:
18 W
Maximum Input Current:
Not Spec'd
Safety Approvals:
CE, cUL, GS, PSE, TUV, UL
Style:
Desktop Adapter
Number of Outputs:
1
Mounting:
External
Maximum Input Voltage:
264Vac
Input/Output Type:
AC/DC
Minimum DC Input Voltage:
Not App
Operating Temperature:
0 to 40 °C
Load Regulation:
5.00 %
DOE Efficiency Level:
V
PFC:
No
Maximum AC Input Voltage:
264
DC Input Voltage:
Not App
Efficiency:
Not Spec'd
Input Voltage:
90 to 264Vac
Output Connector Type:
Barrel - Female
Package Type:
Desktop
Mounting Style:
External
Minimum Input Voltage:
90Vac
Minimum AC Input Voltage:
90
Grade:
Commercial
Output Connector Polarity:
Center Positive
Type:
Regulated-Switching
Input Connector Type:
IEC 320-C14
Minimum Load (Amps):
0
Output Current:
3.0 A
Over Voltage Protection:
Yes
Output Connector Diameters:
2.1 x 5.5 mm
Ripple & Noise:
100 mV
Typical Inrush Current:
40/80A(Max) at 115/230Vac
Maximum DC Input Voltage:
Not App
Maximum Output Current:
3.0 A
Typical Hold-Up Time:
Not Spec'd
Family:
ETSA-18W-U
AC Input Current - Typical:
Not Spec'd
Thermal Protection:
No
Safety Class:
None
Power:
18 W
Input Frequency:
47 to 63 Hz
AC Input Voltage:
90 to 264
Output Type:
Fixed
MOPP:
Not App
Output Voltage:
6 VDC
Line Regulation:
1.00 %
Output Connector Angle:
Straight
Short Circuit Protection:
Yes
AC Input Current - Maximum:
0.5A
Minimum Isolation Voltage:
1500Vac
Adapter Color:
Black
Power Indicator:
No
Dimensions LxWxH:
3.18 x 1.97 x 1.22 in
CoC Tier:
No
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 18 Watts: 6V @ 3A - Lvl V
Search Keywords:
ETSA060300UP5PSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

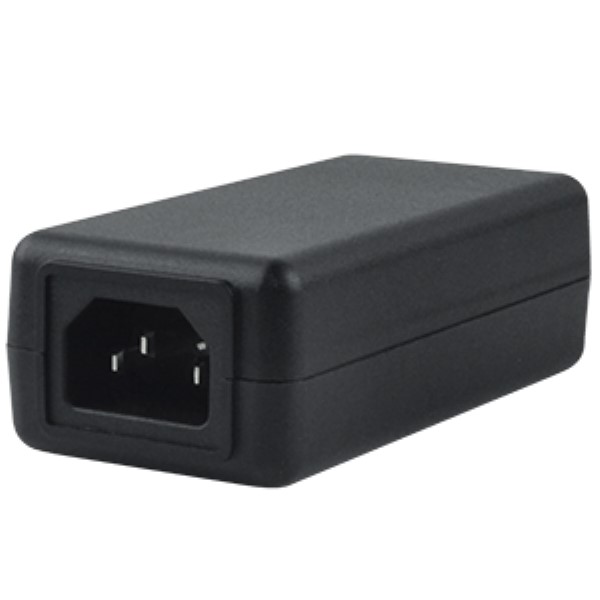

RECOMMENDED REPLACEMENT
SDI18-5.9-U-P5
SDI18-5.9-U-P5
