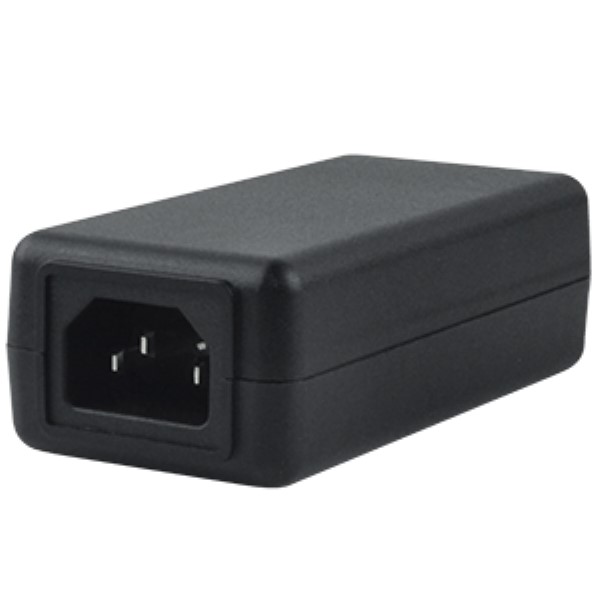

Image is representational - see mfr. specs

DATA SHEET

SDI18-5.9-U-P5

CUI Inc.

AC/DC Adapter - Desktop - 17.7 Watts: 5.9V @ 3A - C14 Input - Lvl VI/T2 .. see full description

RoHS Compliant

Box Packaging

Accessories

Certificate of Compliance Guarantee

SPECS
FULL DESCRIPTION

Product Attribute

Attribute Value Select Attribute

Products found: 0Show Similar

Supplier:

CUI Inc.

Part No:

SDI18-5.9-U-P5

RoHS:

Yes

HTS:

8504409510

COO:

ECCN:

EAR99

Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

Package Type:

Box

Dimensions L x W x H:

100.0 x 50.0 x 33.0 mm

Grade:

Commercial

Input/Output Type:

AC/DC

Minimum Isolation Voltage:

3000Vac

Safety Approvals:

CE, cUL, GS, PSE, TUV, UL

Maximum Input Voltage:

264Vac

PFC:

MOPP:

Not App

Number of Outputs:

Maximum AC Input Voltage:

264

Style:

Desktop Adapter

Output Connector Angle:

Straight

Package Type:

Desktop

Operating Temperature:

0 to 40 °C

Mounting:

External

Minimum AC Input Voltage:

Overload Protection:

Yes

DC Input Voltage:

Not App

Maximum Input Current:

Not Spec'd

Minimum DC Input Voltage:

Not App

Ripple & Noise:

100 mV

Output Voltage:

5.9 Vdc

Output Current:

3.0 A

Safety Class:

None

Family:

SDI18-U

Maximum Output Current:

3.0 A

Output Connector Polarity:

Center Positive

Short Circuit Protection:

Yes

DOE Efficiency Level:

Typical Hold-Up Time:

10ms(Min)

Mounting Style:

External

Output Connector Diameters:

2.1 x 5.5 mm

Minimum Load (Amps):

Type:

Regulated-Switching

Dimension:

100 x 50 x 33 mm

Minimum Input Voltage:

90Vac

CoC Tier:

Power Rating:

17.7 W

Adapter Color:

Black

Input Voltage:

90 to 264Vac

Special Features:

CoC Tier 2 Compliant, DoE Level VI Efficiency

Input Frequency:

47 to 63 Hz

Input Connector Type:

IEC 320-C14

AC Input Current - Maximum:

0.48A

AC Input Voltage:

90 to 264

Output Connector Type:

Barrel - Female

Efficiency:

Not Spec'd

Load Regulation:

5.00 %

Output Cord Length:

1.2m (47.3in)

Power:

17.7 W

Thermal Protection:

Typical Inrush Current:

50/60A(Max) at 100/230Vac

Dimensions L x W x H(in):

3.94 x 1.97 x 1.30 in

Dimensions LxWxH:

3.937 x 1.969 x 1.299 in

Maximum Output Power:

17.7 W

Power Indicator:

Output Type:

Fixed

Over Voltage Protection:

Yes

AC Input Current - Typical:

Not Spec'd

Maximum DC Input Voltage:

Not App

Line Regulation:

5.00 %

The SDI18-5.9-U-P5 is a reliable desktop AC/DC adapter designed by CUI Inc. It is a high-quality power solution capable of delivering 17.7 Watts of power with an output of 5.9V at 3A. This adapter features a convenient C14 input, ensuring compatibility with a wide range of devices. With its Level VI/T2 rating, it meets the highest energy efficiency standards, making it an eco-friendly choice. The SDI18-5.9-U-P5 is a versatile adapter suitable for various applications where a stable and efficient power supply is required.
