Image is representational - see mfr. specs
Product Attribute
Attribute Value
Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETSA060300UDC-P5P-SZ
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack
1
Input Voltage:
90 to 264Vac
AC Input Voltage:
90 to 264
DOE Efficiency Level:
V
Input Frequency:
47 to 63 Hz
Family:
ETSA-18W-U
Power Indicator:
No
AC Input Current - Maximum:
0.5A
MOPP:
Not App
Line Regulation:
1.00 %
Output Connector Diameters:
2.1 x 5.5 mm
Minimum Input Voltage:
90Vac
Type:
Regulated-Switching
Output Current:
3.0 A
Short Circuit Protection:
Yes
Load Regulation:
5.00 %
Grade:
Commercial
Safety Approvals:
CE, cUL, GS, PSE, TUV, UL
AC Input Current - Typical:
Not Spec'd
Thermal Protection:
No
Output Connector Angle:
Straight
Power:
18 W
PFC:
No
Output Voltage:
6 VDC
Minimum DC Input Voltage:
Not App
Over Voltage Protection:
Yes
Input Connector Type:
IEC 320-C8
Output Connector Type:
Barrel - Female
Minimum AC Input Voltage:
90
Mounting:
External
Operating Temperature:
0 to 40 °C
Package Type:
Desktop
Dimensions L x W x H(in):
3.18 x 1.97 x 1.22 in
Maximum Input Current:
Not Spec'd
Ripple & Noise:
100 mV
Output Cord Length:
1.0m (39.4in)
Overload Protection:
No
Minimum Load (Amps):
0
Maximum DC Input Voltage:
Not App
Safety Class:
None
Power Rating:
18 W
Style:
Desktop Adapter
Adapter Color:
Black
Dimension:
80.6 x 50 x 31 mm
Dimensions L x W x H:
80.6 x 50.0 x 31.0 mm
Input/Output Type:
AC/DC
Maximum AC Input Voltage:
264
Number of Outputs:
1
Output Connector Polarity:
Center Positive
Maximum Input Voltage:
264Vac
Minimum Isolation Voltage:
1500Vac
Typical Inrush Current:
40/80A(Max) at 115/230Vac
Maximum Output Current:
3.0 A
Mounting Style:
External
Typical Hold-Up Time:
Not Spec'd
Output Type:
Fixed
Maximum Output Power:
18 W
DC Input Voltage:
Not App
CoC Tier:
No
Efficiency:
Not Spec'd
Dimensions LxWxH:
3.18 x 1.97 x 1.22 in
Life Cycle:
Discontinued & Replaced

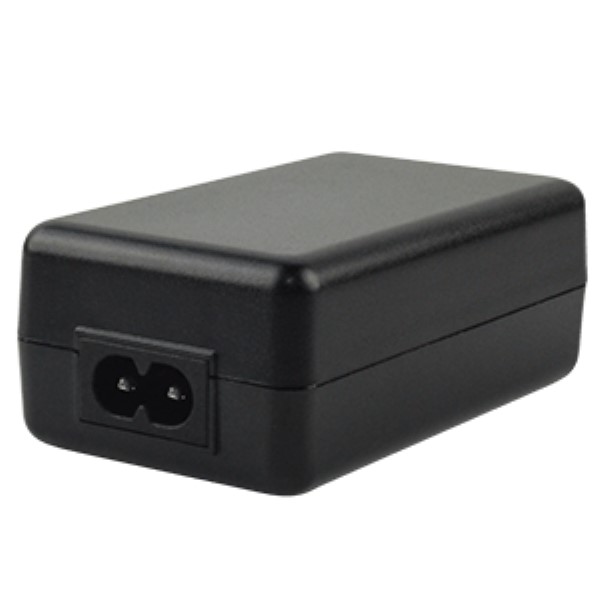

AC/DC Adapter - Desktop - 18 Watts: 6V @ 3A - C8 Input - Lvl V
Search Keywords:
ETSA060300UDCP5PSZ
This product is not in stock and cannot be back-ordered
