SDI18-5.9-UDC-P5 by cui inc.

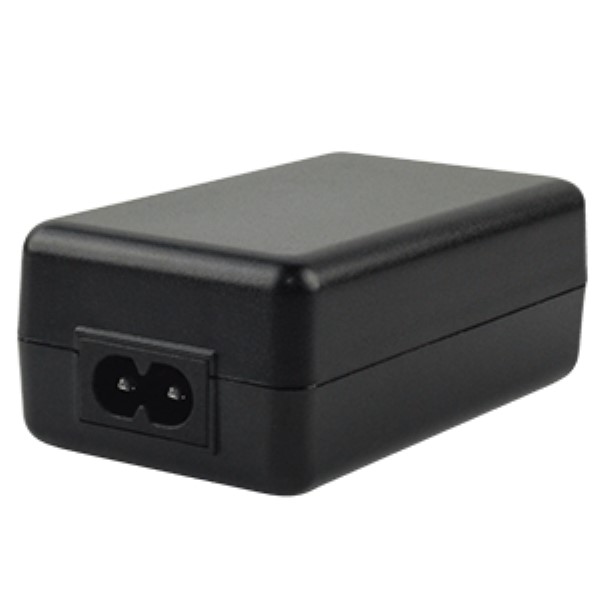

Image is representational - see mfr. specs
DATA SHEET

SDI18-5.9-UDC-P5

CUI Inc.

AC/DC Adapter - Desktop - 17.7 Watts: 5.9V @ 3A - C14 Input - Lvl VI/T2

RoHS Compliant
Box Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
SDI18-5.9-UDC-P5
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
30
Package Type:
Box
Power:
17.7 W
Style:
Desktop Adapter
Minimum DC Input Voltage:
Not App
Package Type:
Desktop
CoC Tier:
2
DC Input Voltage:
Not App
Number of Outputs:
1
Output Voltage:
5.9 Vdc
Efficiency:
Not Spec'd
Grade:
Commercial
Load Regulation:
5.00 %
Power Rating:
17.7 W
AC Input Current - Maximum:
0.48A
Safety Approvals:
CE, cUL, GS, PSE, TUV, UL
Maximum AC Input Voltage:
264
Minimum Load (Amps):
0
Input Voltage:
90 to 264Vac
Output Cord Length:
1.2m (47.3in)
AC Input Current - Typical:
Not Spec'd
Special Features:
CoC Tier 2 Compliant, DoE Level VI Efficiency
Maximum Output Current:
3.0 A
Maximum Output Power:
17.7 W
Line Regulation:
5.00 %
Ripple & Noise:
100 mV
MOPP:
Not App
Input/Output Type:
AC/DC
Output Connector Diameters:
2.1 x 5.5 mm
Dimensions LxWxH:
3.94 x 1.97 x 1.3 in
Short Circuit Protection:
Yes
Dimension:
100 x 50 x 33 mm
Minimum Isolation Voltage:
3000Vac
Mounting Style:
External
Typical Hold-Up Time:
10ms(Min)
Overload Protection:
Yes
Dimensions L x W x H(in):
3.94 x 1.97 x 1.30 in
Output Connector Angle:
Straight
Input Frequency:
47 to 63 Hz
Maximum DC Input Voltage:
Not App
Minimum Input Voltage:
90Vac
Over Voltage Protection:
Yes
DOE Efficiency Level:
VI
Dimensions L x W x H:
100.0 x 50.0 x 33.0 mm
Input Connector Type:
IEC 320-C14
Minimum AC Input Voltage:
90
AC Input Voltage:
90 to 264
Type:
Regulated-Switching
Operating Temperature:
0 to 40 °C
Mounting:
External
PFC:
No
Thermal Protection:
No
Maximum Input Voltage:
264Vac
Safety Class:
None
Adapter Color:
Black
Output Connector Polarity:
Center Positive
Typical Inrush Current:
50/60A(Max) at 100/230Vac
Output Current:
3.0 A
Power Indicator:
No
Output Type:
Fixed
Output Connector Type:
Barrel - Female
Maximum Input Current:
Not Spec'd
Family:
SDI18-U
AC/DC Adapter - Desktop - 17.7 Watts: 5.9V @ 3A - C14 Input - Lvl VI/T2
Search Keywords:
SDI1859UDCP5
IN STOCK: 0
MOQ for out of Stock Qty:
128
Factory Lead-Time
21 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
128
$46.83
$5,994.24
255
$24.81
$6,326.55
383
$17.04
$6,526.32
510 +
$16.70
$8,517.00
Please Note: Tariffs may apply for U.S. shipments
Product Guides
PDF 3D Model
PDF Datasheet
