ETSA050360UC-P5P-SZ by cui inc.
Image is representational - see mfr. specs

ETSA050360UC-P5P-SZ

CUI Inc.

AC/DC Adapter - Desktop - 18 Watts : 5V @ 3.6A - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETSA050360UC-P5P-SZ
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Maximum Input Voltage:
264Vac
Family:
ETSA-18W-U
Input Frequency:
47 to 63 Hz
MOPP:
Not App
Grade:
Commercial
Minimum DC Input Voltage:
Not App
Over Voltage Protection:
Yes
Maximum Output Current:
2.6 A
Input Voltage:
90 to 264Vac
Input Connector Type:
IEC 320-C14
AC Input Current - Typical:
Not Spec'd
DOE Efficiency Level:
V
Output Connector Diameters:
2.1 x 5.5 mm
Typical Inrush Current:
40/80A(Max) at 115/230Vac
Minimum AC Input Voltage:
90
Maximum DC Input Voltage:
Not App
Power Rating:
18 W
Output Current:
3.6 A
Maximum AC Input Voltage:
264
Efficiency:
Not Spec'd
Output Type:
Fixed
Dimension:
80.6 x 50 x 31 mm
Output Connector Angle:
Straight
Operating Temperature:
0 to 40 °C
Line Regulation:
5.00 %
Power:
18 W
Minimum Load (Amps):
0
Overload Protection:
No
PFC:
No
Maximum Input Current:
Not Spec'd
Safety Class:
None
Load Regulation:
5.00 %
Safety Approvals:
CE, cUL, GS, PSE, TUV, UL
Power Indicator:
No
Style:
Desktop Adapter
DC Input Voltage:
Not App
AC Input Voltage:
90 to 264
Short Circuit Protection:
Yes
Typical Hold-Up Time:
Not Spec'd
Thermal Protection:
No
Dimensions LxWxH:
3.18 x 1.97 x 1.22 in
Mounting Style:
External
Ripple & Noise:
100 mV
Dimensions L x W x H:
80.6 x 50.0 x 31.0 mm
Output Connector Polarity:
Center Positive
Input/Output Type:
AC/DC
Maximum Output Power:
18 W
AC Input Current - Maximum:
0.5A
Type:
Regulated-Switching
Minimum Isolation Voltage:
1500Vac
Output Connector Type:
Barrel - Female
Number of Outputs:
1
CoC Tier:
No
Minimum Input Voltage:
90Vac
Package Type:
Desktop
Output Cord Length:
1.0m (39.4in)
Output Voltage:
5 VDC
Adapter Color:
Black
Mounting:
External
Dimensions L x W x H(in):
3.18 x 1.97 x 1.22 in
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 18 Watts : 5V @ 3.6A - Lvl V
Search Keywords:
ETSA050360UCP5PSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

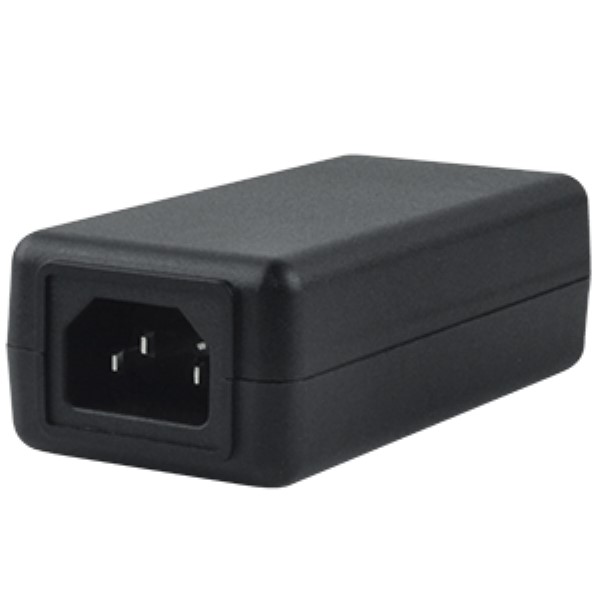

RECOMMENDED REPLACEMENT
SDI18-5-UC-P5
SDI18-5-UC-P5
VIEW PRODUCT
