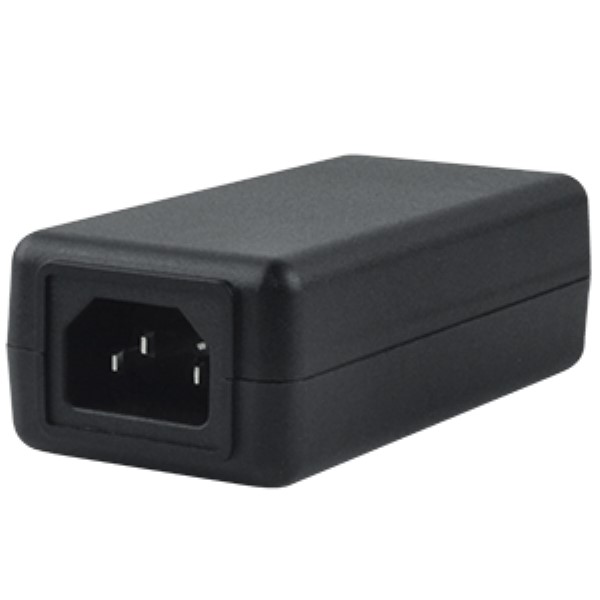

Image is representational - see mfr. specs

DATA SHEET

SDI18-5-UC-P5

CUI Inc.

AC/DC Adapter - Desktop - 15 Watts: 5V @ 3A - C14 Input - Lvl VI/T2

RoHS Compliant

Box Packaging

Accessories

Certificate of Compliance Guarantee

SPECS
FULL DESCRIPTION

Product Attribute

Attribute Value Select Attribute

Products found: 0Show Similar

Supplier:

CUI Inc.

Part No:

SDI18-5-UC-P5

RoHS:

Yes

HTS:

8504409510

COO:

ECCN:

EAR99

Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

Package Type:

Box

Special Features:

CoC Tier 2 Compliant, DoE Level VI Efficiency

Output Voltage:

5 VDC

AC Input Current - Maximum:

0.48A

Line Regulation:

5.00 %

Style:

Desktop Adapter

Output Connector Angle:

Straight

Thermal Protection:

Package Type:

Desktop

Mounting:

External

Maximum Output Power:

15 W

Adapter Color:

Black

Output Type:

Fixed

CoC Tier:

Maximum Input Current:

Not Spec'd

Overload Protection:

Yes

Dimensions LxWxH:

3.937 x 1.969 x 1.299 in

Input Frequency:

47 to 63 Hz

Mounting Style:

External

AC Input Voltage:

90 to 264

Maximum Output Current:

3.0 A

Output Connector Type:

Barrel - Female

Short Circuit Protection:

Yes

Number of Outputs:

DOE Efficiency Level:

Over Voltage Protection:

Yes

PFC:

Grade:

Commercial

Minimum Input Voltage:

90Vac

Dimension:

100 x 50 x 33 mm

Minimum Load (Amps):

Input Connector Type:

IEC 320-C14

Operating Temperature:

0 to 40 °C

Load Regulation:

5.00 %

Output Connector Polarity:

Center Positive

Maximum AC Input Voltage:

264

Power:

15 W

Dimensions L x W x H(in):

3.94 x 1.97 x 1.30 in

Typical Hold-Up Time:

10ms(Min)

Minimum AC Input Voltage:

Output Cord Length:

1.5m (59.1in)

Dimensions L x W x H:

100.0 x 50.0 x 33.0 mm

Output Current:

3.0 A

Efficiency:

Not Spec'd

Safety Approvals:

CE, cUL, GS, PSE, TUV, UL

Minimum DC Input Voltage:

Not App

Input/Output Type:

AC/DC

DC Input Voltage:

Not App

Minimum Isolation Voltage:

3000Vac

Output Connector Diameters:

2.1 x 5.5 mm

Ripple & Noise:

100 mV

Maximum Input Voltage:

264Vac

Maximum DC Input Voltage:

Not App

Family:

SDI18-U

Typical Inrush Current:

50/60A(Max) at 100/230Vac

Safety Class:

None

MOPP:

Not App

Power Rating:

15 W

Input Voltage:

90 to 264Vac

Type:

Regulated-Switching

Power Indicator:

AC Input Current - Typical:

Not Spec'd

AC/DC Adapter - Desktop - 15 Watts: 5V @ 3A - C14 Input - Lvl VI/T2

Product Highlights:

Potential Applications:

Search Keywords:

SDI185UCP5

This product is not in stock and cannot be back-ordered

This product is discontinued, but still in stock

This product has been discontinued by the supplier

Different packaging options available. See Alternatives

Possible Replacement options available. See Alternatives

This product is NOT RoHS Compliant. See Alternatives

End of Life: Final orders must be placed by

IN STOCK: 0

BONDED Quantity:

Manufacturer Stock:

0 can ship

On Order:

Stock lot only:

MOQ for out of Stock Qty:

Multiple:

Factory Lead-Time

21 Weeks can ship

This product is no longer being manufactured but there may be alternatives. We can help you, Contact Us.

VIEW PRODUCT

Min quantity should be greater than or equal () in order to activate the custom price. Otherwise you will get the normal price.

Price (USD)

Quantity

Unit Price

Ext. Price

$24.99

$22.30

$223.00

$21.63

$648.90

$20.71

$1,242.60

120

$19.86

$2,383.20

270

$19.33

$5,219.10

510 +

$19.03

$9,705.30

Suppliers Standard Package

Standard Packaging

Standard packaging is the minimum package size Eccoconnectors.com receives from the supplier. The minimum order quantity might be less than the supplier's standard packaging. The type of packaging (such as reel, tube, tray) may be subject to change when the product is divided into smaller quantities.

Click for Quote

Please Note: Tariffs may apply for U.S. shipments

Schedule Order

You may schedule release quantities and ship dates in the shopping cart.

Product Guides

3D Model

Datasheet
