ETMA240125UD-P6RP-IC by cui inc.

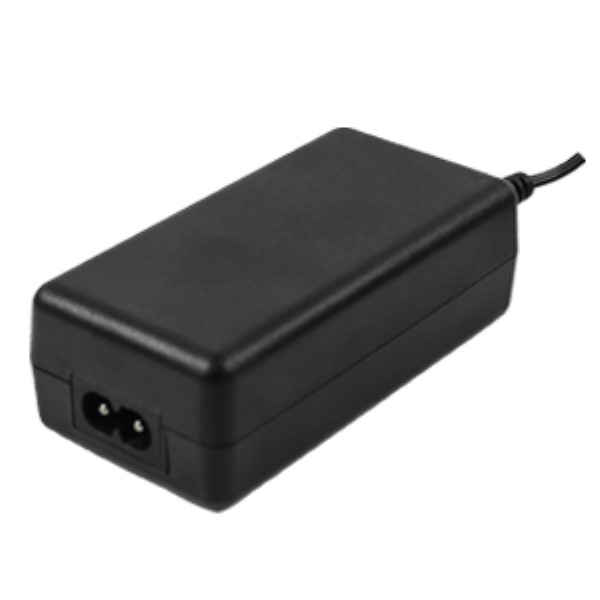

Image is representational - see mfr. specs
DATA SHEET

ETMA240125UD-P6RP-IC

CUI Inc.

AC/DC Adapter - Desktop - 30 Watts: 24V @ 1.25A - C8 Input - Medical - Lvl V

RoHS Compliant
Box Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETMA240125UD-P6RP-IC
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Package Type:
Box
Grade:
Medical
Maximum DC Input Voltage:
Not App
Output Type:
Fixed
Output Voltage:
24 VDC
Minimum AC Input Voltage:
90
Thermal Protection:
No
Adapter Color:
Black
Maximum Input Current:
Not Spec'd
Line Regulation:
1.00 %
AC Input Voltage:
90 to 264
Dimension:
110 x 50 x 30 mm
Dimensions LxWxH:
4.33 x 1.99 x1.19 in
Safety Approvals:
CE, cUL, TUV, UL
Maximum Output Current:
1.25 A
Typical Inrush Current:
50A(Max) at 240Vac
Safety Class:
None
Style:
Desktop Adapter
Input Connector Type:
IEC 320-C8
Mounting Style:
External
Power Indicator:
Yes
Minimum Load (Amps):
0
Number of Outputs:
1
Short Circuit Protection:
Yes
MOPP:
Not App
Input/Output Type:
AC/DC
DOE Efficiency Level:
V
Maximum Output Power:
30 W
Efficiency:
Not Spec'd
Output Connector Diameters:
2.5 x 5.5 mm
AC Input Current - Maximum:
0.6A
Output Current:
1.25 A
Maximum AC Input Voltage:
264
Power Rating:
30 W
Type:
Regulated-Switching
Maximum Input Voltage:
264Vac
Typical Hold-Up Time:
16 ms
DC Input Voltage:
Not App
Dimensions L x W x H:
110.0 x 50.0 x 30.0 mm
Output Connector Type:
Barrel - Female
Output Cord Length:
1.8m (70.9in)
AC Input Current - Typical:
Not Spec'd
Ripple & Noise:
240 mV
Overload Protection:
No
CoC Tier:
No
Mounting:
External
Input Voltage:
90 to 264Vac
Minimum DC Input Voltage:
Not App
Dimensions L x W x H(in):
4.33 x 1.99 x 1.19 in
PFC:
No
Output Connector Polarity:
Center Positive
Minimum Isolation Voltage:
5656Vdc
Operating Temperature:
0 to 40 °C
Special Features:
Low Leakage Current
Power:
30 W
Output Connector Angle:
Right Angle
Load Regulation:
2.00 %
Input Frequency:
47 to 63 Hz
Family:
ETMA-30W
Minimum Input Voltage:
90Vac
Package Type:
Desktop
Over Voltage Protection:
Yes
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 30 Watts: 24V @ 1.25A - C8 Input - Medical - Lvl V
Search Keywords:
ETMA240125UDP6RPIC
  This product is not in stock and cannot be back-ordered
