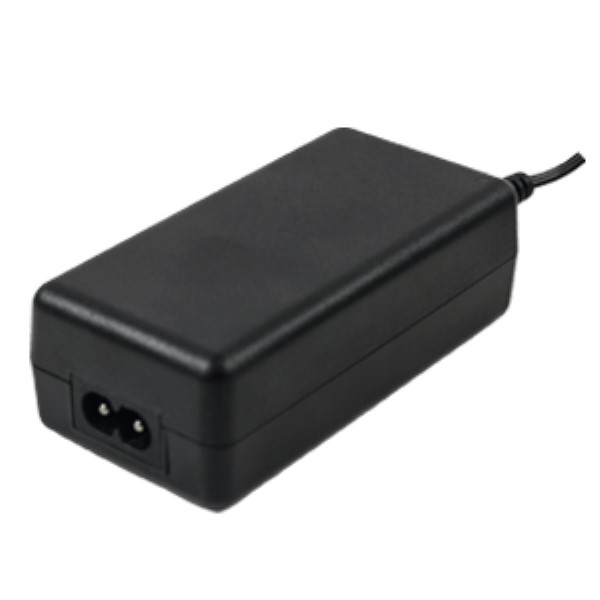

SDM36-24-UD-P6R by cui inc.
Image is representational - see mfr. specs
DATA SHEET

SDM36-24-UD-P6R

CUI Inc.

AC/DC Adapter - Desktop - 36 Watts: 24V @ 1.5A - Medical - C14 Input - Lvl VI

RoHS Compliant
Box Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
SDM36-24-UD-P6R
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
60
Package Type:
Box
AC Input Voltage:
90 to 264
Safety Class:
None
Output Connector Type:
Barrel - Female
Minimum Input Voltage:
90Vac
Output Type:
Fixed
MOPP:
No
Maximum DC Input Voltage:
Not App
Maximum Input Current:
1.0 A
AC Input Current - Typical:
Not Spec'd
Type:
Regulated-Switching
Input Connector Type:
IEC 320-C14
Input Voltage:
90 to 264Vac
Overload Protection:
Yes
Power:
36 W
Maximum Output Power:
36 W
Family:
SDM36-U
Thermal Protection:
No
Output Cord Length:
1.83m (72.1in)
Minimum Isolation Voltage:
4000Vac
Grade:
Medical
Over Voltage Protection:
Yes
Ripple & Noise:
240 mV
Package Type:
Desktop
Typical Inrush Current:
70A(Max) at 230Vac
Dimensions L x W x H(in):
3.90 x 1.97 x 1.30 in
Maximum Input Voltage:
264Vac
Mounting:
External
Line Regulation:
5.00 %
Style:
Desktop Adapter
Dimensions LxWxH:
3.9 x 1.97 x 1.3 in
Dimensions L x W x H:
100.0 x 50.0 x 33.0 mm
Adapter Color:
Black
Output Voltage:
24 VDC
Safety Approvals:
CE, cUL, PSE, TUV, UL
Short Circuit Protection:
Yes
Operating Temperature:
0 to 40 °C
CoC Tier:
No
Output Connector Angle:
Right Angle
DOE Efficiency Level:
VI
AC Input Current - Maximum:
1.0A
Input Frequency:
47 to 63 Hz
Number of Outputs:
1
Minimum DC Input Voltage:
Not App
Mounting Style:
External
Special Features:
DoE Level VI Efficiency
Output Current:
1.5 A
Maximum AC Input Voltage:
264
Output Connector Polarity:
Center Positive
PFC:
No
Load Regulation:
5.00 %
Power Rating:
36 W
Input/Output Type:
AC/DC
Minimum AC Input Voltage:
90
Dimension:
100 x 50 x 33 mm
DC Input Voltage:
Not App
Maximum Output Current:
1.5 A
Efficiency:
Not Spec'd
Minimum Load (Amps):
0
Output Connector Diameters:
2.5 x 5.5 mm
Typical Hold-Up Time:
Not Spec'd
Power Indicator:
Yes
AC/DC Adapter - Desktop - 36 Watts: 24V @ 1.5A - Medical - C14 Input - Lvl VI
Search Keywords:
SDM3624UDP6R
IN STOCK: 0
MOQ for out of Stock Qty:
255
Factory Lead-Time
21 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
255
$49.92
$12,729.60
510
$25.50
$13,005.00
765
$17.36
$13,280.40
1,020 +
$17.01
$17,350.20
