ETMA240125UD-P5RP-IC by cui inc.
Image is representational - see mfr. specs
DATA SHEET

ETMA240125UD-P5RP-IC

CUI Inc.

AC/DC Adapter - Desktop - 30 Watts: 24V @ 1.25A - C8 Input - Medical - Lvl V

RoHS Compliant
Box Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETMA240125UD-P5RP-IC
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Package Type:
Box
Input Voltage:
90 to 264Vac
AC Input Voltage:
90 to 264
Safety Class:
None
Special Features:
Low Leakage Current
Minimum Input Voltage:
90Vac
Type:
Regulated-Switching
Output Type:
Fixed
Minimum Load (Amps):
0
AC Input Current - Typical:
Not Spec'd
Output Connector Polarity:
Center Positive
Over Voltage Protection:
Yes
Output Connector Diameters:
2.1 x 5.5 mm
Dimensions LxWxH:
4.33 x 1.99 x1.19 in
Output Connector Type:
Barrel - Female
Thermal Protection:
No
Dimensions L x W x H(in):
4.33 x 1.99 x 1.19 in
Ripple & Noise:
240 mV
Adapter Color:
Black
Power:
30 W
Input Connector Type:
IEC 320-C8
Typical Hold-Up Time:
16 ms
Short Circuit Protection:
Yes
Output Cord Length:
1.8m (70.9in)
Output Connector Angle:
Right Angle
Minimum AC Input Voltage:
90
Dimension:
110 x 50 x 30 mm
Maximum Output Current:
1.25 A
Typical Inrush Current:
50A(Max) at 240Vac
Maximum Input Voltage:
264Vac
Maximum Output Power:
30 W
Output Voltage:
24 VDC
Minimum DC Input Voltage:
Not App
Style:
Desktop Adapter
Maximum Input Current:
Not Spec'd
Input Frequency:
47 to 63 Hz
Safety Approvals:
CE, cUL, TUV, UL
Output Current:
1.25 A
MOPP:
Not App
PFC:
No
Minimum Isolation Voltage:
5656Vdc
Dimensions L x W x H:
110.0 x 50.0 x 30.0 mm
DOE Efficiency Level:
V
Mounting Style:
External
Family:
ETMA-30W
CoC Tier:
No
Operating Temperature:
0 to 40 °C
AC Input Current - Maximum:
0.6A
Maximum AC Input Voltage:
264
Input/Output Type:
AC/DC
DC Input Voltage:
Not App
Line Regulation:
1.00 %
Overload Protection:
No
Efficiency:
Not Spec'd
Number of Outputs:
1
Load Regulation:
2.00 %
Package Type:
Desktop
Mounting:
External
Power Indicator:
Yes
Power Rating:
30 W
Grade:
Medical
Maximum DC Input Voltage:
Not App
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 30 Watts: 24V @ 1.25A - C8 Input - Medical - Lvl V
Search Keywords:
ETMA240125UDP5RPIC
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

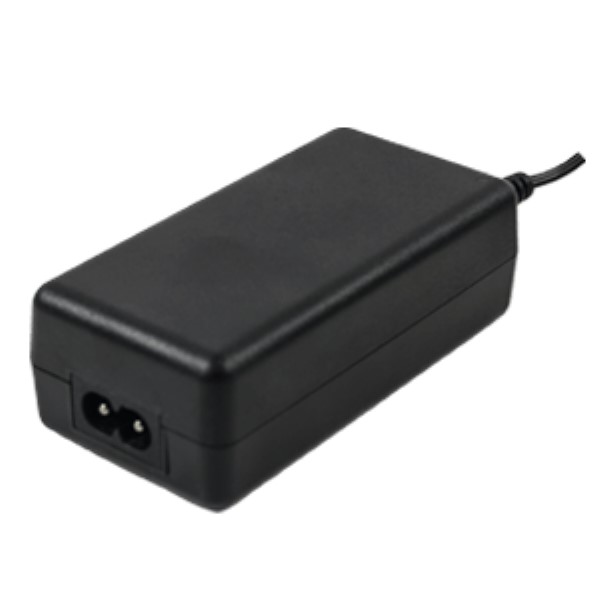

RECOMMENDED REPLACEMENT
SDM36-24-UD-P5R
SDM36-24-UD-P5R
VIEW PRODUCT
Product Guides
PDF 3D Model
PDF Datasheet
