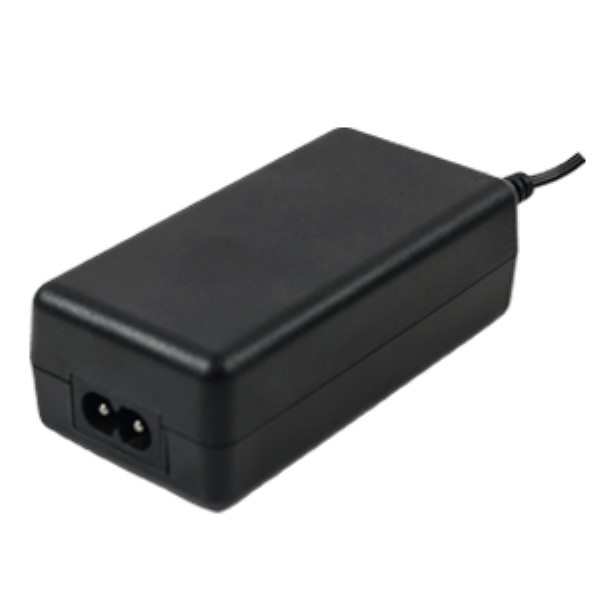

SDM36-24-UD-P5R by cui inc.
Image is representational - see mfr. specs
DATA SHEET

SDM36-24-UD-P5R

CUI Inc.

AC/DC Adapter - Desktop - 36 Watts: 24V @ 1.5A - Medical - C14 Input - Lvl VI

RoHS Compliant
Box Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
SDM36-24-UD-P5R
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
60
Package Type:
Box
Load Regulation:
5.00 %
Output Cord Length:
1.83m (72.1in)
Input Frequency:
47 to 63 Hz
Ripple & Noise:
240 mV
Input Voltage:
90 to 264Vac
Dimensions L x W x H:
100.0 x 50.0 x 33.0 mm
Dimension:
100 x 50 x 33 mm
Grade:
Medical
AC Input Voltage:
90 to 264
Output Connector Polarity:
Center Positive
Operating Temperature:
0 to 40 °C
MOPP:
No
Output Connector Diameters:
2.1 x 5.5 mm
Dimensions L x W x H(in):
3.90 x 1.97 x 1.30 in
Input Connector Type:
IEC 320-C14
DOE Efficiency Level:
VI
Minimum Input Voltage:
90Vac
Power Indicator:
Yes
Maximum Output Power:
36 W
Overload Protection:
Yes
Minimum AC Input Voltage:
90
Family:
SDM36-U
Thermal Protection:
No
Type:
Regulated-Switching
AC Input Current - Typical:
Not Spec'd
Maximum Output Current:
1.5 A
Output Voltage:
24 VDC
Mounting:
External
Output Connector Angle:
Right Angle
PFC:
No
Minimum DC Input Voltage:
Not App
Minimum Load (Amps):
0
Package Type:
Desktop
Over Voltage Protection:
Yes
Output Type:
Fixed
Minimum Isolation Voltage:
4000Vac
Number of Outputs:
1
Short Circuit Protection:
Yes
Safety Class:
None
Maximum DC Input Voltage:
Not App
Style:
Desktop Adapter
Output Connector Type:
Barrel - Female
Mounting Style:
External
Special Features:
DoE Level VI Efficiency
Input/Output Type:
AC/DC
Maximum AC Input Voltage:
264
Maximum Input Voltage:
264Vac
CoC Tier:
No
AC Input Current - Maximum:
1.0A
Dimensions LxWxH:
3.9 x 1.97 x 1.3 in
Power:
36 W
Adapter Color:
Black
Typical Hold-Up Time:
Not Spec'd
Line Regulation:
5.00 %
Power Rating:
36 W
Typical Inrush Current:
70A(Max) at 230Vac
Safety Approvals:
CE, cUL, PSE, TUV, UL
Output Current:
1.5 A
DC Input Voltage:
Not App
Efficiency:
Not Spec'd
Maximum Input Current:
1.0 A
AC/DC Adapter - Desktop - 36 Watts: 24V @ 1.5A - Medical - C14 Input - Lvl VI
Search Keywords:
SDM3624UDP5R
IN STOCK: 0
MOQ for out of Stock Qty:
255
Factory Lead-Time
21 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
255
$49.92
$12,729.60
510
$25.50
$13,005.00
765
$17.36
$13,280.40
1,020 +
$17.01
$17,350.20
