ETMA180165UD-P6P-IC by cui inc.
Image is representational - see mfr. specs
DATA SHEET

ETMA180165UD-P6P-IC

CUI Inc.

AC/DC Adapter - Desktop - 30 Watts: 18V @ 1.65A - C8 Input - Medical - Lvl V

RoHS Compliant
Box Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETMA180165UD-P6P-IC
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Package Type:
Box
Operating Temperature:
0 to 40 °C
AC Input Voltage:
90 to 264
Input Frequency:
47 to 63 Hz
Power:
30 W
Power Rating:
30 W
Grade:
Medical
Special Features:
Low Leakage Current
Maximum Input Current:
Not Spec'd
DOE Efficiency Level:
V
Line Regulation:
1.00 %
Adapter Color:
Black
Typical Inrush Current:
50A(Max) at 240Vac
Minimum Input Voltage:
90Vac
Dimensions L x W x H(in):
4.33 x 1.99 x 1.19 in
Efficiency:
Not Spec'd
Package Type:
Desktop
Ripple & Noise:
180 mV
Family:
ETMA-30W
PFC:
No
CoC Tier:
No
Output Connector Diameters:
2.5 x 5.5 mm
Dimensions L x W x H:
110.0 x 50.0 x 30.0 mm
Output Connector Type:
Barrel - Female
Output Type:
Fixed
Input Connector Type:
IEC 320-C8
Power Indicator:
Yes
AC Input Current - Typical:
Not Spec'd
Minimum DC Input Voltage:
Not App
Mounting Style:
External
Safety Class:
None
Style:
Desktop Adapter
Safety Approvals:
CE, cUL, TUV, UL
Overload Protection:
No
Output Voltage:
18 VDC
Maximum Output Power:
30 W
Output Connector Polarity:
Center Positive
Maximum Input Voltage:
264Vac
Load Regulation:
2.00 %
Output Current:
1.65 A
Mounting:
External
AC Input Current - Maximum:
0.6A
Minimum Isolation Voltage:
5656Vdc
Thermal Protection:
No
Output Connector Angle:
Straight
Minimum Load (Amps):
0
Dimension:
110 x 50 x 30 mm
Type:
Regulated-Switching
Maximum DC Input Voltage:
Not App
Maximum AC Input Voltage:
264
Output Cord Length:
1.8m (70.9in)
Short Circuit Protection:
Yes
Input/Output Type:
AC/DC
Minimum AC Input Voltage:
90
DC Input Voltage:
Not App
Input Voltage:
90 to 264Vac
Maximum Output Current:
1.65 A
Over Voltage Protection:
Yes
Number of Outputs:
1
Dimensions LxWxH:
4.33 x 1.99 x1.19 in
Typical Hold-Up Time:
16 ms
MOPP:
Not App
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 30 Watts: 18V @ 1.65A - C8 Input - Medical - Lvl V
Search Keywords:
ETMA180165UDP6PIC
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

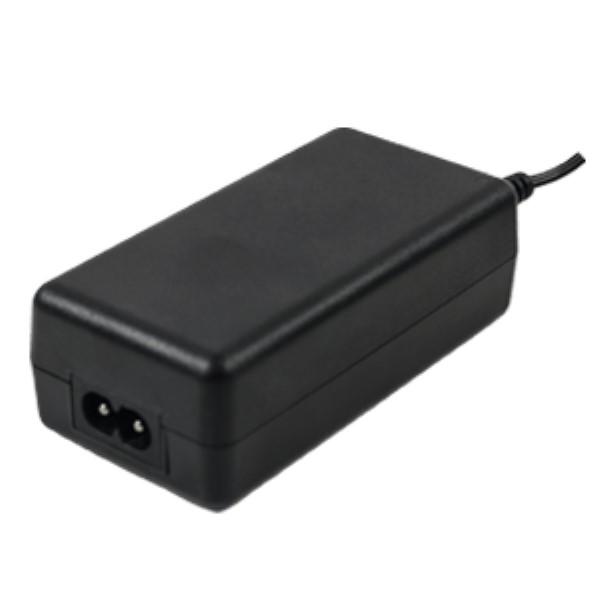

RECOMMENDED REPLACEMENT
