SDM36-18-UD-P6 by cui inc.

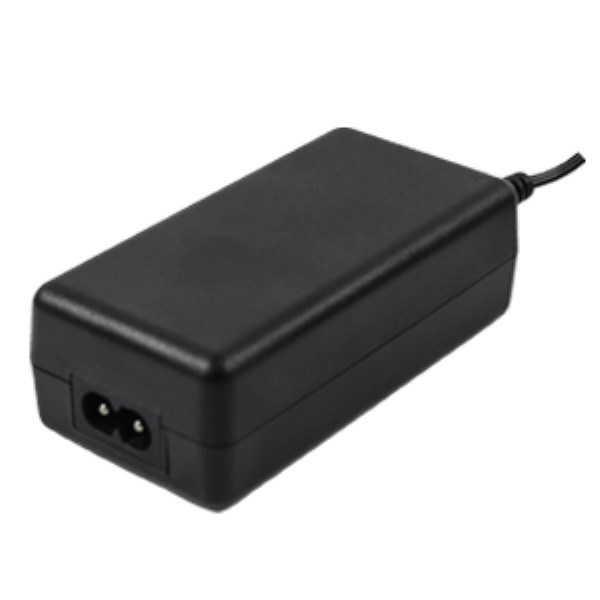

Image is representational - see mfr. specs
DATA SHEET

SDM36-18-UD-P6

CUI Inc.

AC/DC Adapter - Desktop - 36 Watts: 18V @2A - C14 Input - Lvl VI

RoHS Compliant
Box Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
SDM36-18-UD-P6
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
60
Package Type:
Box
Minimum DC Input Voltage:
Not App
Output Current:
2.0 A
Special Features:
DoE Level VI Efficiency
AC Input Current - Typical:
Not Spec'd
Input Voltage:
90 to 264Vac
Dimensions LxWxH:
3.9 x 1.97 x 1.3 in
Input Frequency:
47 to 63 Hz
Maximum Input Voltage:
264Vac
PFC:
No
Line Regulation:
5.00 %
Mounting:
External
Typical Hold-Up Time:
Not Spec'd
Efficiency:
Not Spec'd
Mounting Style:
External
Dimension:
100 x 50 x 33 mm
Input/Output Type:
AC/DC
Input Connector Type:
IEC 320-C14
AC Input Current - Maximum:
1.0A
Output Cord Length:
1.83m (72.1in)
Output Connector Polarity:
Center Positive
Maximum Output Current:
2.0 A
Power Indicator:
Yes
Over Voltage Protection:
Yes
Output Connector Angle:
Straight
Minimum Load (Amps):
0
CoC Tier:
No
Type:
Regulated-Switching
Grade:
Medical
Maximum AC Input Voltage:
264
DOE Efficiency Level:
VI
Operating Temperature:
0 to 40 °C
Number of Outputs:
1
Output Type:
Fixed
Short Circuit Protection:
Yes
AC Input Voltage:
90 to 264
Output Connector Diameters:
2.5 x 5.5 mm
Dimensions L x W x H(in):
3.90 x 1.97 x 1.30 in
Minimum AC Input Voltage:
90
Typical Inrush Current:
70A(Max) at 230Vac
Adapter Color:
Black
Minimum Input Voltage:
90Vac
Safety Class:
None
Load Regulation:
5.00 %
Power Rating:
36 W
Ripple & Noise:
180 mV
Output Voltage:
18 VDC
Package Type:
Desktop
Thermal Protection:
No
Dimensions L x W x H:
100.0 x 50.0 x 33.0 mm
MOPP:
No
Maximum Output Power:
36 W
DC Input Voltage:
Not App
Style:
Desktop Adapter
Maximum DC Input Voltage:
Not App
Overload Protection:
Yes
Power:
36 W
Minimum Isolation Voltage:
4000Vac
Safety Approvals:
CE, cUL, PSE, TUV, UL
Output Connector Type:
Barrel - Female
Family:
SDM36-U
Maximum Input Current:
1.0 A
AC/DC Adapter - Desktop - 36 Watts: 18V @2A - C14 Input - Lvl VI
Search Keywords:
SDM3618UDP6
IN STOCK: 0
MOQ for out of Stock Qty:
255
Factory Lead-Time
21 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
255
$49.92
$12,729.60
510
$25.50
$13,005.00
765
$17.36
$13,280.40
1,020 +
$17.01
$17,350.20
Please Note: Tariffs may apply for U.S. shipments
Product Guides
PDF 3D Model
PDF Datasheet
