ETMA150200UD-P6P-IC by cui inc.
Image is representational - see mfr. specs
DATA SHEET

ETMA150200UD-P6P-IC

CUI Inc.

AC/DC Adapter - Desktop - 30 Watts : 15V @ 2A - C8 Input - Medical - Lvl V

RoHS Compliant
Box Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
ETMA150200UD-P6P-IC
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
50
Package Type:
Box
Grade:
Medical
Output Connector Type:
Barrel - Female
Minimum AC Input Voltage:
90
Over Voltage Protection:
Yes
MOPP:
Not App
Maximum DC Input Voltage:
Not App
Output Type:
Fixed
Maximum Input Current:
Not Spec'd
Power:
30 W
Adapter Color:
Black
Maximum Output Current:
2.0 A
Thermal Protection:
No
AC Input Current - Maximum:
0.6A
Output Voltage:
15 VDC
Safety Class:
None
Input Connector Type:
IEC 320-C8
Minimum Load (Amps):
0
Short Circuit Protection:
Yes
Line Regulation:
1.00 %
CoC Tier:
No
Mounting:
External
Mounting Style:
External
Minimum Input Voltage:
90Vac
Style:
Desktop Adapter
Dimensions LxWxH:
4.33 x 1.99 x1.19 in
Package Type:
Desktop
Minimum Isolation Voltage:
5656Vdc
AC Input Voltage:
90 to 264
Maximum Output Power:
30 W
Maximum Input Voltage:
264Vac
Power Indicator:
Yes
Safety Approvals:
CE, cUL, TUV, UL
AC Input Current - Typical:
Not Spec'd
Dimensions L x W x H(in):
4.33 x 1.99 x 1.19 in
Load Regulation:
3.00 %
Input Frequency:
47 to 63 Hz
Typical Inrush Current:
50A(Max) at 240Vac
Output Connector Diameters:
2.5 x 5.5 mm
Special Features:
Low Leakage Current
Output Cord Length:
1.8m (70.9in)
Number of Outputs:
1
Output Current:
2.0 A
Operating Temperature:
0 to 40 °C
Ripple & Noise:
150 mV
Output Connector Angle:
Straight
DOE Efficiency Level:
V
Maximum AC Input Voltage:
264
DC Input Voltage:
Not App
PFC:
No
Efficiency:
Not Spec'd
Output Connector Polarity:
Center Positive
Typical Hold-Up Time:
16 ms
Type:
Regulated-Switching
Dimension:
110 x 50 x 30 mm
Input Voltage:
90 to 264Vac
Input/Output Type:
AC/DC
Overload Protection:
No
Family:
ETMA-30W
Minimum DC Input Voltage:
Not App
Power Rating:
30 W
Dimensions L x W x H:
110.0 x 50.0 x 30.0 mm
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Desktop - 30 Watts : 15V @ 2A - C8 Input - Medical - Lvl V
Search Keywords:
ETMA150200UDP6PIC
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments
RECOMMENDED REPLACEMENT

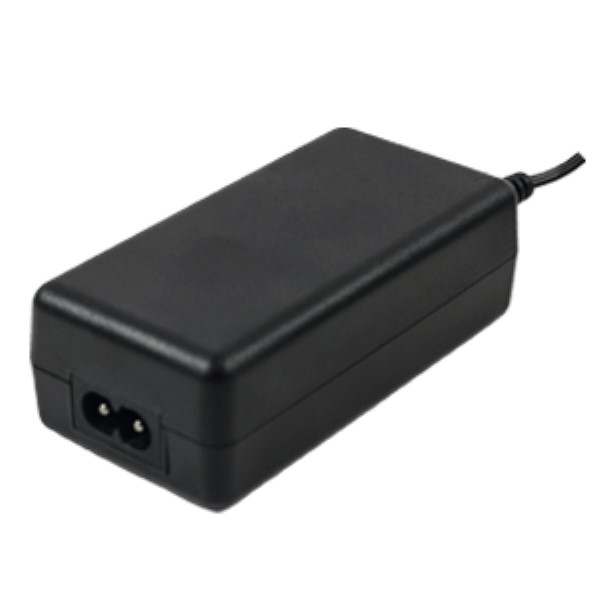

SDM36-15-UD-P6
SDM36-15-UD-P6
VIEW PRODUCT
Product Guides
PDF 3D Model
PDF Datasheet
