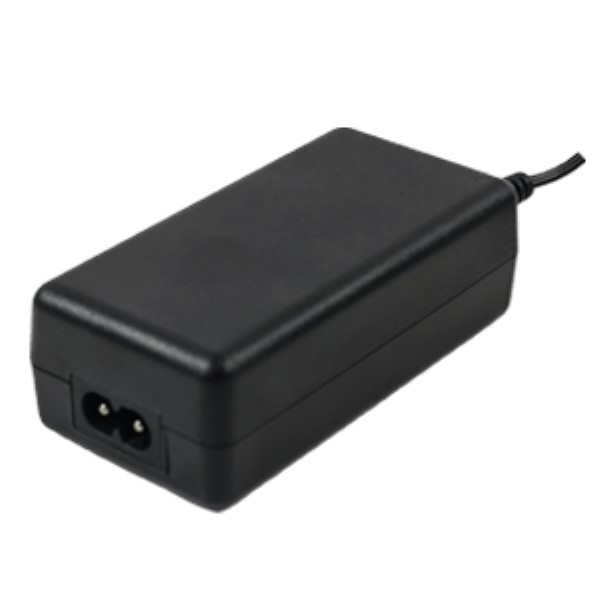

SDM36-15-UD-P6 by cui inc.
Image is representational - see mfr. specs
DATA SHEET

SDM36-15-UD-P6

CUI Inc.

AC/DC Adapter - Desktop - 36 Watts: 15V @ 2.4A - Medical - C14 Input - Lvl VI

RoHS Compliant
Box Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
SDM36-15-UD-P6
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
60
Package Type:
Box
AC Input Voltage:
90 to 264
Minimum Load (Amps):
0
Output Type:
Fixed
Type:
Regulated-Switching
Input Voltage:
90 to 264Vac
Dimension:
100 x 50 x 33 mm
Over Voltage Protection:
Yes
Output Current:
2.4 A
DOE Efficiency Level:
VI
Line Regulation:
5.00 %
Output Connector Angle:
Straight
Overload Protection:
Yes
Ripple & Noise:
150 mV
Special Features:
DoE Level VI Efficiency
Style:
Desktop Adapter
Package Type:
Desktop
AC Input Current - Typical:
Not Spec'd
Output Voltage:
15 VDC
Maximum Input Current:
1.0 A
Output Cord Length:
1.83m (72.1in)
Minimum AC Input Voltage:
90
Output Connector Diameters:
2.5 x 5.5 mm
Thermal Protection:
No
MOPP:
No
Power:
36 W
Operating Temperature:
0 to 40 °C
Dimensions L x W x H:
100.0 x 50.0 x 33.0 mm
Safety Class:
None
Typical Hold-Up Time:
Not Spec'd
Mounting Style:
External
Maximum Output Power:
36 W
Maximum Output Current:
2.4 A
Output Connector Polarity:
Center Positive
Mounting:
External
Maximum DC Input Voltage:
Not App
Safety Approvals:
CE, cUL, PSE, TUV, UL
Power Indicator:
Yes
Input/Output Type:
AC/DC
Input Frequency:
47 to 63 Hz
Minimum Isolation Voltage:
4000Vac
Minimum DC Input Voltage:
Not App
CoC Tier:
No
Short Circuit Protection:
Yes
Load Regulation:
5.00 %
Adapter Color:
Black
PFC:
No
Dimensions LxWxH:
3.9 x 1.97 x 1.3 in
Minimum Input Voltage:
90Vac
Family:
SDM36-U
Grade:
Medical
Power Rating:
36 W
Maximum AC Input Voltage:
264
Dimensions L x W x H(in):
3.90 x 1.97 x 1.30 in
Efficiency:
Not Spec'd
Typical Inrush Current:
70A(Max) at 230Vac
AC Input Current - Maximum:
1.0A
Maximum Input Voltage:
264Vac
Number of Outputs:
1
Output Connector Type:
Barrel - Female
DC Input Voltage:
Not App
Input Connector Type:
IEC 320-C14
AC/DC Adapter - Desktop - 36 Watts: 15V @ 2.4A - Medical - C14 Input - Lvl VI
Search Keywords:
SDM3615UDP6
IN STOCK: 0
MOQ for out of Stock Qty:
255
Factory Lead-Time
21 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
255
$49.92
$12,729.60
510
$25.50
$13,005.00
765
$17.36
$13,280.40
1,020 +
$17.01
$17,350.20
