DATA SHEET

ETMA150200UD-P5P-IC

CUI Inc.

AC/DC Adapter - Desktop - 30 Watts : 15V @ 2A - C8 Input - Medical - Lvl V

RoHS Compliant

Box Packaging

Accessories

Discontinued & Replaced

Accessories

Certificate of Compliance Guarantee

SPECS
FULL DESCRIPTION

Product Attribute

Attribute Value Select Attribute

Products found: 0Show Similar

Supplier:

CUI Inc.

Part No:

ETMA150200UD-P5P-IC

RoHS:

Yes

HTS:

8504409510

COO:

ECCN:

EAR99

Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

Package Type:

Box

DC Input Voltage:

Not App

Package Type:

Desktop

Input/Output Type:

AC/DC

Load Regulation:

3.00 %

Efficiency:

Not Spec'd

Overload Protection:

Dimension:

110 x 50 x 30 mm

Maximum Output Power:

30 W

Minimum Isolation Voltage:

5656Vdc

Short Circuit Protection:

Yes

Safety Approvals:

CE, cUL, TUV, UL

Output Current:

2.0 A

Minimum DC Input Voltage:

Not App

Input Voltage:

90 to 264Vac

AC Input Current - Typical:

Not Spec'd

PFC:

Output Cord Length:

1.8m (70.9in)

Output Connector Diameters:

2.1 x 5.5 mm

Output Voltage:

15 VDC

CoC Tier:

AC Input Current - Maximum:

0.6A

Minimum Load (Amps):

Minimum AC Input Voltage:

Family:

ETMA-30W

Typical Hold-Up Time:

16 ms

Power Rating:

30 W

Input Connector Type:

IEC 320-C8

Dimensions L x W x H:

110.0 x 50.0 x 30.0 mm

Maximum DC Input Voltage:

Not App

Output Type:

Fixed

Over Voltage Protection:

Yes

MOPP:

Not App

DOE Efficiency Level:

Operating Temperature:

0 to 40 °C

Output Connector Angle:

Straight

Style:

Desktop Adapter

Mounting Style:

External

Output Connector Polarity:

Center Positive

Number of Outputs:

Power:

30 W

AC Input Voltage:

90 to 264

Maximum Input Current:

Not Spec'd

Special Features:

Low Leakage Current

Power Indicator:

Yes

Minimum Input Voltage:

90Vac

Maximum Input Voltage:

264Vac

Dimensions LxWxH:

4.33 x 1.99 x1.19 in

Mounting:

External

Output Connector Type:

Barrel - Female

Input Frequency:

47 to 63 Hz

Dimensions L x W x H(in):

4.33 x 1.99 x 1.19 in

Safety Class:

None

Ripple & Noise:

150 mV

Thermal Protection:

Maximum AC Input Voltage:

264

Type:

Regulated-Switching

Line Regulation:

1.00 %

Typical Inrush Current:

50A(Max) at 240Vac

Grade:

Medical

Adapter Color:

Black

Maximum Output Current:

2.0 A

Life Cycle:

Discontinued & Replaced

AC/DC Adapter - Desktop - 30 Watts : 15V @ 2A - C8 Input - Medical - Lvl V

Product Highlights:

Potential Applications:

Search Keywords:

ETMA150200UDP5PIC

This product is not in stock and cannot be back-ordered

This product is discontinued, but still in stock

This product is not in stock and cannot be back-ordered

Different packaging options available. See Alternatives

Possible Replacement options available. See Alternatives

This product is NOT RoHS Compliant. See Alternatives

End of Life: Final orders must be placed by 04/16/2024

IN STOCK: 0

BONDED Quantity:

Manufacturer Stock:

0 can ship

On Order:

Stock lot only:

MOQ for out of Stock Qty:

Multiple:

This product is no longer being manufactured but there may be alternatives. We can help you, Contact Us.

VIEW PRODUCT

Min quantity should be greater than or equal () in order to activate the custom price. Otherwise you will get the normal price.

Price (USD)

Quantity

Unit Price

Ext. Price

$57.40

$36.04

$360.40

$35.26

$881.50

$34.53

$1,726.50

$34.02

$2,143.26

125

$33.51

$4,188.75

188

$33.00

$6,204.00

250 +

$32.51

$8,127.50

Suppliers Standard Package

Standard Packaging

Standard packaging is the minimum package size Eccoconnectors.com receives from the supplier. The minimum order quantity might be less than the supplier's standard packaging. The type of packaging (such as reel, tube, tray) may be subject to change when the product is divided into smaller quantities.

Click for Quote

Please Note: Tariffs may apply for U.S. shipments

Schedule Order

You may schedule release quantities and ship dates in the shopping cart.

RECOMMENDED REPLACEMENT

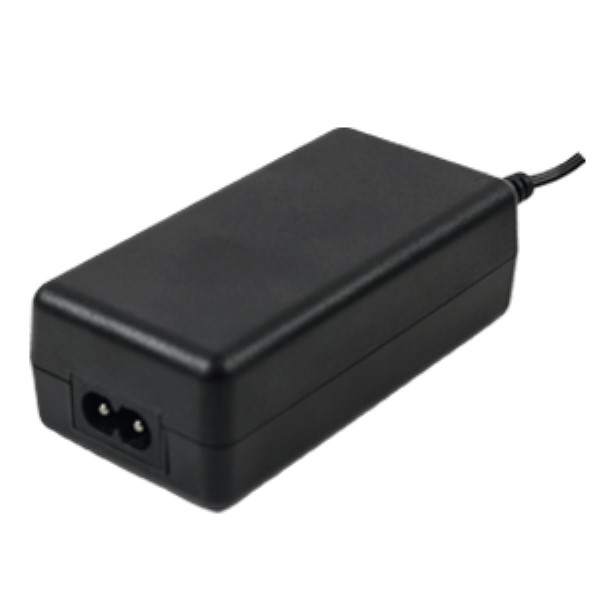

SDM36-15-UD-P5
