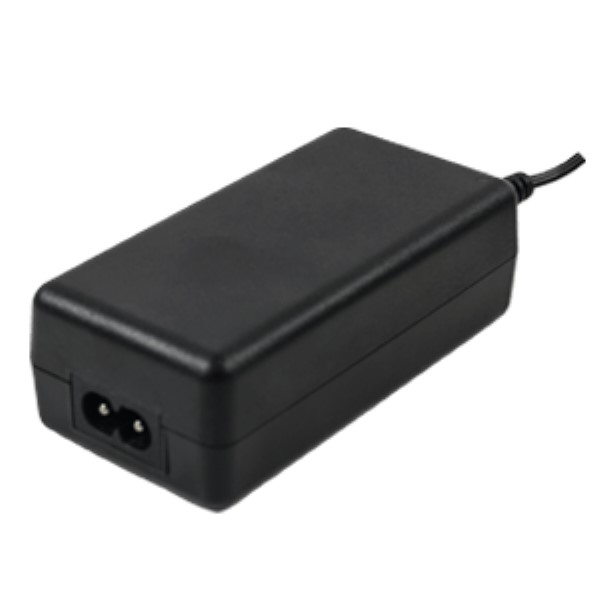

SDM36-15-UD-P5 by cui inc.
Image is representational - see mfr. specs
DATA SHEET

SDM36-15-UD-P5

CUI Inc.

AC/DC Adapter - Desktop - 36 Watts: 15V @ 2.4A - Medical - C14 Input - Lvl VI

RoHS Compliant
Box Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
SDM36-15-UD-P5
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
60
Package Type:
Box
Output Cord Length:
1.83m (72.1in)
Input Frequency:
47 to 63 Hz
Operating Temperature:
0 to 40 °C
Dimensions LxWxH:
3.9 x 1.97 x 1.3 in
Dimension:
100 x 50 x 33 mm
AC Input Current - Typical:
Not Spec'd
Minimum AC Input Voltage:
90
Minimum DC Input Voltage:
Not App
Maximum DC Input Voltage:
Not App
Over Voltage Protection:
Yes
Input Voltage:
90 to 264Vac
Maximum Output Current:
2.4 A
Output Current:
2.4 A
Input Connector Type:
IEC 320-C14
Output Connector Diameters:
2.1 x 5.5 mm
Output Connector Polarity:
Center Positive
Output Connector Angle:
Straight
DC Input Voltage:
Not App
Dimensions L x W x H:
100.0 x 50.0 x 33.0 mm
Efficiency:
Not Spec'd
Line Regulation:
5.00 %
Type:
Regulated-Switching
Output Type:
Fixed
DOE Efficiency Level:
VI
Maximum AC Input Voltage:
264
Special Features:
DoE Level VI Efficiency
Load Regulation:
5.00 %
Style:
Desktop Adapter
Minimum Load (Amps):
0
Dimensions L x W x H(in):
3.90 x 1.97 x 1.30 in
Safety Class:
None
Thermal Protection:
No
PFC:
No
Overload Protection:
Yes
Short Circuit Protection:
Yes
Ripple & Noise:
150 mV
AC Input Voltage:
90 to 264
Typical Hold-Up Time:
Not Spec'd
Typical Inrush Current:
70A(Max) at 230Vac
Family:
SDM36-U
Mounting Style:
External
Safety Approvals:
CE, cUL, PSE, TUV, UL
Output Connector Type:
Barrel - Female
Grade:
Medical
Input/Output Type:
AC/DC
AC Input Current - Maximum:
1.0A
Maximum Input Voltage:
264Vac
Power Indicator:
Yes
MOPP:
No
Maximum Output Power:
36 W
Number of Outputs:
1
CoC Tier:
No
Minimum Input Voltage:
90Vac
Package Type:
Desktop
Adapter Color:
Black
Output Voltage:
15 VDC
Maximum Input Current:
1.0 A
Power:
36 W
Power Rating:
36 W
Minimum Isolation Voltage:
4000Vac
Mounting:
External
AC/DC Adapter - Desktop - 36 Watts: 15V @ 2.4A - Medical - C14 Input - Lvl VI
Search Keywords:
SDM3615UDP5
IN STOCK: 0
MOQ for out of Stock Qty:
255
Factory Lead-Time
21 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
255
$49.92
$12,729.60
510
$25.50
$13,005.00
765
$17.36
$13,280.40
1,020 +
$17.01
$17,350.20
Please Note: Tariffs may apply for U.S. shipments
Product Guides
PDF 3D Model
PDF Datasheet
