EPSA240100U-P5N-SZ by cui inc.
Image is representational - see mfr. specs

EPSA240100U-P5N-SZ

CUI Inc.

AC/DC Adapter - Wall Mount - 24 Watts: 24V @ 1A - NA Blades - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
EPSA240100U-P5N-SZ
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Output Type:
Fixed
Minimum Load (Amps):
0
Maximum Output Power:
24 W
Output Connector Diameters:
2.1 x 5.5 mm
Input Voltage:
90 to 264Vac
AC Input Current - Typical:
Not Spec'd
Minimum Input Voltage:
90Vac
Minimum AC Input Voltage:
90
Mounting Style:
External
Output Connector Type:
Barrel - Female
Typical Hold-Up Time:
Not Spec'd
Ripple & Noise:
240 mV
Input Connector Type:
NA Blades (U.S. and Others)
Output Current:
1.0 A
Output Cord Length:
1.53m (60.3in)
Package Type:
Wall Plug
Dimensions L x W x H(in):
3.15 x 1.38 x 2.12 in
Minimum Isolation Voltage:
4242Vdc/3000Vac
Dimension:
80 x 35 x 53.6 mm
Output Connector Polarity:
Center Negative
Output Connector Angle:
Straight
Power:
24 W
Dimensions LxWxH:
3.15 x 1.38 x 2.12 in
Line Regulation:
1.00 %
DC Input Voltage:
Not App
Power Indicator:
No
MOPP:
Not App
Overload Protection:
No
AC Input Voltage:
90 to 264
Over Voltage Protection:
No
Output Voltage:
24 VDC
Maximum AC Input Voltage:
264
Power Rating:
24 W
Maximum DC Input Voltage:
Not App
Safety Approvals:
cUL, UL
Load Regulation:
5.00 %
Family:
EPSA-24W
Minimum DC Input Voltage:
Not App
Short Circuit Protection:
Yes
Typical Inrush Current:
50/100A(Max) at 115/230Vac
Mounting:
External
Number of Outputs:
1
Adapter Color:
Black
Dimensions L x W x H:
80.0 x 35.0 x 53.6 mm
Maximum Input Voltage:
264Vac
DOE Efficiency Level:
V
Maximum Output Current:
No
Input Frequency:
47 to 63 Hz
Operating Temperature:
0 to 40 °C
Grade:
Commercial
Maximum Input Current:
Not Spec'd
Type:
Regulated-Switching
AC Input Current - Maximum:
0.8A
CoC Tier:
No
PFC:
No
Thermal Protection:
No
Efficiency:
Not Spec'd
Style:
WallMount
Safety Class:
None
Input/Output Type:
AC/DC
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Wall Mount - 24 Watts: 24V @ 1A - NA Blades - Lvl V
Search Keywords:
EPSA240100UP5NSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

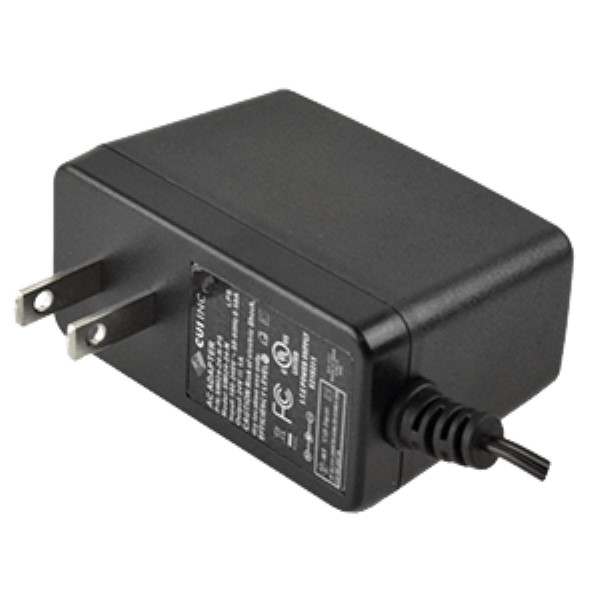

RECOMMENDED REPLACEMENT
SWI24-24-N-N5
