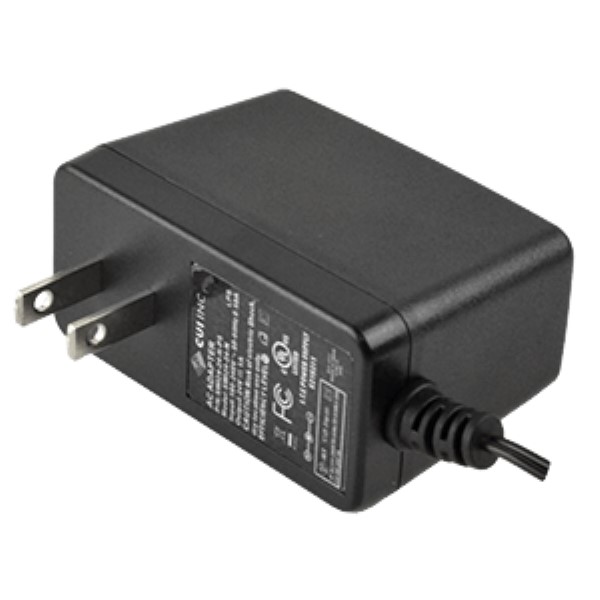

SWI24-24-N-N5 by cui inc.
Image is representational - see mfr. specs
DATA SHEET

SWI24-24-N-N5

CUI Inc.

AC/DC Adapter - Wall Mount - 24 Watts: 24V @ 1A - Lvl VI/T2 - NA Input Blades - Lvl VI

RoHS Compliant
Box Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
SWI24-24-N-N5
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Package Type:
Box
Input Frequency:
47 to 63 Hz
Safety Approvals:
cUL, PSE, UL
Dimensions LxWxH:
2.835 x 1.339 x 2.0048 in
Package Type:
Wall Plug
MOPP:
Not App
Dimensions L x W x H:
72.0 x 34.0 x 52.0 mm
Maximum Input Voltage:
264Vac
AC Input Current - Typical:
Not Spec'd
Minimum DC Input Voltage:
Not App
Ripple & Noise:
240 mV
Output Cord Length:
1.5m (59.1in)
Maximum Output Power:
24 W
Minimum Isolation Voltage:
3000Vac
Over Voltage Protection:
Yes
Dimensions L x W x H(in):
2.84 x 1.34 x 2.01 in
Power:
24 W
Minimum AC Input Voltage:
90
Maximum DC Input Voltage:
Not App
Typical Hold-Up Time:
10ms(Min)
Output Current:
1.0 A
Output Connector Angle:
Straight
Efficiency:
Not Spec'd
Output Type:
Fixed
Power Rating:
24 W
DOE Efficiency Level:
VI
Thermal Protection:
No
Operating Temperature:
0 to 40 °C
Line Regulation:
5.00 %
Input Connector Type:
NA Blades (U.S. and Others)
Minimum Load (Amps):
0
Load Regulation:
5.00 %
Input Voltage:
90 to 264Vac
Output Connector Diameters:
2.1 x 5.5 mm
DC Input Voltage:
Not App
Overload Protection:
Yes
Maximum AC Input Voltage:
264
Short Circuit Protection:
Yes
Mounting Style:
External
Special Features:
DoE Level VI Efficiency
Output Voltage:
24 VDC
AC Input Voltage:
90 to 264
Grade:
Commercial
Input/Output Type:
AC/DC
AC Input Current - Maximum:
0.58A
Dimension:
72 x 34 x 52 mm
Power Indicator:
No
PFC:
No
Maximum Input Current:
0.58 A
Output Connector Type:
Barrel - Female
Number of Outputs:
1
CoC Tier:
No
Minimum Input Voltage:
90Vac
Style:
WallMount
Adapter Color:
Black
Typical Inrush Current:
60A(Max) at 230Vac
Safety Class:
None
Family:
SWI24-N
Maximum Output Current:
1.0 A
Type:
Regulated-Switching
Mounting:
External
Output Connector Polarity:
Center Negative
AC/DC Adapter - Wall Mount - 24 Watts: 24V @ 1A - Lvl VI/T2 - NA Input Blades - Lvl VI
Search Keywords:
SWI2424NN5
IN STOCK: 0
MOQ for out of Stock Qty:
75
Factory Lead-Time
21 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
5
$33.55
$167.75
25
$33.05
$826.25
50
$32.55
$1,627.50
75
$32.06
$2,404.50
150
$16.97
$2,545.50
225
$11.94
$2,686.50
300 +
$11.71
$3,513.00
Please Note: Tariffs may apply for U.S. shipments
Product Guides
PDF 3D Model
PDF Datasheet
