EPSA150160U-P5P-SZ by cui inc.
Image is representational - see mfr. specs

EPSA150160U-P5P-SZ

CUI Inc.

AC/DC Adapter - Wall Mount - 24 Watts: 15V @ 1.6A - NA Blades - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
EPSA150160U-P5P-SZ
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Minimum DC Input Voltage:
Not App
Input/Output Type:
AC/DC
Style:
WallMount
Number of Outputs:
1
Power Rating:
24 W
Overload Protection:
No
Maximum AC Input Voltage:
264
AC Input Current - Maximum:
0.8A
Mounting:
External
Family:
EPSA-24W
Typical Hold-Up Time:
Not Spec'd
Maximum Output Power:
24 W
Over Voltage Protection:
No
Short Circuit Protection:
Yes
Power:
24 W
Dimensions LxWxH:
3.15 x 1.38 x 2.12 in
Power Indicator:
No
CoC Tier:
No
Load Regulation:
5.00 %
Adapter Color:
Black
Maximum Output Current:
No
Output Current:
1.6 A
Maximum Input Voltage:
264Vac
Output Type:
Fixed
Minimum Isolation Voltage:
4242Vdc/3000Vac
Output Voltage:
15 VDC
Line Regulation:
1.00 %
Operating Temperature:
0 to 40 °C
Ripple & Noise:
150 mV
Input Connector Type:
NA Blades (U.S. and Others)
Minimum Input Voltage:
90Vac
Grade:
Commercial
Dimensions L x W x H:
80.0 x 35.0 x 53.6 mm
Typical Inrush Current:
50/100A(Max) at 115/230Vac
DOE Efficiency Level:
V
Dimensions L x W x H(in):
3.15 x 1.38 x 2.12 in
Dimension:
80 x 35 x 53.6 mm
Thermal Protection:
No
Output Connector Type:
Barrel - Female
PFC:
No
DC Input Voltage:
Not App
Efficiency:
Not Spec'd
Safety Approvals:
cUL, UL
Maximum DC Input Voltage:
Not App
Output Cord Length:
1.53m (60.3in)
Minimum Load (Amps):
0
Safety Class:
None
AC Input Current - Typical:
Not Spec'd
Package Type:
Wall Plug
Output Connector Polarity:
Center Positive
Mounting Style:
External
Type:
Regulated-Switching
Output Connector Diameters:
2.1 x 5.5 mm
Input Voltage:
90 to 264Vac
Minimum AC Input Voltage:
90
MOPP:
Not App
Input Frequency:
47 to 63 Hz
Maximum Input Current:
Not Spec'd
Output Connector Angle:
Straight
AC Input Voltage:
90 to 264
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Wall Mount - 24 Watts: 15V @ 1.6A - NA Blades - Lvl V
Search Keywords:
EPSA150160UP5PSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

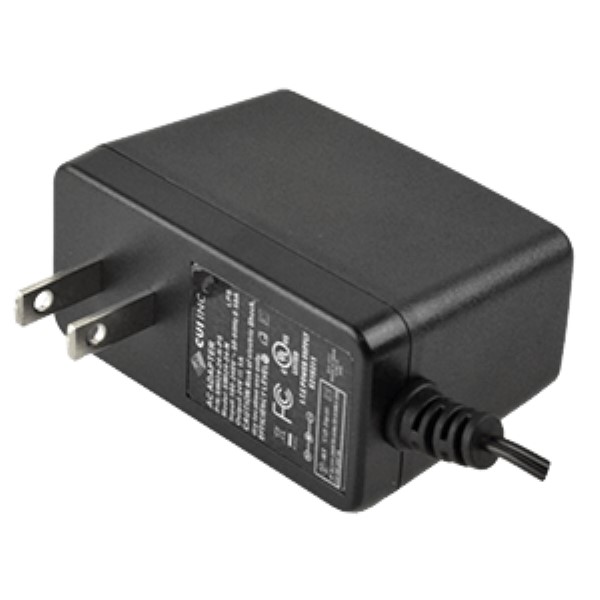

RECOMMENDED REPLACEMENT
SWI24-15-N-P5
SWI24-15-N-P5
