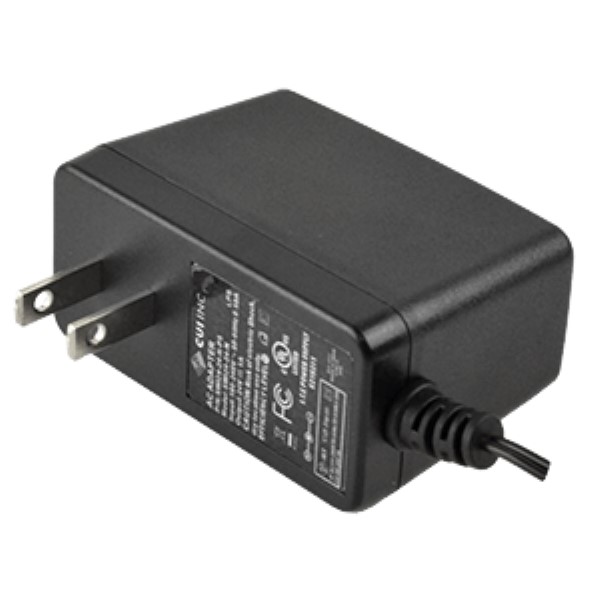

SWI24-15-N-P5 by cui inc.
Image is representational - see mfr. specs
DATA SHEET

SWI24-15-N-P5

CUI Inc.

AC/DC Adapter - Wall Mount - 24 Watts: 15V @ 1.6A - Lvl VI/T2 - NA Input Blades - Lvl VI .. see full description

RoHS Compliant
Box Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
SWI24-15-N-P5
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Package Type:
Box
PFC:
No
CoC Tier:
No
Short Circuit Protection:
Yes
Load Regulation:
5.00 %
Power Rating:
24 W
Grade:
Commercial
Maximum Input Current:
0.58 A
AC Input Current - Typical:
Not Spec'd
Special Features:
DoE Level VI Efficiency
Operating Temperature:
0 to 40 °C
Maximum Output Current:
1.6 A
Maximum Input Voltage:
264Vac
Ripple & Noise:
150 mV
AC Input Voltage:
90 to 264
Maximum DC Input Voltage:
Not App
Line Regulation:
5.00 %
Typical Hold-Up Time:
10ms(Min)
Thermal Protection:
No
Mounting Style:
External
Safety Approvals:
cUL, PSE, UL
Number of Outputs:
1
Input Frequency:
47 to 63 Hz
Type:
Regulated-Switching
Power:
24 W
Output Type:
Fixed
Output Connector Polarity:
Center Positive
Dimensions L x W x H(in):
2.84 x 1.34 x 2.01 in
Minimum Isolation Voltage:
3000Vac
MOPP:
Not App
Package Type:
Wall Plug
Output Current:
1.6 A
Dimension:
72 x 34 x 52 mm
Maximum AC Input Voltage:
264
Dimensions LxWxH:
2.835 x 1.339 x 2.0048 in
Minimum DC Input Voltage:
Not App
Output Cord Length:
1.5m (59.1in)
Efficiency:
Not Spec'd
Safety Class:
None
Over Voltage Protection:
Yes
Mounting:
External
Family:
SWI24-N
Minimum AC Input Voltage:
90
Output Connector Angle:
Straight
Minimum Load (Amps):
0
Input/Output Type:
AC/DC
Adapter Color:
Black
AC Input Current - Maximum:
0.58A
Input Voltage:
90 to 264Vac
Output Voltage:
15 VDC
DOE Efficiency Level:
VI
Overload Protection:
Yes
Power Indicator:
No
Output Connector Diameters:
2.1 x 5.5 mm
Minimum Input Voltage:
90Vac
Typical Inrush Current:
60A(Max) at 230Vac
Input Connector Type:
NA Blades (U.S. and Others)
Dimensions L x W x H:
72.0 x 34.0 x 52.0 mm
Style:
WallMount
Maximum Output Power:
24 W
DC Input Voltage:
Not App
Output Connector Type:
Barrel - Female
The SWI24-15-N-P5 is a high-quality, reliable switch-mode power supply module from CUI Inc. This compact and efficient module features a wide input voltage range of 85-264 VAC, making it suitable for a variety of applications. With a power rating of 24 watts and an output voltage of 15VDC, the SWI24-15-N-P5 is an ideal choice for powering a wide range of devices and equipment. Its compact size and robust design make it easy to integrate into your system, while its high efficiency and low standby power consumption help to reduce energy costs. Trust CUI Inc. to provide you with a dependable power supply solution for your project.
Search Keywords:
SWI2415NP5
IN STOCK: 0
Minimum Order Quantity:
5
Factory Lead-Time
21 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
5
$11.73
$58.65
25
$11.56
$289.00
50
$11.50
$575.00
100
$11.44
$1,144.00
300
$11.38
$3,414.00
500
$11.33
$5,665.00
1,000 +
$11.27
$11,270.00
Suppliers Standard Package
Please Note: Tariffs may apply for U.S. shipments
Product Guides
PDF 3D Model
PDF Datasheet
