EPSA050120U-P6P-SZ by cui inc.
Image is representational - see mfr. specs

EPSA050120U-P6P-SZ

CUI Inc.

AC/DC Adapter - Wall Mount - 6 Watts: 5V @ 1.2A - NA Blades - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
EPSA050120U-P6P-SZ
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Adapter Color:
Black
Output Connector Polarity:
Center Positive
Thermal Protection:
No
Power Indicator:
No
Package Type:
Wall Plug
Typical Inrush Current:
Not Spec'd
Ripple & Noise:
150 mV
Output Connector Type:
Barrel - Female
Output Type:
Fixed
Maximum Output Power:
6 W
Line Regulation:
3.00 %
Output Voltage:
5 VDC
Input Voltage:
90 to 264Vac
Dimension:
59.8 x 26.6 x 46.1 mm
Minimum Isolation Voltage:
4242Vdc/3000Vac
Minimum DC Input Voltage:
Not App
Style:
WallMount
Minimum Load (Amps):
0
Mounting:
External
Output Cord Length:
1.53m (60.3in)
Dimensions L x W x H(in):
2.36 x 1.05 x 1.82 in
AC Input Current - Maximum:
1.2A
Dimensions L x W x H:
59.8 x 26.6 x 46.1 mm
Minimum Input Voltage:
90Vac
AC Input Voltage:
90 to 264
Grade:
Commercial
PFC:
No
Minimum AC Input Voltage:
90
Maximum DC Input Voltage:
Not App
Output Connector Angle:
Straight
Maximum AC Input Voltage:
264
Maximum Input Current:
1.2 A
Output Connector Diameters:
2.5 x 5.5 mm
Operating Temperature:
0 to 40 °C
Short Circuit Protection:
Yes
Typical Hold-Up Time:
Not Spec'd
Input Frequency:
47 to 63 Hz
CoC Tier:
No
Input Connector Type:
NA Blades (U.S. and Others)
Power Rating:
6 W
Input/Output Type:
AC/DC
Safety Class:
None
Dimensions LxWxH:
2.36 x 1.05 x 1.82 in
Maximum Input Voltage:
264Vac
Overload Protection:
No
Type:
Regulated-Switching
Mounting Style:
External
Number of Outputs:
1
Safety Approvals:
cUL, PSE, UL
DOE Efficiency Level:
V
DC Input Voltage:
Not App
Power:
6 W
Efficiency:
Not Spec'd
Load Regulation:
5.00 %
AC Input Current - Typical:
Not Spec'd
Family:
EPSA-6W
MOPP:
Not App
Over Voltage Protection:
Yes
Maximum Output Current:
1.2 A
Output Current:
1.2 A
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Wall Mount - 6 Watts: 5V @ 1.2A - NA Blades - Lvl V
Search Keywords:
EPSA050120UP6PSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

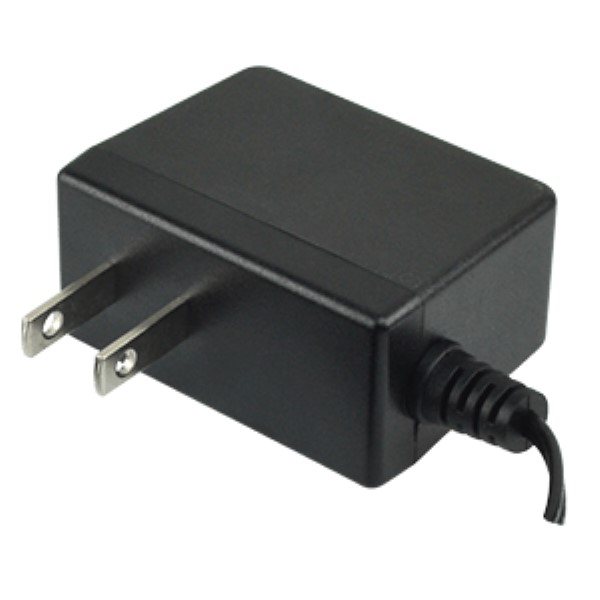

RECOMMENDED REPLACEMENT
SWI6-5-N-P6
