DATA SHEET

SWI6-5-N-P6

CUI Inc.

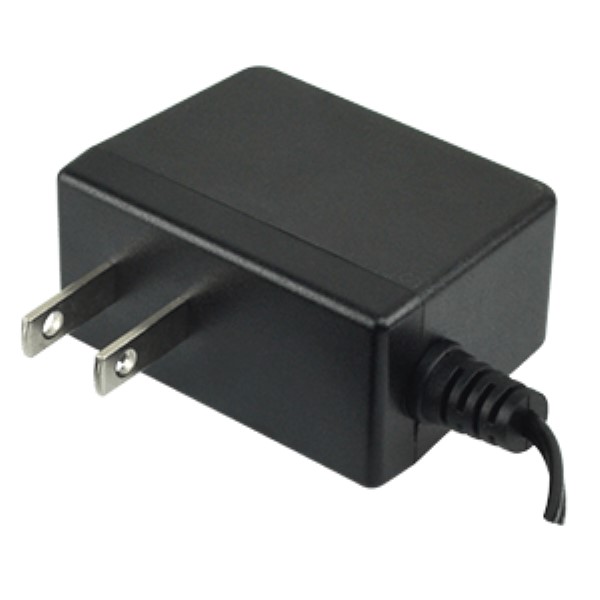

AC/DC Adapter - Wall Mount - 7.5 Watts: 5V @ 1.5A - NA Input Blades - Lvl VI

RoHS Compliant

Box Packaging

Accessories

Certificate of Compliance Guarantee

SPECS
FULL DESCRIPTION

Product Attribute

Attribute Value Select Attribute

Products found: 0Show Similar

Supplier:

CUI Inc.

Part No:

SWI6-5-N-P6

RoHS:

Yes

HTS:

8504409510

COO:

ECCN:

EAR99

Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

100

Package Type:

Box

Thermal Protection:

Output Connector Polarity:

Center Positive

Dimensions L x W x H:

56.0 x 28.0 x 42.0 mm

Output Cord Length:

1.5m (59.1in)

Dimensions L x W x H(in):

2.21 x 1.11 x 1.66 in

Package Type:

Wall Plug

Maximum Output Power:

7.5 W

Over Voltage Protection:

Yes

AC Input Voltage:

90 to 264

Minimum Load (Amps):

DOE Efficiency Level:

Typical Inrush Current:

60A(Max) at 240Vac

Type:

Regulated-Switching

Maximum Input Current:

0.19 A

Maximum DC Input Voltage:

Not App

Output Connector Angle:

Straight

Input Voltage:

90 to 264Vac

Output Type:

Fixed

AC Input Current - Typical:

Not Spec'd

Mounting Style:

External

Grade:

Commercial

Typical Hold-Up Time:

10ms(Min)

Output Current:

1.5 A

Special Features:

DoE Level VI Efficiency

Output Connector Type:

Barrel - Female

CoC Tier:

Safety Approvals:

cUL, PSE, UL

Power Rating:

7.5 W

Operating Temperature:

0 to 40 °C

Line Regulation:

5.00 %

Load Regulation:

5.00 %

Number of Outputs:

Efficiency:

Not Spec'd

Adapter Color:

Black

Input Connector Type:

NA Blades (U.S. and Others)

Overload Protection:

Yes

AC Input Current - Maximum:

0.19A

Minimum Input Voltage:

90Vac

Dimensions LxWxH:

2.205 x 1.103 x 1.654 in

Power:

7.5 W

MOPP:

Not App

Short Circuit Protection:

Yes

Maximum Input Voltage:

264Vac

Input Frequency:

47 to 63 Hz

Maximum AC Input Voltage:

264

Input/Output Type:

AC/DC

Power Indicator:

DC Input Voltage:

Not App

Ripple & Noise:

100 mV

Mounting:

External

PFC:

Family:

SWI6-N

Minimum DC Input Voltage:

Not App

Safety Class:

None

Minimum AC Input Voltage:

Output Voltage:

5 VDC

Output Connector Diameters:

2.5 x 5.5 mm

Dimension:

56 x 28 x42 mm

Style:

WallMount

Minimum Isolation Voltage:

3000Vac

Maximum Output Current:

1.5 A

AC/DC Adapter - Wall Mount - 7.5 Watts: 5V @ 1.5A - NA Input Blades - Lvl VI
