EPS060100-P7P by cui inc.
Image is representational - see mfr. specs

EPS060100-P7P

CUI Inc.

AC/DC Adapter - Wall Mount - 6 Watts: 6V @ 1A - NA Blades - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
EPS060100-P7P
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
AC Input Current - Typical:
Not Spec'd
PFC:
No
AC Input Current - Maximum:
.015A
Input Voltage:
100 to 130Vac
Dimensions L x W x H:
62.4 x 26.8 x 42.0 mm
Dimension:
62.33 x 26.8 x 42 mm
Load Regulation:
5.00 %
Minimum AC Input Voltage:
100
Input Frequency:
47 to 63 Hz
Grade:
Commercial
Power Indicator:
No
Maximum AC Input Voltage:
130
Ripple & Noise:
100 mV
Output Voltage:
6 VDC
Efficiency:
Not Spec'd
Input Connector Type:
NA Blades (U.S. and Others)
Package Type:
Wall Plug
Over Voltage Protection:
Yes
Output Type:
Fixed
Line Regulation:
1.00 %
Safety Class:
None
Minimum Isolation Voltage:
4242Vdc/3000Vac
Minimum Input Voltage:
110 Vac
Output Cord Length:
1.83m (72.1in)
Minimum DC Input Voltage:
Not App
CoC Tier:
No
Typical Inrush Current:
40A(Max) at 132Vac
Safety Approvals:
cUL, UL
Mounting Style:
External
Minimum Load (Amps):
0
Mounting:
External
Overload Protection:
No
Adapter Color:
Black
Maximum Output Current:
1.0 A
Output Connector Polarity:
Center Positive
Power:
6 W
Power Rating:
6 W
Output Connector Angle:
Straight
Thermal Protection:
No
MOPP:
Not App
Dimensions L x W x H(in):
2.46 x 1.06 x 1.66 in
Short Circuit Protection:
Yes
Maximum Input Current:
Not Spec'd
Input/Output Type:
AC/DC
Operating Temperature:
0 to 40 °C
Type:
Regulated-Switching
Maximum Output Power:
6 W
AC Input Voltage:
100 to 130
Maximum Input Voltage:
130Vac
DOE Efficiency Level:
V
Output Current:
1.0 A
Number of Outputs:
1
Output Connector Diameters:
1.35.0 x 3.5 mm
Maximum DC Input Voltage:
Not App
Typical Hold-Up Time:
10 ms
Dimensions LxWxH:
2.46 x 1.06 x1.66 in
Family:
EPS-6W
Output Connector Type:
Barrel - Female
Style:
WallMount
DC Input Voltage:
Not App
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Wall Mount - 6 Watts: 6V @ 1A - NA Blades - Lvl V
Search Keywords:
EPS060100P7P
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

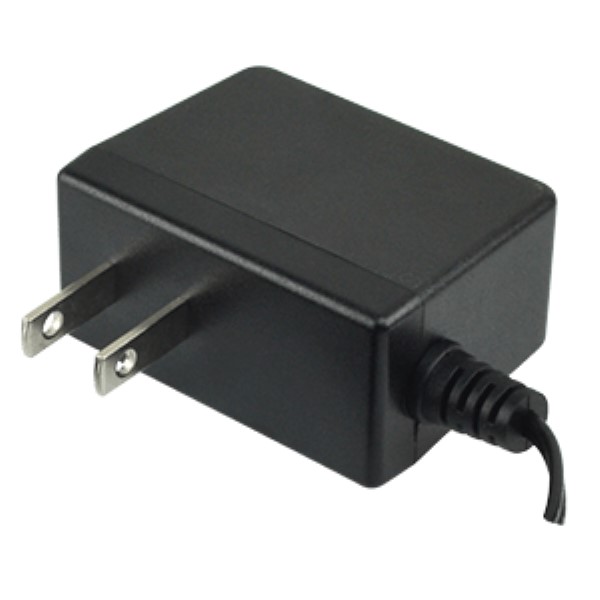

RECOMMENDED REPLACEMENT
SWI6-5.9-N-P7
SWI6-5.9-N-P7
