Image is representational - see mfr. specs

DATA SHEET

SWI6-5.9-N-P7

CUI Inc.

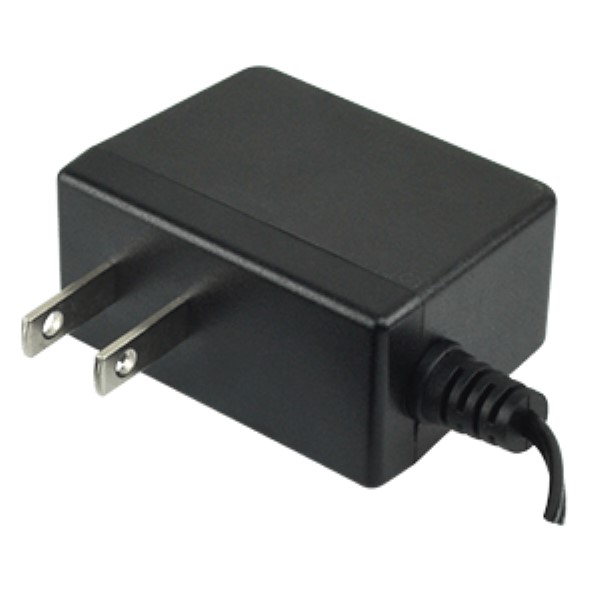

AC/DC Adapter - Wall Mount - 7.08 Watts - 5.9V @ 1.2A - NA Input Blades - Lvl VI

RoHS Compliant

Box Packaging

Accessories

Certificate of Compliance Guarantee

SPECS
FULL DESCRIPTION

Product Attribute

Attribute Value Select Attribute

Products found: 0Show Similar

Supplier:

CUI Inc.

Part No:

SWI6-5.9-N-P7

RoHS:

Yes

HTS:

8504409510

COO:

ECCN:

EAR99

Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.

100

Package Type:

Box

Maximum Input Voltage:

264Vac

Input/Output Type:

AC/DC

Minimum DC Input Voltage:

Not App

Output Voltage:

5.9 Vdc

Dimensions LxWxH:

2.205 x 1.103 x 1.654 in

Style:

WallMount

Safety Approvals:

cUL, PSE, UL

Number of Outputs:

Output Cord Length:

1.5m (59.1in)

Output Current:

1.2 A

CoC Tier:

Power:

7.08 W

Short Circuit Protection:

Yes

Ripple & Noise:

100 mV

PFC:

Input Frequency:

47 to 63 Hz

AC Input Current - Maximum:

0.19A

Special Features:

DoE Level VI Efficiency

Dimension:

56 x 28 x42 mm

Maximum Output Current:

1.2 A

Adapter Color:

Black

Thermal Protection:

Family:

SWI6-N

Input Voltage:

90 to 264Vac

Minimum Input Voltage:

90Vac

Dimensions L x W x H(in):

2.21 x 1.11 x 1.66 in

AC Input Voltage:

90 to 264

Dimensions L x W x H:

56.0 x 28.0 x 42.0 mm

Mounting:

External

Output Connector Polarity:

Center Positive

Operating Temperature:

0 to 40 °C

Type:

Regulated-Switching

Output Connector Diameters:

1.35.0 x 3.5 mm

Mounting Style:

External

Typical Hold-Up Time:

10ms(Min)

Output Connector Type:

Barrel - Female

Input Connector Type:

NA Blades (U.S. and Others)

Grade:

Commercial

Maximum Input Current:

0.19 A

Overload Protection:

Yes

Power Indicator:

AC Input Current - Typical:

Not Spec'd

MOPP:

Not App

DOE Efficiency Level:

Output Type:

Fixed

Maximum DC Input Voltage:

Not App

Over Voltage Protection:

Yes

Line Regulation:

5.00 %

Maximum AC Input Voltage:

264

Minimum Isolation Voltage:

3000Vac

Safety Class:

None

Output Connector Angle:

Straight

Minimum Load (Amps):

Typical Inrush Current:

60A(Max) at 240Vac

Minimum AC Input Voltage:

Package Type:

Wall Plug

DC Input Voltage:

Not App

Efficiency:

Not Spec'd

Power Rating:

7.08 W

Load Regulation:

5.00 %

Maximum Output Power:

7.08 W

AC/DC Adapter - Wall Mount - 7.08 Watts - 5.9V @ 1.2A - NA Input Blades - Lvl VI

Product Highlights:

Potential Applications:

Search Keywords:

SWI659NP7

This product is not in stock and cannot be back-ordered

This product is discontinued, but still in stock

This product has been discontinued by the supplier

Different packaging options available. See Alternatives

Possible Replacement options available. See Alternatives

This product is NOT RoHS Compliant. See Alternatives

End of Life: Final orders must be placed by

IN STOCK: 0

BONDED Quantity:

Manufacturer Stock:

0 can ship

On Order:

Stock lot only:

Minimum Order Quantity:

MOQ for out of Stock Qty:

Multiple:

Factory Lead-Time

21 Weeks can ship

This product is no longer being manufactured but there may be alternatives. We can help you, Contact Us.

VIEW PRODUCT

Min quantity should be greater than or equal () in order to activate the custom price. Otherwise you will get the normal price.

Price (USD)

Quantity

Unit Price

Ext. Price

$11.24

$56.20

$10.19

$254.75

$9.73

$486.50

100

$9.45

$945.00

300

$8.93

$2,679.00

500

$8.69

$4,345.00

1,000 +

$8.56

$8,560.00

Suppliers Standard Package

Standard Packaging

Standard packaging is the minimum package size Eccoconnectors.com receives from the supplier. The minimum order quantity might be less than the supplier's standard packaging. The type of packaging (such as reel, tube, tray) may be subject to change when the product is divided into smaller quantities.

Click for Quote

Please Note: Tariffs may apply for U.S. shipments

Schedule Order

You may schedule release quantities and ship dates in the shopping cart.

Product Guides

3D Model

Datasheet
