EMSA240167-P5P-SZ by cui inc.
Image is representational - see mfr. specs

EMSA240167-P5P-SZ

CUI Inc.

AC/DC Adapter - Wall Mount - 40 Watts: 24V @ 1.67A - AU_CN_EU_NA_UK Input Blade Kit - Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
EMSA240167-P5P-SZ
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Short Circuit Protection:
Yes
Output Voltage:
24 VDC
CoC Tier:
No
Efficiency:
Not Spec'd
Power:
40 W
Dimensions L x W x H:
74.0 x 43.5 x 35.3 mm
Operating Temperature:
0 to 40 °C
Ripple & Noise:
300 mV
Load Regulation:
5.00 %
Grade:
Commercial
Minimum Isolation Voltage:
4242Vdc/3000Vac
DOE Efficiency Level:
V
AC Input Current - Maximum:
1.0A
Input/Output Type:
AC/DC
DC Input Voltage:
Not App
Maximum Output Power:
40 W
Safety Approvals:
CCC, CE, cUL, GS, PSE, RCM, TUV, UL
PFC:
No
Output Type:
Fixed
Maximum AC Input Voltage:
264
AC Input Current - Typical:
Not Spec'd
Maximum Input Voltage:
264Vac
Maximum DC Input Voltage:
Not App
Output Connector Type:
Barrel - Female
Typical Inrush Current:
Not Spec'd
Thermal Protection:
No
Style:
Interchangeable WallMount
Output Connector Polarity:
Center Positive
Dimensions LxWxH:
2.92x 1.72 x 1.39 in
Maximum Output Current:
1.67 A
Minimum AC Input Voltage:
90
AC Input Voltage:
90 to 264
Output Cord Length:
1.53m (60.3in)
Number of Outputs:
1
Package Type:
Wall Plug
Typical Hold-Up Time:
Not Spec'd
Input Connector Type:
Interchangeable-Kit
MOPP:
Not App
Mounting Style:
External
Maximum Input Current:
Not Spec'd
Type:
Regulated-Switching
Dimension:
74 x 43.5 x 35.3 mm
Safety Class:
None
Power Indicator:
No
Output Current:
1.67 A
Over Voltage Protection:
Yes
Power Rating:
40 W
Mounting:
External
Line Regulation:
1.00 %
Minimum DC Input Voltage:
Not App
Adapter Color:
Black
Dimensions L x W x H(in):
2.92 x 1.72 x 1.39 in
Minimum Load (Amps):
0
Output Connector Angle:
Straight
Minimum Input Voltage:
90Vac
Family:
EMSA-40W
Input Voltage:
90 to 264Vac
Output Connector Diameters:
2.1 x 5.5 mm
Overload Protection:
No
Input Frequency:
47 to 63 Hz
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Wall Mount - 40 Watts: 24V @ 1.67A - AU_CN_EU_NA_UK Input Blade Kit - Lvl V
Search Keywords:
EMSA240167P5PSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

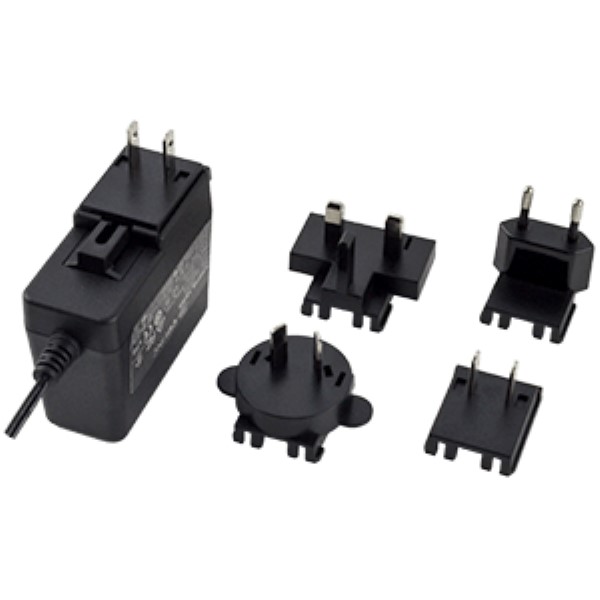

RECOMMENDED REPLACEMENT
