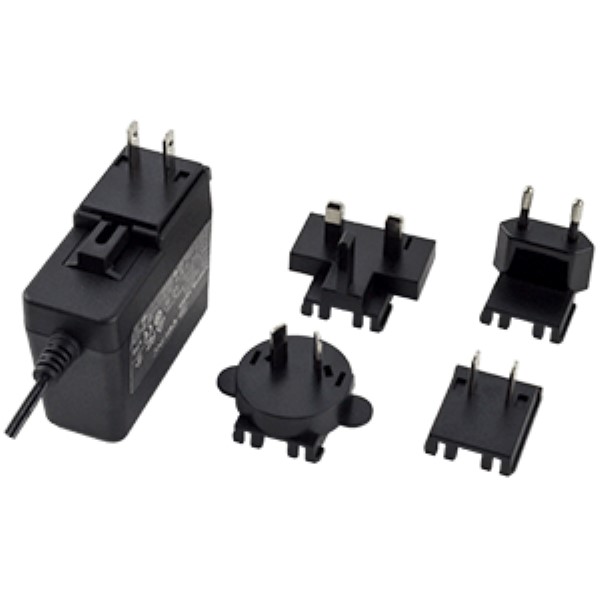

SMI36-24-V-P5 by cui inc.
Image is representational - see mfr. specs
DATA SHEET

SMI36-24-V-P5

CUI Inc.

AC/DC Adapter - Wall Mount - 36 Watts: 24V @ 1.5A - AU_CN_EU_NA_UK Input Blade Kit - Lvl VI/T2 .. see full description

RoHS Compliant
Box Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
SMI36-24-V-P5
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
60
Package Type:
Box
Number of Outputs:
1
Short Circuit Protection:
Yes
Power Rating:
36 W
Efficiency:
Not Spec'd
CoC Tier:
2
Load Regulation:
5.00 %
Minimum Isolation Voltage:
3000Vac
Grade:
Commercial
MOPP:
Not App
Maximum Input Voltage:
264Vac
Input/Output Type:
AC/DC
DC Input Voltage:
Not App
Dimensions L x W x H(in):
3.10 x 1.39 x 2.60 in
Minimum AC Input Voltage:
90
Dimension:
78.5 x 35.5 x 66 mm
AC Input Current - Typical:
Not Spec'd
Typical Inrush Current:
70A(Max) at 230Vac
Type:
Regulated-Switching
Maximum Output Current:
1.5 A
Maximum Input Current:
Not Spec'd
Minimum DC Input Voltage:
Not App
Ripple & Noise:
240 mV
Over Voltage Protection:
Yes
Output Voltage:
24 VDC
PFC:
No
AC Input Current - Maximum:
0.58A
Maximum AC Input Voltage:
264
Safety Approvals:
CCC, CE, cUL, PSE, RCM, UL
Input Connector Type:
Interchangeable-Kit
Input Voltage:
90 to 264Vac
Output Current:
1.5 A
Output Type:
Fixed
Input Frequency:
47 to 63 Hz
Minimum Load (Amps):
0
Output Connector Diameters:
2.1 x 5.5 mm
Typical Hold-Up Time:
10ms(Min)
Output Connector Angle:
Straight
Dimensions L x W x H:
78.5 x 35.5 x 66.0 mm
Safety Class:
None
Family:
SMI36
Line Regulation:
5.00 %
AC Input Voltage:
90 to 264
Output Cord Length:
1.5m (59.1in)
Minimum Input Voltage:
90Vac
Mounting Style:
External
Maximum Output Power:
36 W
Adapter Color:
Black
Package Type:
Wall Plug
Output Connector Polarity:
Center Positive
Special Features:
CoC Tier 2 Compliant, DoE Level VI Efficiency
Power:
36 W
Output Connector Type:
Barrel - Female
Operating Temperature:
0 to 40 °C
Mounting:
External
Power Indicator:
No
Style:
Interchangeable WallMount
Thermal Protection:
No
DOE Efficiency Level:
VI
Overload Protection:
Yes
Maximum DC Input Voltage:
Not App
Dimensions LxWxH:
3.091 x 1.39 x 2.598 in
The CUI Inc SMI36-24-V-P5 is a reliable and versatile AC/DC Adapter designed for wall mount applications. With a power rating of 36 Watts, this adapter provides a stable output of 24V @ 1.5A, making it ideal for a wide range of power-hungry devices. Equipped with an AU_CN_EU_NA_UK Input Blade Kit, this adapter can be easily used in multiple countries without the need for additional converters. Its Level VI/T2 efficiency rating ensures superior energy efficiency and helps conserve power.Whether you require a power source for your industrial equipment, consumer electronics, or any other application, the CUI Inc SMI36-24-V-P5 AC/DC Adapter is a dependable and efficient choice.
Search Keywords:
SMI3624VP5
IN STOCK: 0
Factory Lead-Time
21 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
1
$26.55
$26.55
10
$23.95
$239.50
25
$22.66
$566.50
60
$21.67
$1,300.20
120
$21.00
$2,520.00
300
$20.05
$6,015.00
540 +
$19.95
$10,773.00
Suppliers Standard Package
