EMSA120150K-P5P-SZ by cui inc.
Image is representational - see mfr. specs

EMSA120150K-P5P-SZ

CUI Inc.

AC/DC Adapter - Wall Mount - 18 Watts: 12V @ 1.5A ++ NO AC INPUT BLADES ++ Lvl V

RoHS Compliant
Packaging
Accessories
Discontinued & Replaced
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
EMSA120150K-P5P-SZ
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
1
Minimum Input Voltage:
90Vac
Power:
18 W
Typical Inrush Current:
40/80A(Max) at 115/230Vac
Power Indicator:
No
Output Connector Diameters:
2.1 x 5.5 mm
Over Voltage Protection:
Yes
Output Type:
Fixed
Output Connector Angle:
Straight
Output Voltage:
12 VDC
Maximum DC Input Voltage:
Not App
Typical Hold-Up Time:
Not Spec'd
Overload Protection:
No
Output Connector Polarity:
Center Positive
Maximum AC Input Voltage:
264
Mounting Style:
External
Power Rating:
18 W
Maximum Output Power:
18 W
Maximum Output Current:
1.5 A
Maximum Input Current:
Not Spec'd
Adapter Color:
Black
Thermal Protection:
No
Minimum DC Input Voltage:
Not App
MOPP:
Not App
Minimum AC Input Voltage:
90
Number of Outputs:
1
Load Regulation:
5.00 %
Dimensions L x W x H:
74.0 x 43.5 x 35.3 mm
DC Input Voltage:
Not App
Minimum Load (Amps):
0
Dimensions LxWxH:
2.92 x 1.72 x 1.39 in
Efficiency:
Not Spec'd
Dimension:
74 x 43.5 x 35.3 mm
CoC Tier:
No
AC Input Current - Maximum:
0.6A
Ripple & Noise:
150 mV
Style:
Interchangeable WallMount
AC Input Current - Typical:
Not Spec'd
Input Voltage:
90 to 264Vac
Type:
Regulated-Switching
Output Connector Type:
Barrel - Female
Line Regulation:
1.00 %
Dimensions L x W x H(in):
2.92 x 1.72 x 1.39 in
Input/Output Type:
AC/DC
Mounting:
External
Grade:
Commercial
Operating Temperature:
0 to 40 °C
AC Input Voltage:
90 to 264
PFC:
No
DOE Efficiency Level:
V
Short Circuit Protection:
Yes
Input Connector Type:
Interchangeable-Order Separately
Safety Class:
None
Family:
EMSA-18W
Safety Approvals:
CCC, CE, cUL, GS, PSE, RCM, TUV, UL
Input Frequency:
47 to 63 Hz
Minimum Isolation Voltage:
4242Vdc/3000Vac
Maximum Input Voltage:
264Vac
Output Cord Length:
1.53m (60.3in)
Package Type:
Wall Plug
Output Current:
1.5 A
Life Cycle:
Discontinued & Replaced
AC/DC Adapter - Wall Mount - 18 Watts: 12V @ 1.5A ++ NO AC INPUT BLADES ++ Lvl V
Search Keywords:
EMSA120150KP5PSZ
  This product is not in stock and cannot be back-ordered
Please Note: Tariffs may apply for U.S. shipments

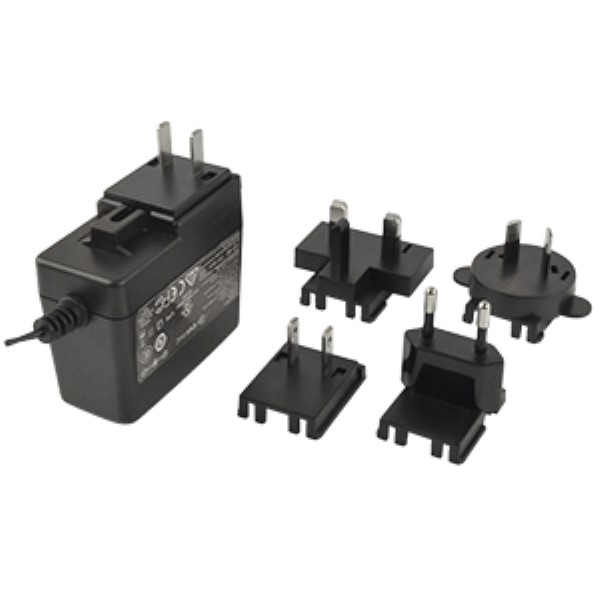

RECOMMENDED REPLACEMENT
SMI18-12-K-P5
SMI18-12-K-P5
VIEW PRODUCT
