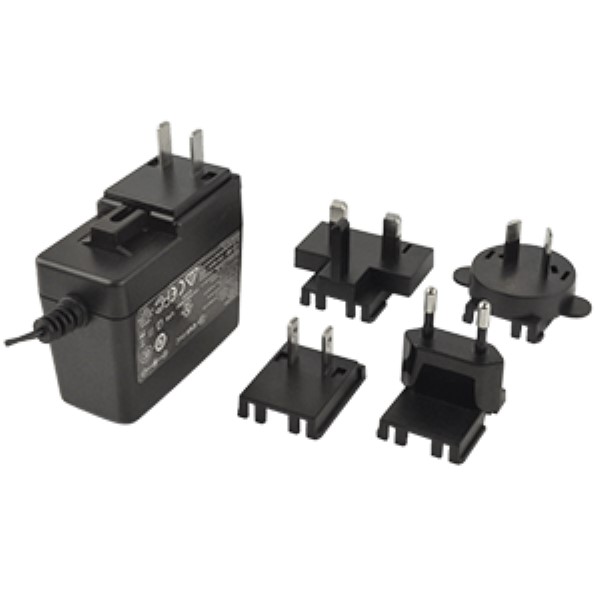

SMI18-12-K-P5 by cui inc.
Image is representational - see mfr. specs
DATA SHEET

SMI18-12-K-P5

CUI Inc.

AC/DC Adapter - Wall Mount - 19.2 Watts: 12V @ 1.6A ++ NO AC INPUT BLADES ++ Lvl VI/T2

RoHS Compliant
Box Packaging
Accessories
Accessories
This product is backed by Ecco Electronics' Certificate of Compliance Guarantee. Rest assured you will receive the Manufacturer's Certificate of Compliance with your order. Certificate of Compliance Guarantee
Product Attribute
Attribute Value Select Attribute
Products found: 0
Supplier:
CUI Inc.
Part No:
SMI18-12-K-P5
RoHS:
Yes
HTS:
8504409510
COO:
CN
ECCN:
EAR99
Supplier Standard Pack This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
100
Package Type:
Box
Grade:
Commercial
Input Connector Type:
Interchangeable-Order Separately
Input/Output Type:
AC/DC
Overload Protection:
Yes
Output Voltage:
12 VDC
DC Input Voltage:
Not App
Number of Outputs:
1
Safety Approvals:
CCC, CE, cUL, PSE, RCM, UL
Efficiency:
Not Spec'd
Output Current:
1.6 A
Minimum DC Input Voltage:
Not App
CoC Tier:
2
MOPP:
Not App
Load Regulation:
5.00 %
Maximum Output Current:
1.6 A
Style:
Interchangeable WallMount
Package Type:
Wall Plug
Typical Hold-Up Time:
10ms(Min)
Short Circuit Protection:
Yes
Thermal Protection:
No
Power Rating:
19 W
Dimensions L x W x H:
75.0 x 35.8 x 65.6 mm
AC Input Current - Typical:
Not Spec'd
Ripple & Noise:
120 mV
Output Connector Polarity:
Center Positive
Mounting Style:
External
Dimensions L x W x H(in):
2.97 x 1.41 x 2.59 in
Output Connector Angle:
Straight
Output Type:
Fixed
Minimum Load (Amps):
0
Operating Temperature:
0 to 40 °C
DOE Efficiency Level:
VI
Maximum Input Current:
Not Spec'd
PFC:
No
Safety Class:
None
AC Input Current - Maximum:
0.48A
Input Frequency:
47 to 63 Hz
Maximum Output Power:
19 W
Type:
Regulated-Switching
Maximum DC Input Voltage:
Not App
Over Voltage Protection:
Yes
Minimum AC Input Voltage:
90
Mounting:
External
Power:
19 W
Maximum AC Input Voltage:
264
Line Regulation:
5.00 %
Typical Inrush Current:
50/60A(Max) at 100/230Vac
Power Indicator:
No
Dimensions LxWxH:
2.953 x 1.409 x 2.583 in
Minimum Isolation Voltage:
3000Vac
Family:
SMI18
Output Cord Length:
1.5m (59.1in)
Dimension:
75 x 35.8 x 65.6 mm
Output Connector Type:
Barrel - Female
Input Voltage:
90 to 264Vac
Output Connector Diameters:
2.1 x 5.5 mm
AC Input Voltage:
90 to 264
Minimum Input Voltage:
90Vac
Special Features:
CoC Tier 2 Compliant, DoE Level VI Efficiency
Maximum Input Voltage:
264Vac
Adapter Color:
Black
AC/DC Adapter - Wall Mount - 19.2 Watts: 12V @ 1.6A ++ NO AC INPUT BLADES ++ Lvl VI/T2
Search Keywords:
SMI1812KP5
IN STOCK: 0
MOQ for out of Stock Qty:
150
Factory Lead-Time
21 Weeks
Price (USD)
Quantity
Unit Price
Ext. Price
150
$32.44
$4,866.00
300
$17.12
$5,136.00
450
$11.77
$5,296.50
600 +
$11.54
$6,924.00
Please Note: Tariffs may apply for U.S. shipments
Product Guides
PDF 3D Model
PDF Datasheet
